5 CONTROLS
18°
MAX
15°
MAX
5
5
TST
TST
1234.5

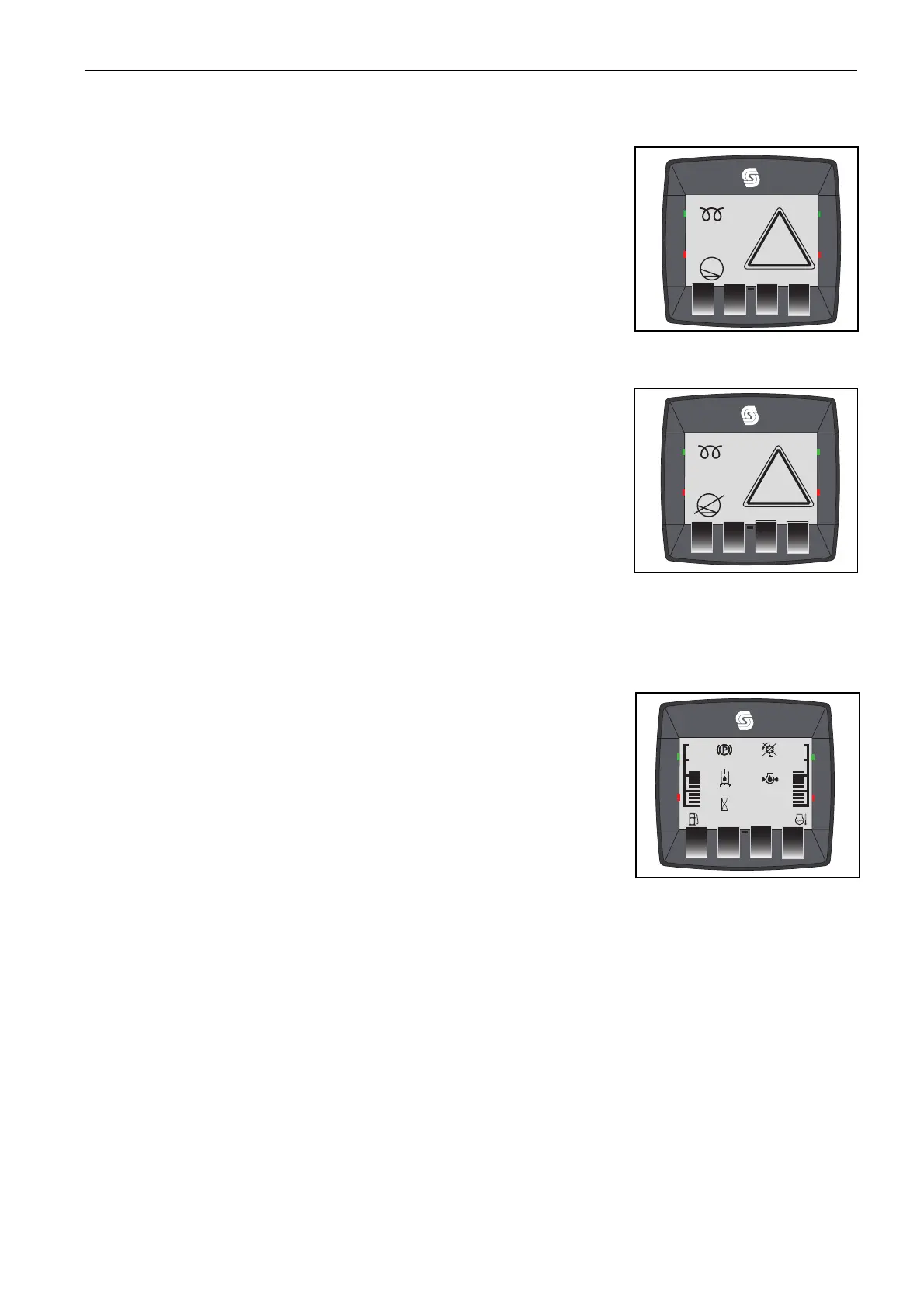

5.2.H.4 SLOPE WARNING SCREEN _________________________________________
“TST™” (Tilt Sensor Technology) machines have this display. The maximum
safe slope is shown. The glow plug symbol and counter are shown to indicate
the time before the engine will start.
Those machines not fitted with TST™ have this display. The TST™ tilt icon is
shown with a bar, to indicate that TST™ is not in operation. The glow plug
symbol and counter are shown to indicate the time before the engine will start.
5.2.H.5 MAIN SCREEN FOR OPERATION ____________________________________
The main screen will give the operator all the information needed to operate
the machine.
When an error occurs, the display will return to this screen.
When a button is pressed, a bar will become visible at the bottom of the screen
to give additional options.
Button 1: Screen Brightness and Contrast
Button 2: Up Arrow (Changes time, from hour meter to time of day)
Button 3: Down Arrow (Changes time, from time of day to hour meter)
Button 4: Will enter the menu structure.
If no button is pushed, the button bar will go from view after four seconds.
