en-33
5 CONTROLS
12V
12V
10A

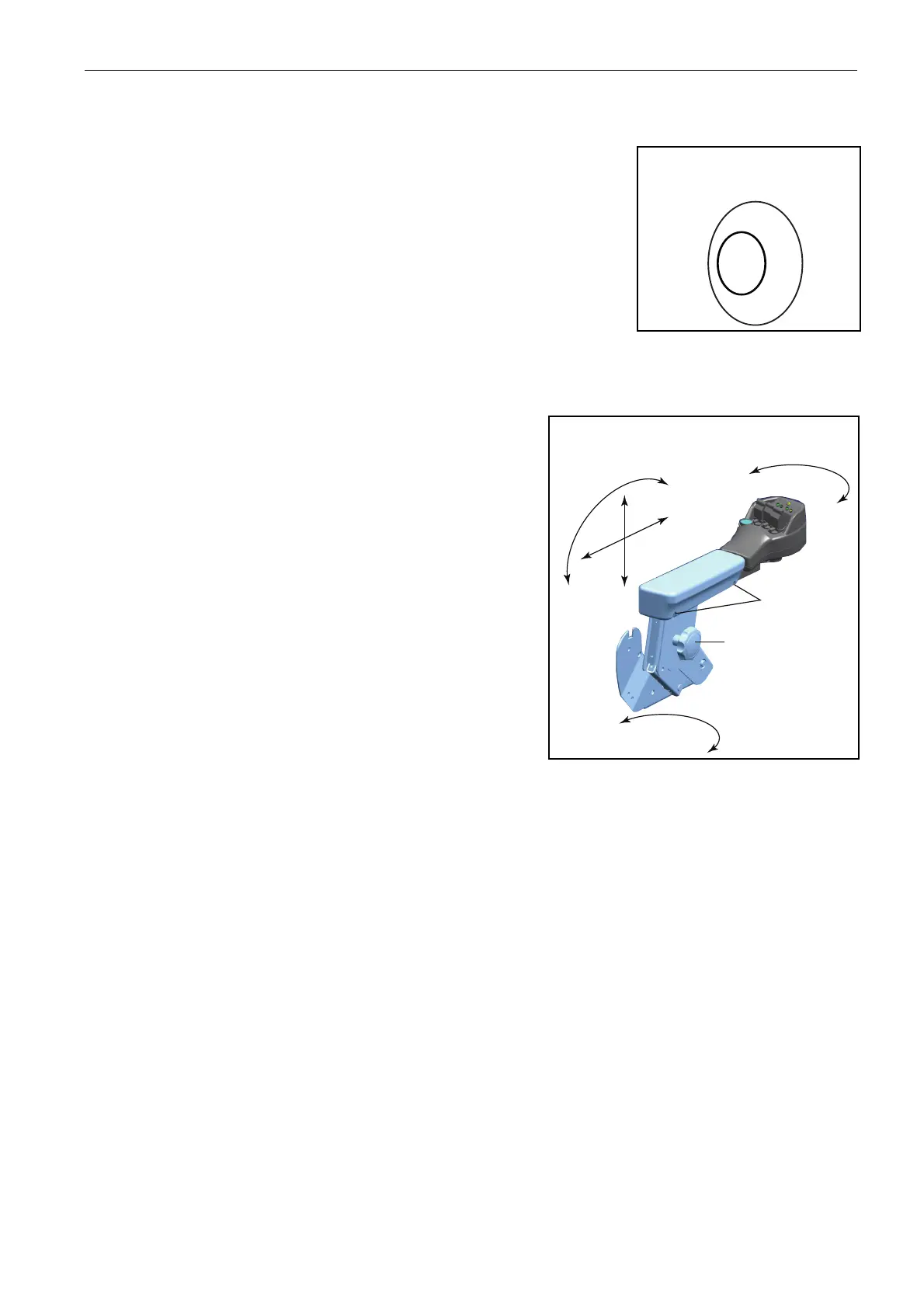

5.6 POWER OUTLET ____________________________________________________
The Auxiliary Power Outlet is set on the control panel by the ignition switch.
Use to charge compatible mobile devices and accessories.
A Automotive 12 Volt, 10-Amp Power Outlet
5.7 SEAT RIGHT-SIDE ARMREST AND POD_________________________________
The right-side armrest of the seat carries the control pod.
The Control Pod position is adjustable, as shown, to give a good
position for the operation of the controls.
a Release the hand wheel (A).
b To lift or lower the armrest, use two hands. The armrest will
move in an arc (X).
c When the correct position is reached, tighten the hand
wheel (A).
To rotate the pod in the horizontal plane, (Y).
d Loosen the screws (B) that hold the pod to the armrest
extension.
e Swivel pod to correct position.
f Tighten the screws (B).
To rotate the armrest extension in the horizontal plane, (Z).
g Remove the four screws that hold the armrest cushion.
h Loosen the three locknut's fitted to studs.
j Rotate the armrest extension to the correct position.
k Tighten the three locknut's.
l Replace the armrest cushion with the four screws.
