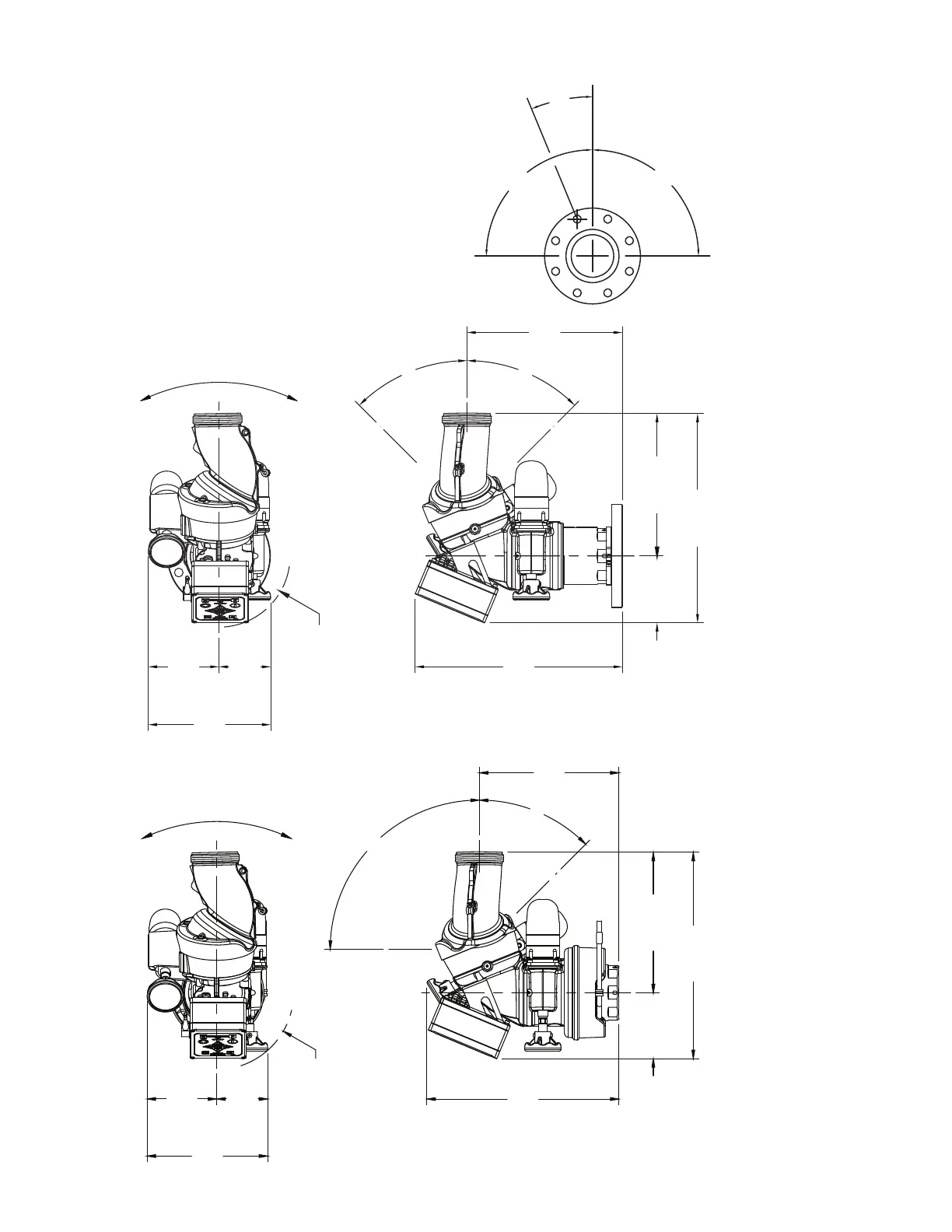

3.4 OVERALL DIMENSIONS
FLANGE BOLT HOLE ORIENTATION
90° LEFT 90° RIGHT
22.5° REF
5.8"
[147mm]
12.3"
[312mm]
13.4"
[341mm]
45°
18.1"
[459mm]
17.9"
[454mm]
4.5"
[114mm]
6.1"
[155mm]
0
.6"
6
9mm]
90°
LEFT
90°
RIGHT
R6.2"
[R156mm]
SWING
RADIUS
45°
Monsoon RC For Platform Dimensions
Figure 3.4D
90°
45°
12.2"
[311mm]
12.3"
[312mm]
5.8"
[147mm]
18.1"
[459mm]
16.8"
[428mm]
4.5"
[114mm]
6.1"
[155mm]
0.6"
6
9mm]
225°
LEFT
225°
RIGHT
R6.7"
[R171mm]
SWING
RADIUS
Monsoon RC Dimensions
Figure 3.4C
