TFT Monsoon Series User Manual

©Copyright Task Force Tips LLC 2004-2018 LIY-200 October 11, 2018 Rev18
16
4.2.4 ELEVATION TRAVEL STOPS
The range of elevation travel for the Monsoon Monitor is 90 degrees above horizontal to 45 degrees below zero. The elevation range
may be limited by installing the supplied stop bolts at the locations shown is fi gures 4.2.3A and 4.2.3B. Consult factory for other
ranges. The fi gures include installation notes.

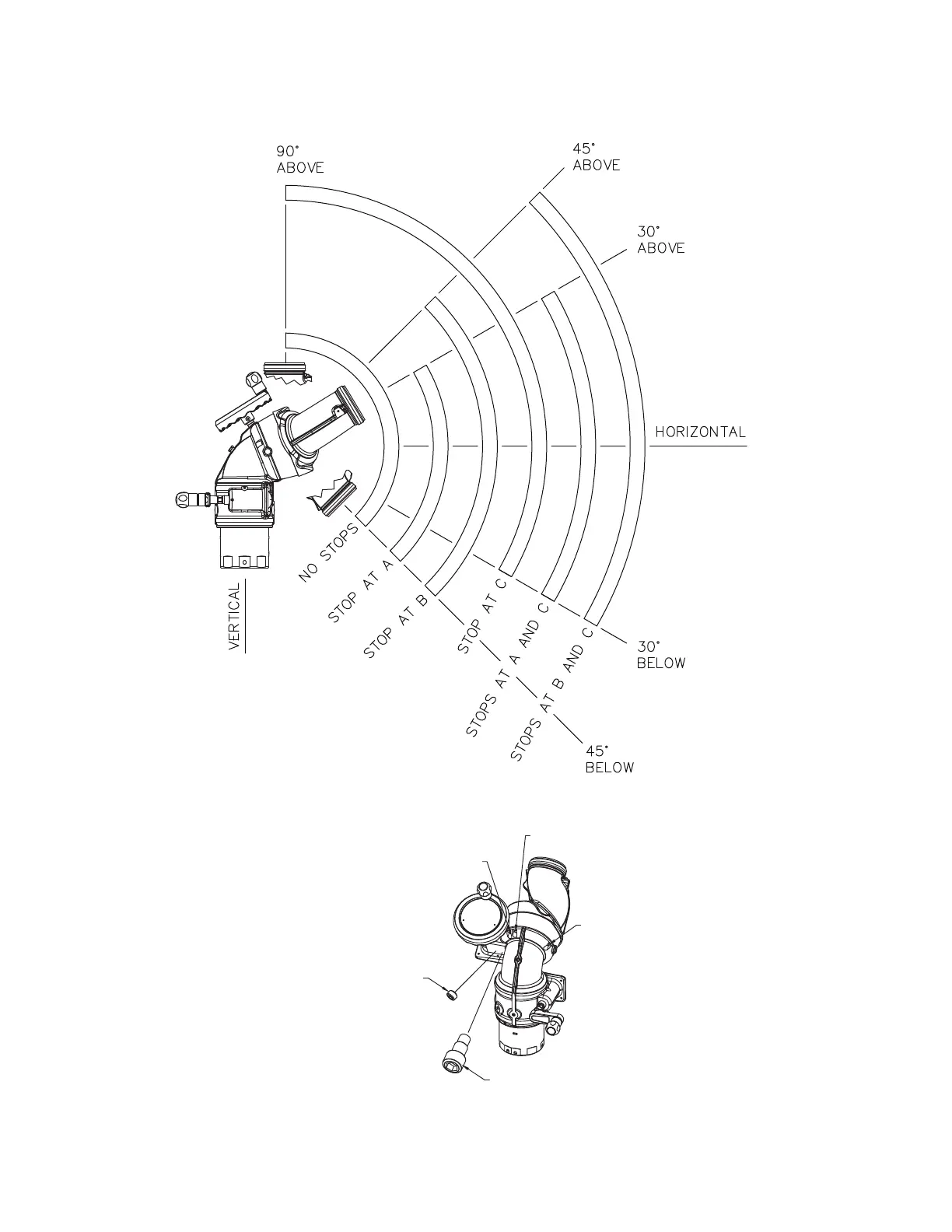

Fig 4.2.3A
Elevation Travel Limits
Remove Set Screw and install Stop Bolt
to obtain desired travel limits.
Elevation travel with no Stop Bolts is
90° above and 45° below zero.
(C) 30° BELOW
HORIZTONAL
STOP BOLT
#Y4145
SET SCREW
#VT37-24SS250
(A) 30° ABOVE
HORIZTONAL
(B) 45° ABOVE
HORIZTONAL
Fig 4.2.3B
Elevation Travel Stop Locations
