©Copyright Task Force Tips LLC 2004-2018 LIY-200 October 11, 2018 Rev18
13
4.2 INLET MOUNTING AND TRAVEL RANGES

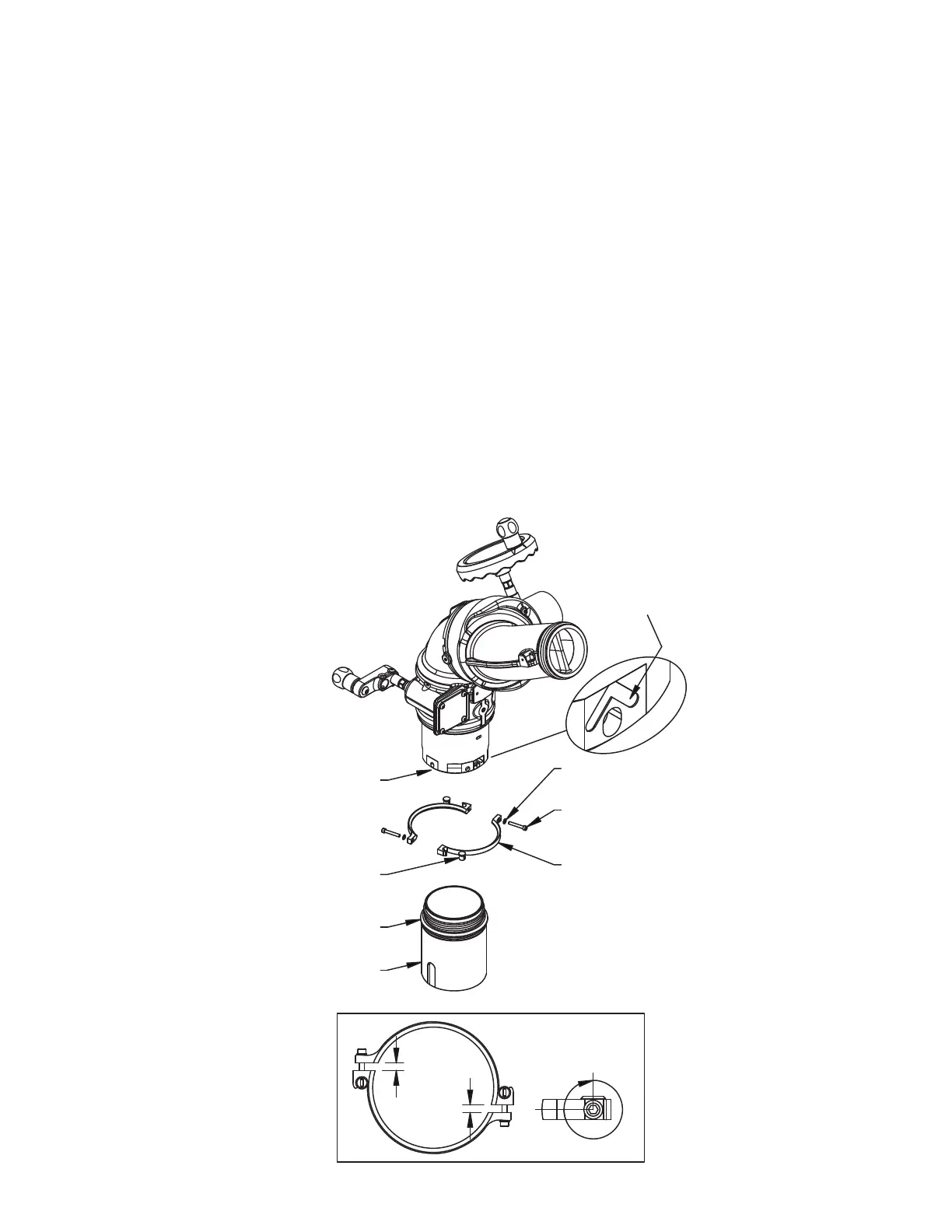

4.2.1 TWO PIECE CLAMP ROTATIONAL LOCK INSTALLATION INSTRUCTIONS
1) Assemble Clamps and place loosely on Inlet Adapter or Extend-A-Gun.
A) Apply VSA-125 blue Loctite to threads on Cylinder Nut.
B) Loosely install Screws, Washers and Cylinder Nuts on Clamp.
C) Grooves on heads of Cylinder Nuts indicate alignment of threaded holes.
D) Place Clamp assembly over male threads of outlet.
E) Heads of Cylinder Nuts must be on top side of Clamps.
2) Screw monitor onto Inlet Adapter or Extend-A-Gun RC until threaded joint bottoms out.
A) NOTICE: Make sure the Clamps are loose enough to allow the monitor Base to bottom out. The monitor will leak if it does not
bottom out in this step.
B) DO NOT USE PIPE SEALANT OR LOCTITE ON THE INLET BASE THREADS. These threads are sealed with an O-ring. The
use of thread locking compounds will make removal diffi cult.
3) Unscrew monitor until the “Straight Ahead Reference Mark” is facing the desired direction.
A) Monitor may be unscrewed up to one full turn from the bottomed out position.
B) NOTICE: Monitor will leak if unthreaded more than one full rotation from bottomed-out condition.
4) Rotate the Clamps to the desired orientation.
A) Ensure that Clamp assembly does not interfere with RC monitor Power/Com Cable.
4) Tighten each Screw gradually until both are fi nger tight with approximately equal spacing between opposite ends of Clamps.
5) Carefully tighten each Screw one additional turn using a 5/32 hex wrench by alternating to the opposite Screw in half turn
increments.
A) NOTICE: Over tightening the Screws will damage Screws and Clamps.
STRAIGHT AHEAD
REFERENCE MARK
10-32 X 1 1/4 LONG
SOCKET HEAD SCREW
VT10-32SH1.2
(2) PLACES
WASHER
VW360X200-04
(2) PLACES
MONITOR BASE CLAMP
(2) PLACES
CHAMFER MATES
WITH TOP
OF CLAMP
WIRE SKIRT
NOT SHOWN
FOR ILLUSTRATION
PURPOSES
INLET FITTING
MOUNTED
TO EXTEND-A-GUN
OTHERS ARE SIMILAR
CHAMFER MATES
WITH BOTTOM
OF CLAMP
CYLINDER NUT
(2) PLACES
EQUAL
SPACING
1 TURN PAST
FINGER TIGHT
Y4437
