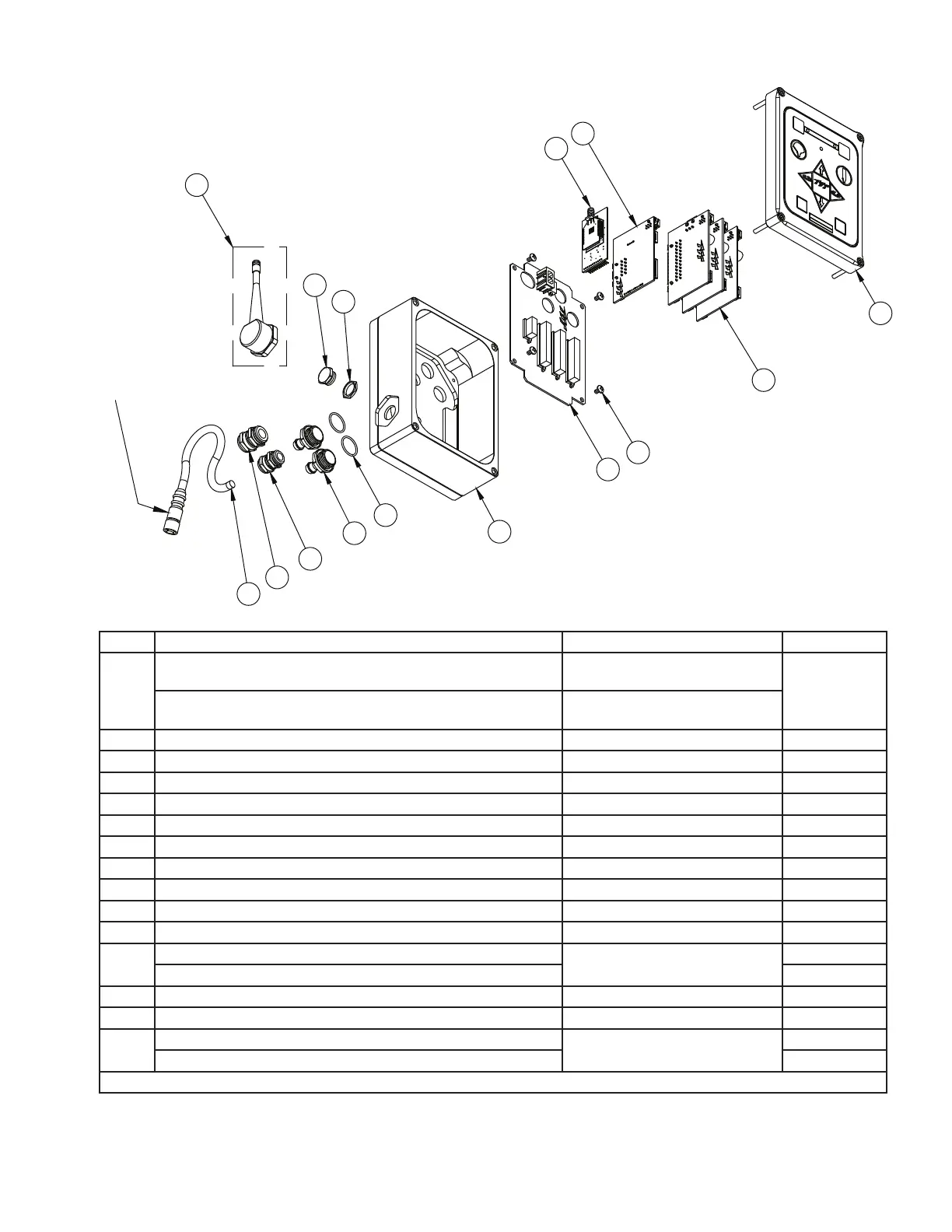

7.4 CONTROL BOX SUBASSEMBLY
1
2
3
4
5
6
7
8
9
10
11
12
15
14
13
To TFT
Nozzle ER
Male Plug
INDEX DESCRIPTION QTY PART #
1 CABLE - 6 POLE FEMALE PLUG 21" or 28” TOTAL LENGTH
USED
Y5475
FOR MONSOON RC NOZZLE CONNECTION 16" or 23” EXPOSED CABLE
(NOT INCLUDING PLUG)
2 PG11 STRAIN RELIEF 1 Y5205A
3 PG9 STRAIN RELIEF 1 Y5245A
4 CONDUIT FITTING 2 Y5213
5 O-RING-018 2 VO-018
6 ENCLOSURE BOX 1 Y5116B
7 MAIN BOARD 1 Y5105
8 M4-0.7 X 6MM PHILLIPS HEAD SCREW 4 VTM4-0.7PH6
9 MOTOR CONTROL BOARD 3 Y5100
10 MONITOR CONTROL BOX SHELL - SUBASSEMBLY 1 Y5801-LID
11 COMMUNICATION BOARD 1 Y5110-B
*12 RADIO + ADAPTER XBEE TO XSTREAM 900 MHZ RADIO
1
Y5891
RADIO + ADAPTER XBEE TO XSTREAM 2.4 GHZ RADIO Y5893
13 PG9 LOCKNUT 1 Y5246
14 PG9 HEX PLUG 1 Y5248
*15 900/920 MHZ ANTENNA W/FITTING & CONN. SUBASSY.
1
Y5897
2.4 GHZ ANTENNA ADAPTER W/CONN. SUBASSY. Y5898
* - OPTIONAL
