TFT Monsoon Series User Manual

©Copyright Task Force Tips LLC 2004-2018 LIY-200 October 11, 2018 Rev18
30

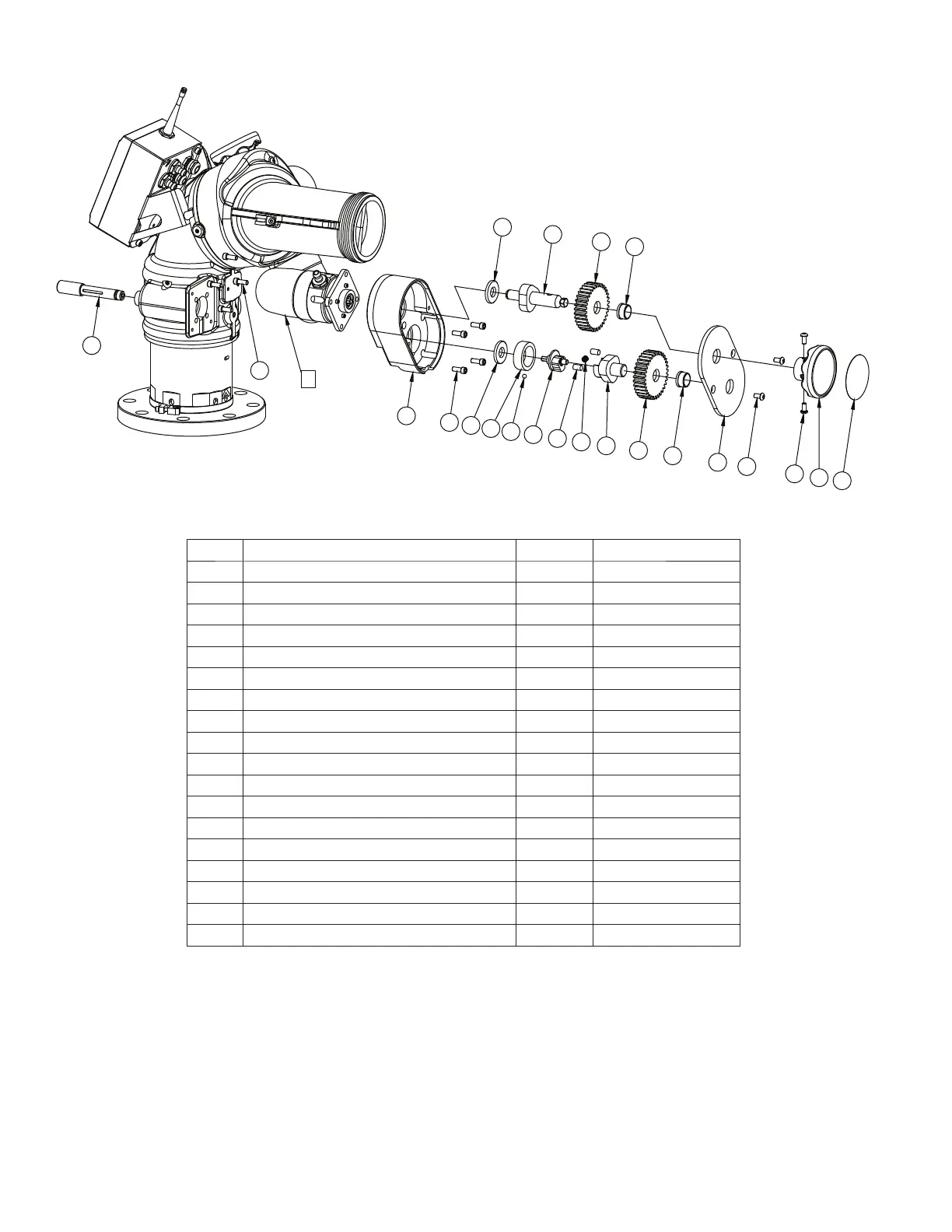

7.3 MONSOON RC
2
1
15
17
16
14
15
13
6
7
10
11
12
9
8
4
2
3
7
6
5
4
B
INDEX DESCRIPTION QTY PART #
1 DRIVE SHAFT 1 Y4267
2 1/4-28 X 5/8 SOCKET HEAD SCREW 8 VT25-28SH625
3 GEARBOX 1 Y4260
4 BUSHING 2 XGE637
5 DRIVE SHAFT 1 Y4264
6 GEAR 2 Y4261
7 SHORT HEADED BUSHING 2 XGE634
8 FLOATING RING 1 AY352
9 1/4" SS BALL 1 V2125
10 DRIVEN SHAFT 1 Y4263
11 DOWEL PIN 2 VP312X.50
12 ANTI-BACK-DRIVE SPRING 1 Y4266
13 DRIVING SHAFT 1 Y4265
14 GEARBOX COVER 1 Y4262
15 1/4-20 X 1/2 BUTTON HEAD SCREW 4 VT25-20BH500
16 OVERRIDE KNOB 1 Z245
17 OVERRIDE KNOB LABEL 1 Y4176
B MOTOR ENCLOSURE SUBASSEMBLY 1 SEE SECTION 9.5
