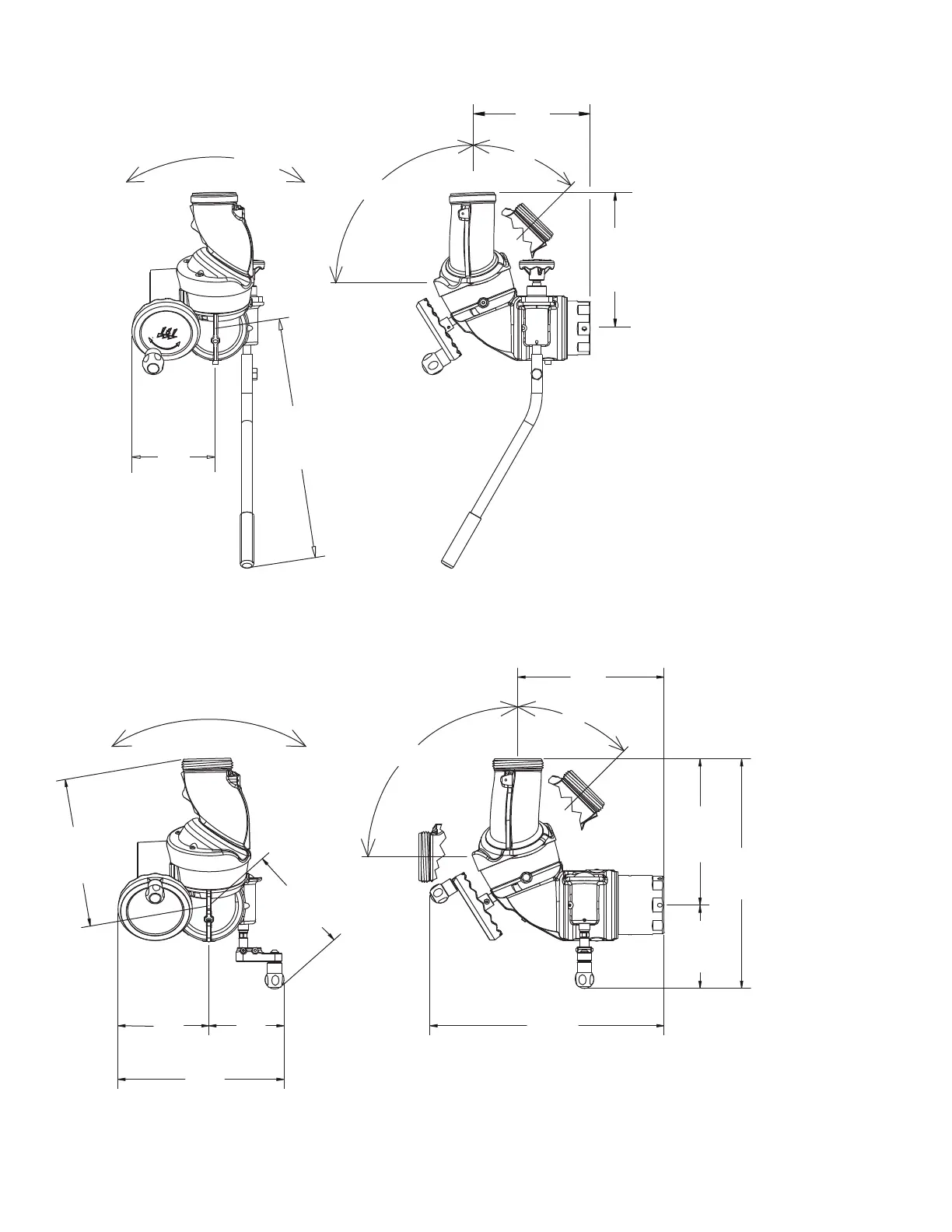

3.4 OVERALL DIMENSIONS
SHOWN WITH TILLER BAR
AND WITHOUT INLET FITTING
SEE SEC 3.3.1 FOR ADDITIONAL HEIGHT
90°
45° 10.62
(270 mm)
12.25
(311 mm)
360°
CONTINUOUS
7.62
(194 mm)
22
(560 mm)
SWING
Manual Tiller Bar Monsoon Dimensions
Figure 3.4B
6.97"
[177mm]
12.25"
[311mm]
19.22"
[488mm]
13.90"
[353mm]
9.07"
[230mm]
SWING
360°
CONTINUOUS
SHOWN WITHOUT INLET FITTING.
SEE SEC 3.3.1 FOR ADDITIONAL HEIGHT
45°
90°
12.50"
[318mm]
12.50"
[320mm]
6.28"
[160mm]
7.61"
[193mm]
19.60"
[498mm]
Manual Monsoon Dimensions
Figure 3.4A
