4.2.3 HORIZONTAL ROTATION TRAVEL STOPS
The range of horizontal rotation travel for the manual Monsoon monitor is continuous 360 degrees. The motorized version is limited
to 450 degrees total horizontal rotation travel or 225 degrees from either side of a straight ahead position. Horizontal rotation travel
stop bolts may be installed in the monitor to limit travel as shown in fi gures 4.2.2A and 4.2.2B. Note that left and right are relative
to the “Straight Ahead Reference Mark” (the Straight Ahead Reference Mark is shown in fi gures 4.2.2A and 4.2.2B) and refer to the
nozzle’s discharge direction as seen from an operator’s position behind the nozzle. Figures 4.2.2A and 4.2.2B show the range of
travel for the various stop bolt locations and give installation notes.

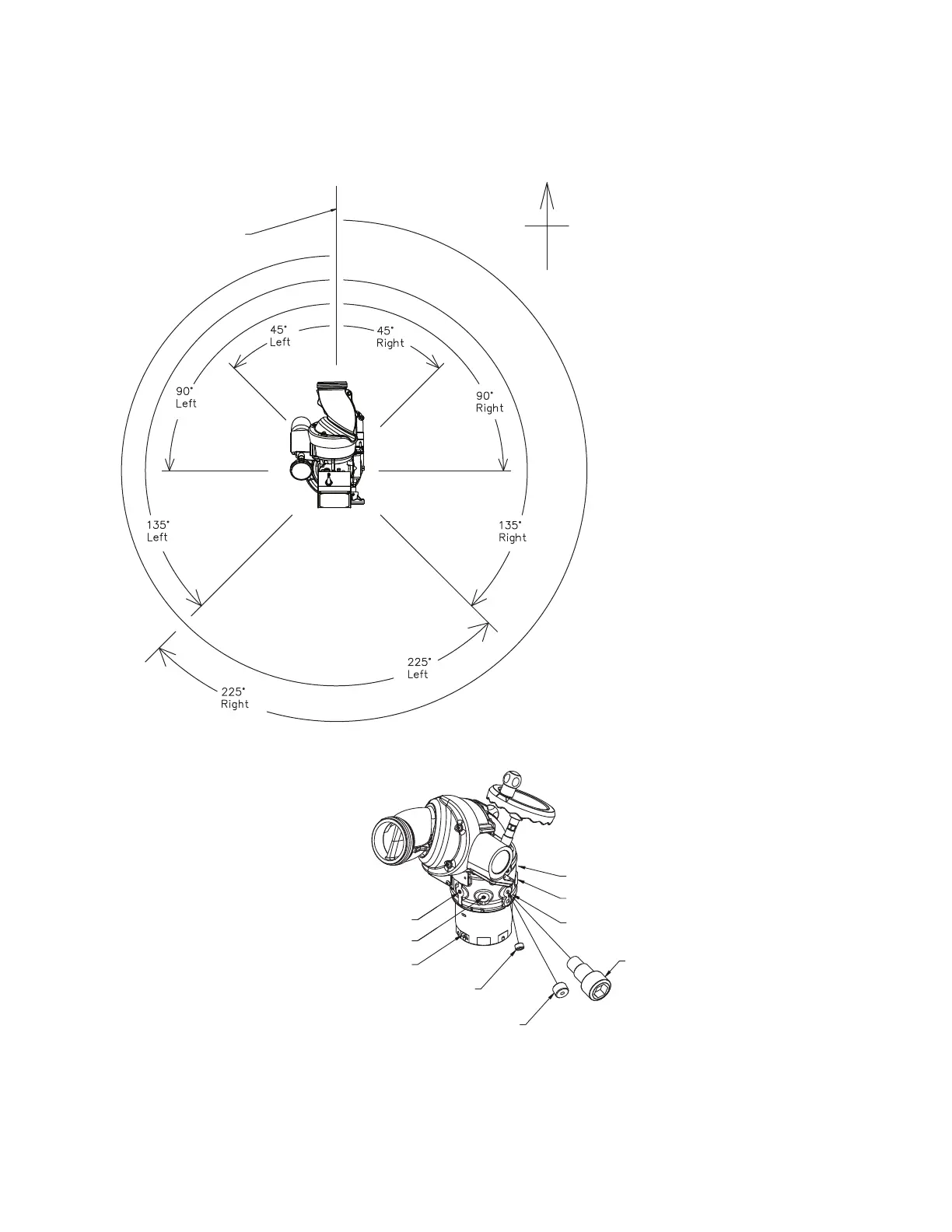

LOCATION OF
STRAIGHT AHEAD
REFERENCE MARK
Electric model with no stop bolts installed
has 225° left and right horizontal rotation
travel limits.
Manual model with no stop bolts installed
has continuous 360° horizontal rotation
travel.
Fig 4.2.2A
Horizontal Rotation Travel Limits
STRAIGHT AHEAD
REFERENCE MARK
90° RIGHT
45° RIGHT
ADJUSTMENT DISK, Y3146
INSTALL ON THIS SIDE OF STOP BOLT TO
REDUCE TRAVEL TO RIGHT BY APRROX 8°
FOR EACH DISK INSTALLED. INSTALL DISKS ON
OTHER SIDE TO REDUCE TRAVEL TO LEFT.
(NOT INCLUDED) CONTACT TFT FOR ADJUSTMENT DISCS.
SET SCREW
#VT37-24SS250
90° LEFT
135° LEFT & RIGHT
45° LEFT
STOP BOLT
Y4145
REMOVE THE SET SCREW AND
INSTALL STOP BOLT TO OBTAIN
DESIRED TRAVEL LIMITS.
Fig 4.2.2B
Horizontal Rotation Travel Stop Locations
