TFT Monsoon Series User Manual

©Copyright Task Force Tips LLC 2004-2018 LIY-200 October 11, 2018 Rev18
18
5.4 RECOMMENDED PARK POSITION
For truck mounted applications it is recommended that the monitor
be parked in a position such that the monitor’s nozzle rests against
a bracket or support surface. If a support surface is not available,
run the elevation against one of its travel stops to take some of
the backlash out of the gear drive. This will minimize bouncing of
the nozzle when the apparatus is traveling. Always be sure the
monitor is properly parked before moving the truck and know the
overall height to avoid damage from overhead obstructions such
as doors or bridges.
See LIY-500 for information on programming PARK position.
Cut here to
shorten shaft
11/16"
(18 MM)
Hex
Cut here to
shorten shaft
5.5 OVERRIDE KNOBS
In the event of electrical system failure on the monitor or fi re truck
the Monsoon Monitor is factory supplied with knobs so the monitor
may be manually operated. To make the Monsoon RC more
compact the manual override knobs may be removed. The drive
shafts have a hex so an 11/16” wrench or socket may be used for
manual override. Each drive shaft also has a secondary hex at
mid shaft so the shaft may be shortened by cutting and still have a
wrenching hex. The wrenching hexes are shown in fi gure 5.5.

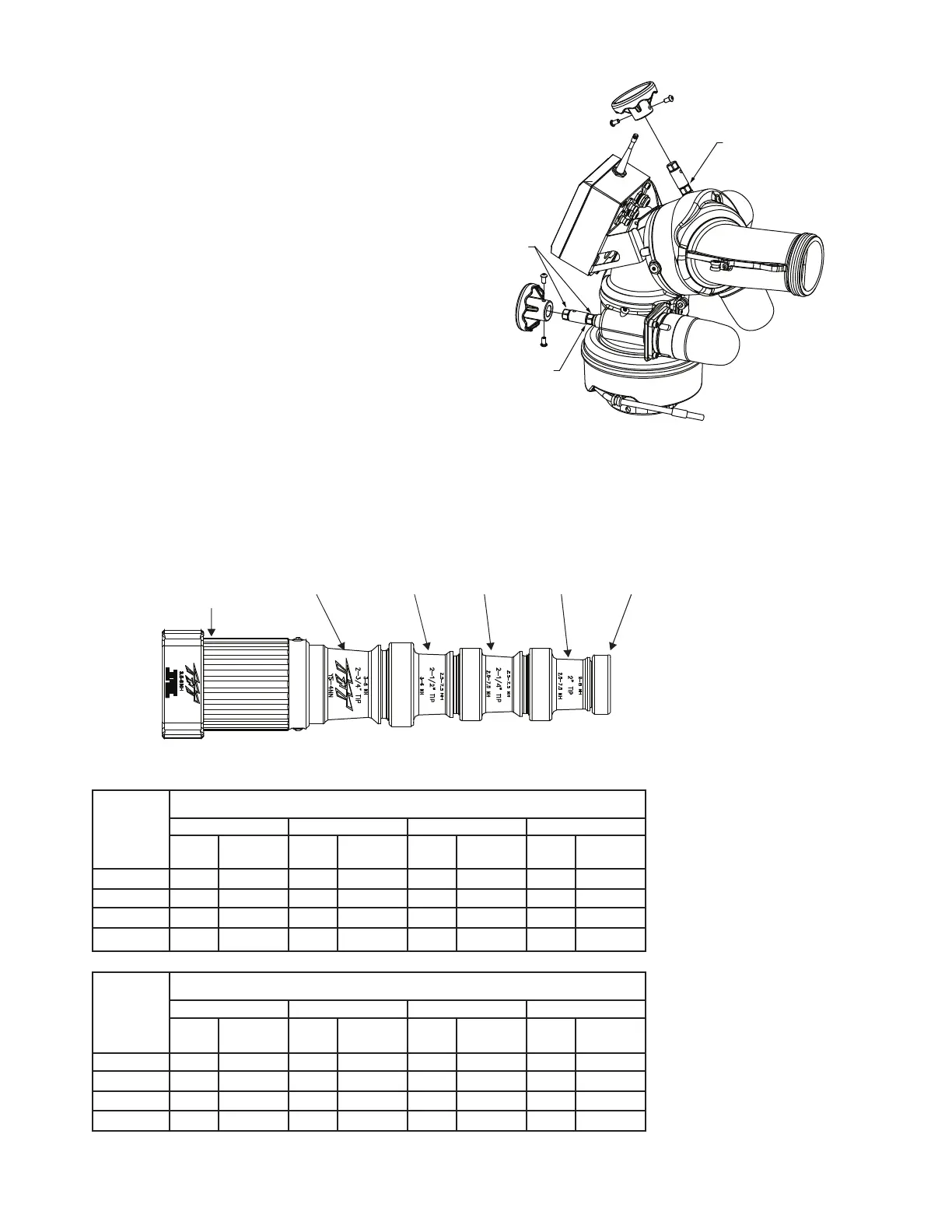

Fig 5.5
Wrenching Hexes on Drive Shaft
6.0 FLOWS AND PRESSURES
6.1 STACKED TIPS FLOW AND REACH
6.1.1 YST-4NM FLOW AND REACH
3.5-6 NH
Remove cap and install
smaller tips if desired.
Such as Model #MST-4NJ
(1-3/8", 1-1/2", 1-3/4", 2")
Integral Stream 2-3/4" 2-1/2" 2-1/4" 2" Protective Cap
Straightener
3.5"
Coupling
Fig 6.1A
Stacked Tip Model YST-4NN
2 840 310 920 380 1060 500 1190 630
2.25 1060 400 1170 480 1350 640 1500 790
2.5 1310 490 1440 590 1660 790 1860 980
2.75 1590 590 1740 710 2010 950 ----- -----
Nozzle Pressure (PSI)
Nozzle
50 60 80 100
Diameter Flow Reaction Flow Reaction Flow Reaction Flow Reaction
(inches) GPM lbf GPM lbf GPM lbf GPM lbf
50 3180 140 3480 170 4010 230 4500 290
57 4010 180 4430 220 5110 290 5680 360
64 4960 220 5450 270 6280 360 7040 450
70 6020 270 6590 320 7610 430 ----- -----
Nozzle Pressure (BAR)
Nozzle
3.5 4.1 5.5 7
Diameter Flow Reaction Flow Reaction Flow Reaction Flow Reaction
(MM) l/min kg l/min kg l/min kg l/min kg
14.5 psi bar = 1
1 gpm = 3.785 l/min
Fig 6.1B
Stacked Tip Flow Table
