4.2.2 EXTEND-A-GUN RC INSTALLATION

WIRE WRAPPED

CORRECT

WIRE NOT WRAPPED

INCORRECT

NOTE:

WIRE NOT

WRAPPED

MANUAL OVERRIDE

KNOB ON

EXTEND-A-GUN

NOTE:

CORRECT

WIRE WRAP

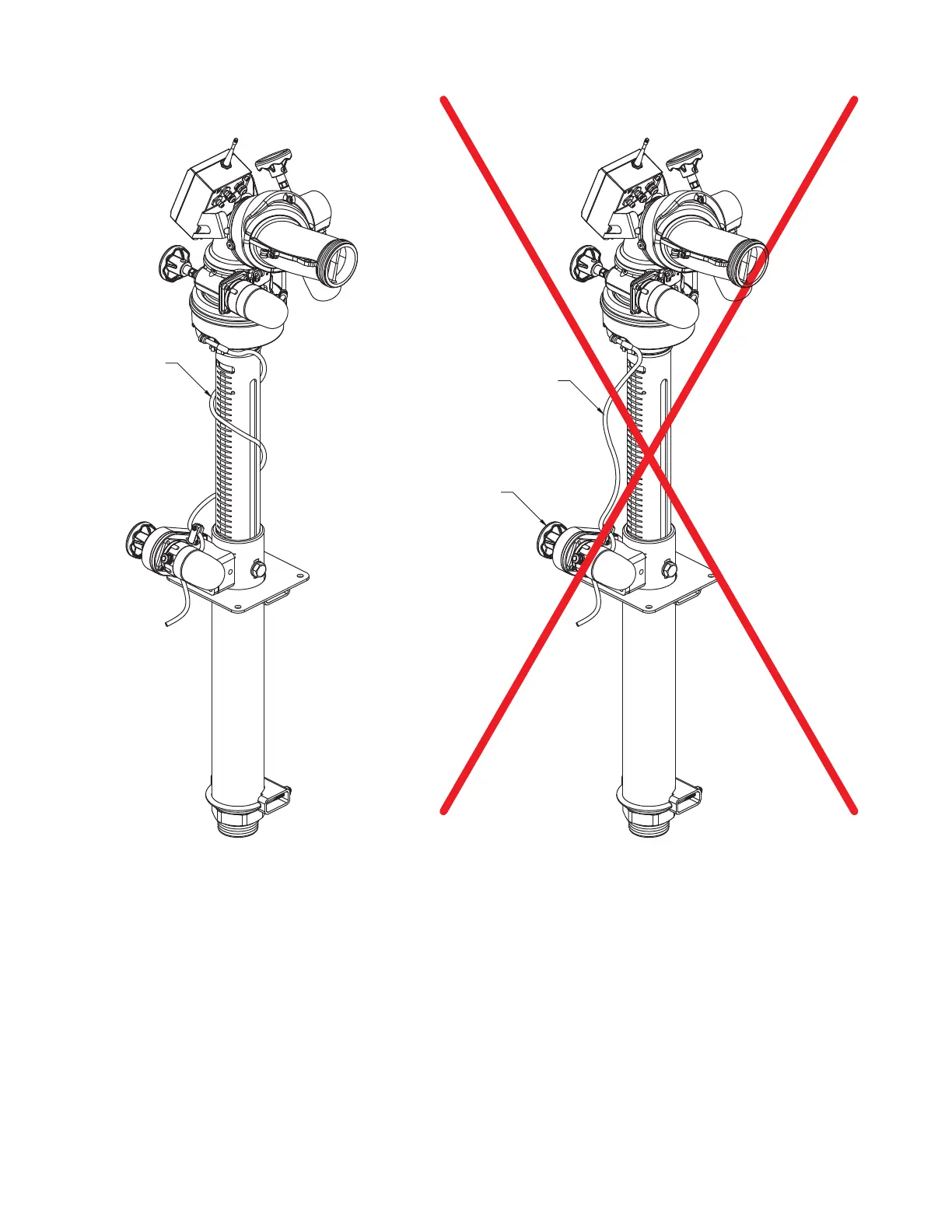

Fig 4.2.1C Possible Extend-A-Gun RC Mounting Orientations

The Extend-A-Gun manual override knob may be mounted in any of four possible orientations (90 degrees apart) relative to the

Straight Ahead Reference Mark on the monitor.

NOTE: Monsoon monitor, for use with Extend-A-Gun RC, comes with the wire installed in a nylon tube. The nylon tubing gives the

wire additional stiﬀ ness so it better follows as the Extend-A-Gun RC extends or retracts.

NOTE: There is a wire clamp provided that is to be used to secure the wire and tubing to the extend-a-gun gearbox.
