©Copyright Task Force Tips LLC 2004-2018 LIY-200 October 11, 2018 Rev18
7

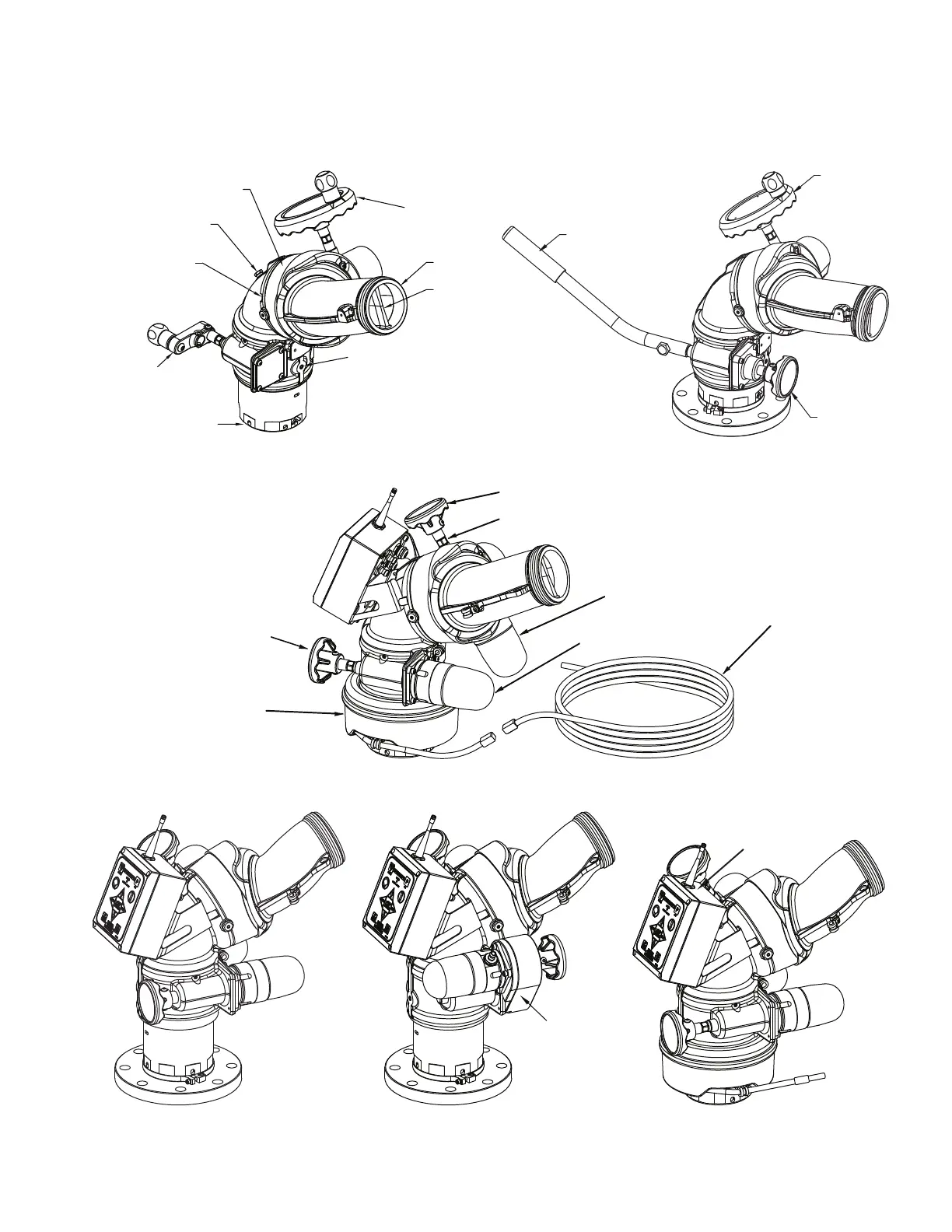

3.2 PART IDENTIFICATION AND MODELS
The Monsoon Monitor comes in manual and electric remote controlled models. Manual models are available with either handwheel
control on both axis or a tiller bar model that uses a tiller bar to control horizontal rotation. Electric remote control models are available
in a standard model (suitable for on top of pumpers), a Ladder model and a Platform model. The Ladder or Platform model has a
smaller swing radius and has horizontal travel stops factory installed at 90° left and right (180° total). The various models of Monsoon
monitors are shown in fi gures 3.2A, 3.2B, 3.2C and 3.2D.
HORIZONTAL ROTATION
TRAVEL STOPS
(6) PLACES
SEE SECTION 4.4
STRAIGHT AHEAD
REFERENCE MARK
SEE SECTION 4.2
OUTLET
TURNING
VANE
ELEVATION
HANDWHEEL
ELEVATION TRAVEL
STOPS (3) PLACES
SEE SECTION 4.5
MODEL & SERIAL NUMBER
ON LABEL
PORT FOR
PRESSURE GAGE
HORIZONTAL
ROTATION
HANDCRANK
INLET
LOCKING
KNOB
ELEVATION
HANDWHEEL
TILLER HANDLE
Figure 3.2A
Manual Handwheel Monsoon Monitor
Figure 3.2B
Manual Tiller Bar Monsoon Monitor
MANUAL OVERRIDE KNOB
FOR HORIZONTAL ROTATION
MANUAL OVERRIDE KNOB
FOR ELEVATION
ELECTRIC NOZZLE CONNECTION
SEE SECTION 4.3
WIRE SKIRT
MANUAL OVERRIDE WRENCHING HEX
SEE SECTION 5.5
POWER AND
COMMUNICATION CORD
30 FEET
(9 METERS)
HORIZONTAL ROTATION
GEAR MOTOR
ELEVATION GEAR MOTOR
Figure 3.2C
Monsoon RC Monitor
Anti-Back-Drive
Gearbox
MONITOR MOUNTED
CONTROL STATION
Figure 3.2D
Monsoon RC for Ladders or Platforms
Figure 3.2E
Monsoon RC for Ladders
Figure 3.2F
Monsoon RC Standard Model
