TFT Monsoon Series User Manual

©Copyright Task Force Tips LLC 2004-2018 LIY-200 October 11, 2018 Rev18
6
0
25
50
75
100
125
150
175
200
225
250
200 600 1000 1400 1800 2200 2600 3000
Monitor Inlet Pressure (psi)
Flow (gpm)

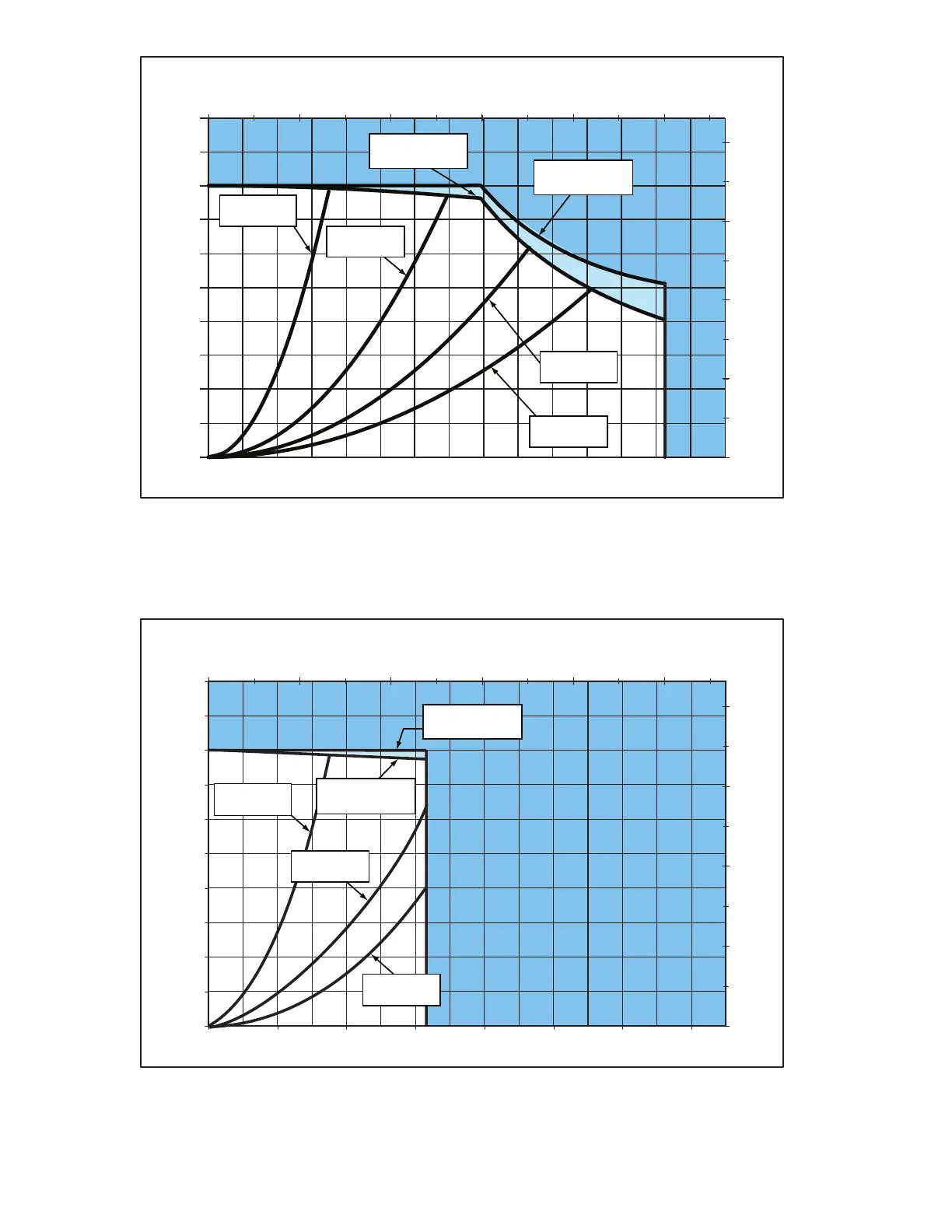

3.5” Monsoon Operating Envelope
Flow (lpm)
Monitor Inlet Pressure (bar)
Monitor Loss
0
4
8
12
16
0 2000 4000 6000 8000 10000
Maximum Nozzle
Inlet Pressure
Maximum Monitor
Inlet Pressure
Nozzle A Inlet
Pressure
Nozzle D Inlet
Pressure
Nozzle C
Inlet Pressure
Nozzle B Inlet
Pressure
Nozzle A fl ows 500 gpm (1900 l/min) at 100 psi (7 bar), K factor = 50
Nozzle B fl ows 1000 gpm (3800 l/min) at 100 psi (7 bar), K factor = 100
Nozzle C fl ows 1500 gpm (5700 l/min) at 100 psi (7 bar), K factor = 150
Nozzle D fl ows 2000 gpm (7600 l/min) at 100 psi (7 bar), K factor = 200
Fig. 3.1.1
Monsoon Operating Envelope
2.5” Monsoon Operating Envelope
Flow (gpm)
Monitor Inlet Pressure (psi)
Flow (lpm)
Monitor Inlet Pressure (bar)
0
25
50
75
100
125
150
175
200
225
250
0 400 800 1200 1600 2000 2400 2800
0
4
8
12
16
0 2000 4000 6000 8000 10000
Maximum Nozzle
Inlet Pressure
Nozzle A Inlet
Pressure
Nozzle B Inlet
Pressure
Nozzle C
Inlet Pressure
Maximum Monitor
Inlet Pressure
Nozzle A fl ows 500 gpm (1900 l/min) at 100 psi (7 bar), K factor = 50
Nozzle B fl ows 1000 gpm (3800 l/min) at 100 psi (7 bar), K factor = 100
Nozzle C fl ows 1250 gpm (4800 l/min) at 100 psi (7 bar), K factor = 150
Fig. 3.1.2
Monsoon Operating Envelope
