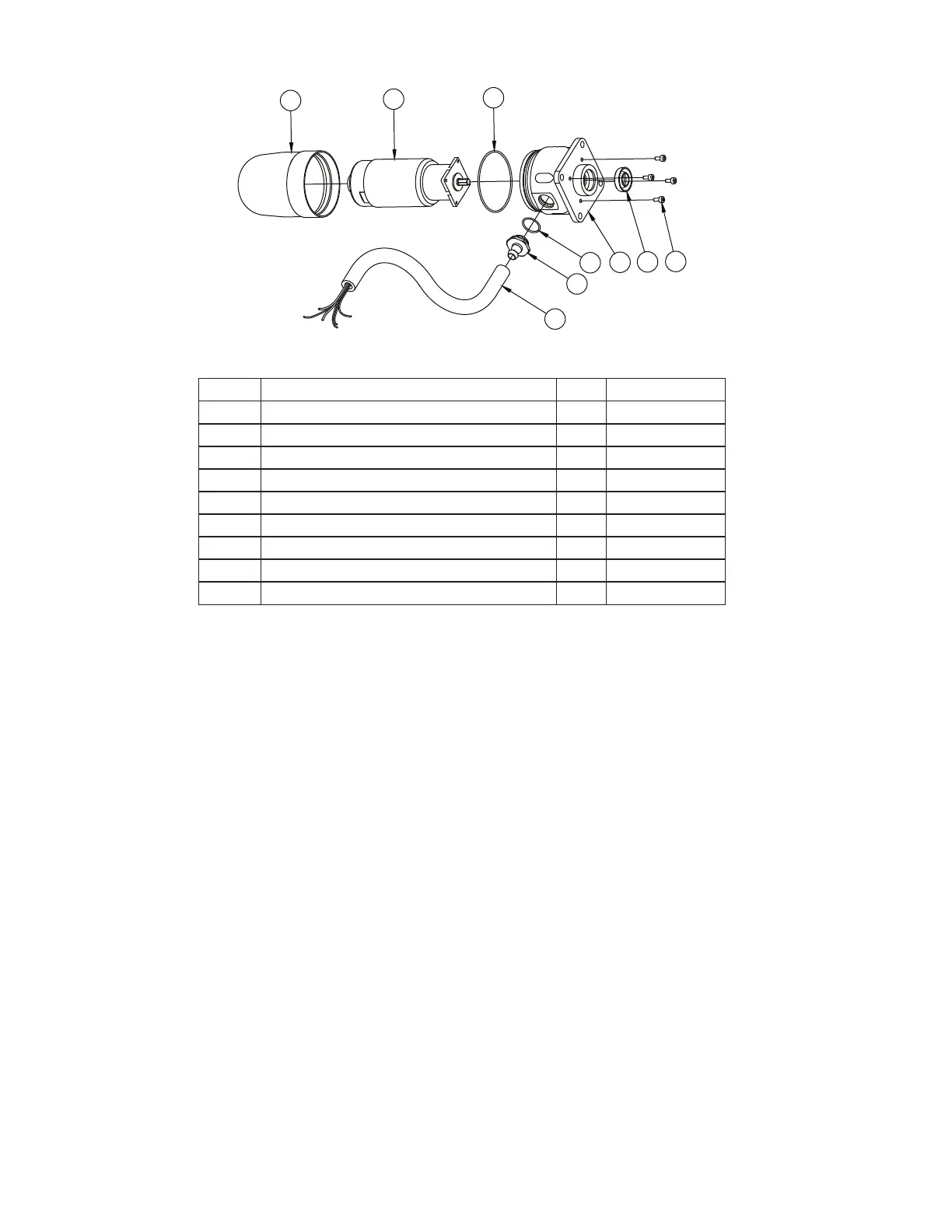

7.5 MOTOR ENCLOSURE SUBASSEMBLY
2
1
3
9
8
7
6
5
4
INDEX DESCRIPTION QTY PART #
1 ENCLOSURE 1 Y4616
2 GEAR MOTOR W/CRIMPED TERMINALS 1 Y4611
3 O-RING-038 1 VO-038
4 6-32 X 5/16 LONG SHCS WITH HEAD SEAL 4 VT06S32SH312
5 CUP SEAL 1 Y4620
6 MOTOR SOCKET 1 Y4615
7 O-RING-018 1 VO-018
8 CONDUIT FITTING 1 Y5213
9 HOSE - 3/8" ID PUSH-LOK 1 Y5250
