TFT Monsoon Series User Manual

©Copyright Task Force Tips LLC 2004-2018 LIY-200 October 11, 2018 Rev18
20
This graph is approximate only. Critical applications should be tested in actual conditions to verify adequate reach.
0
20
40
60
80
100
120
140
160
180
200
0 40 80 120 160 200 240 280
HORIZONTAL DISTANCE (FEET)
2 .50 INCH TIP, 100 PSI, 1860 GPM
VERTICAL DISTANCE (FEET)
75 DEGREES
60 DEGREES
45 DEGREES
30 DEGREES
0
20
40
60
02040 80
60
HORIZONTAL DISTANCE (M)
VERTICAL DISTANCE (M)
Fig 6.1E

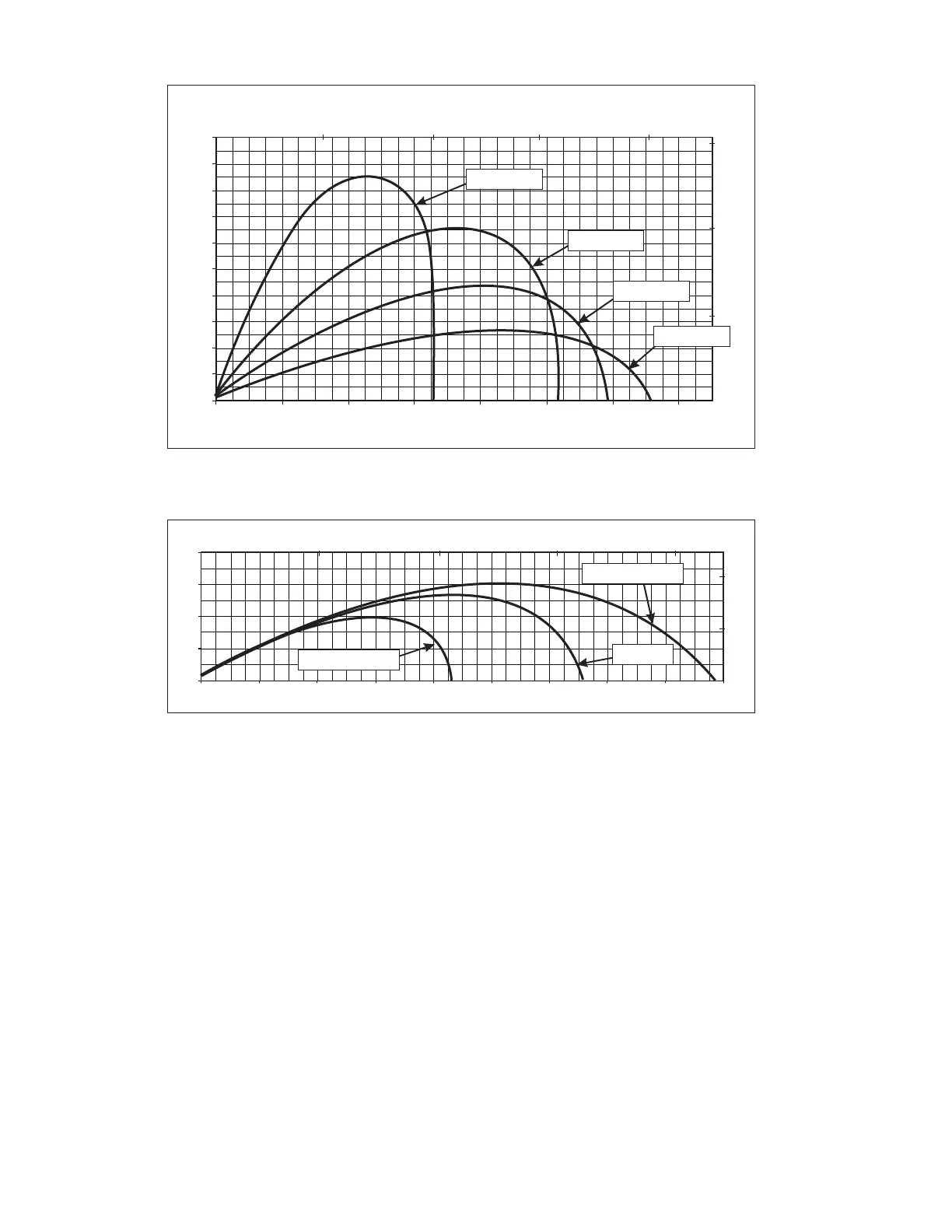

Eff ects of Elevator Trajectory
This graph shows approximately how a moderate wind can aff ect stream reach. 1 ft = 0.3048 m
0
10
40
20
80
0
40
80 120 160 200 240 280 320 360
HORIZONTAL DISTANCE (FEET)
2.50 INCH TIP, 100 PSI, 1860 GPM
VERTICAL DISTANCE (FEET)
NO WIND
20 MPH TAILWIND
20 MPH HEADWIND
0 25 50 75 100
VERTICAL DISTANCE (M)
HORIZONTAL DISTANCE (M)
Fig 6.1F
Eff ects of Wind on Reach
