4-43
User Manual PN 84469 Rev B
Satellite Modem
NOTE
This is a view only page.
The Satellite Modem diagnostics page provides information that will aide in the debugging of the
system.
The Satellite Modem page is divided into the following sections as shown in Figure 4-41:
• System Status
• Constellation Status
• Static Config
• System Diagnostics

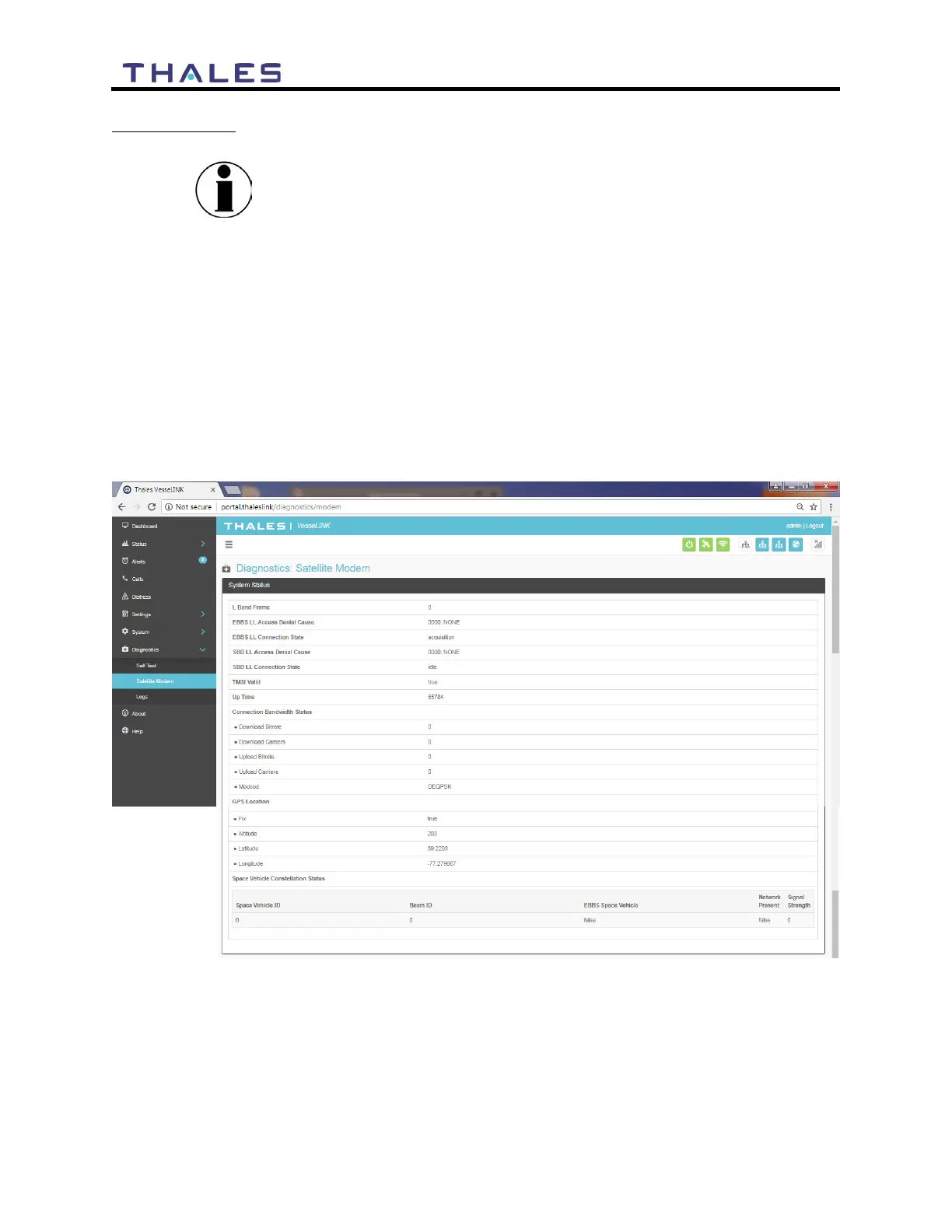

Figure 4-41 Diagnostics  Satellite Modem Screen (Sheet 1 of 2)
