CUTMASTER A60
INSTALLATION 3T-2 Manual 0-4982
3T.03 Setting Up Automation or
Machine Torch
NOTE
An adapter is required to be installed in the
power supply if converting a hand torch system
to operate a machine or automation torch.
WARNING
Disconnect primary power at the source before
disassembling the torch or torch leads.
The Automation and Machine torch include a
positioning tube with rack and pinch block assem-
bly.
1. Mount the torch assembly on the cutting
table.
2. To obtain a clean vertical cut, use a square
to align the torch perpendicular to the sur-
face of the workpiece.

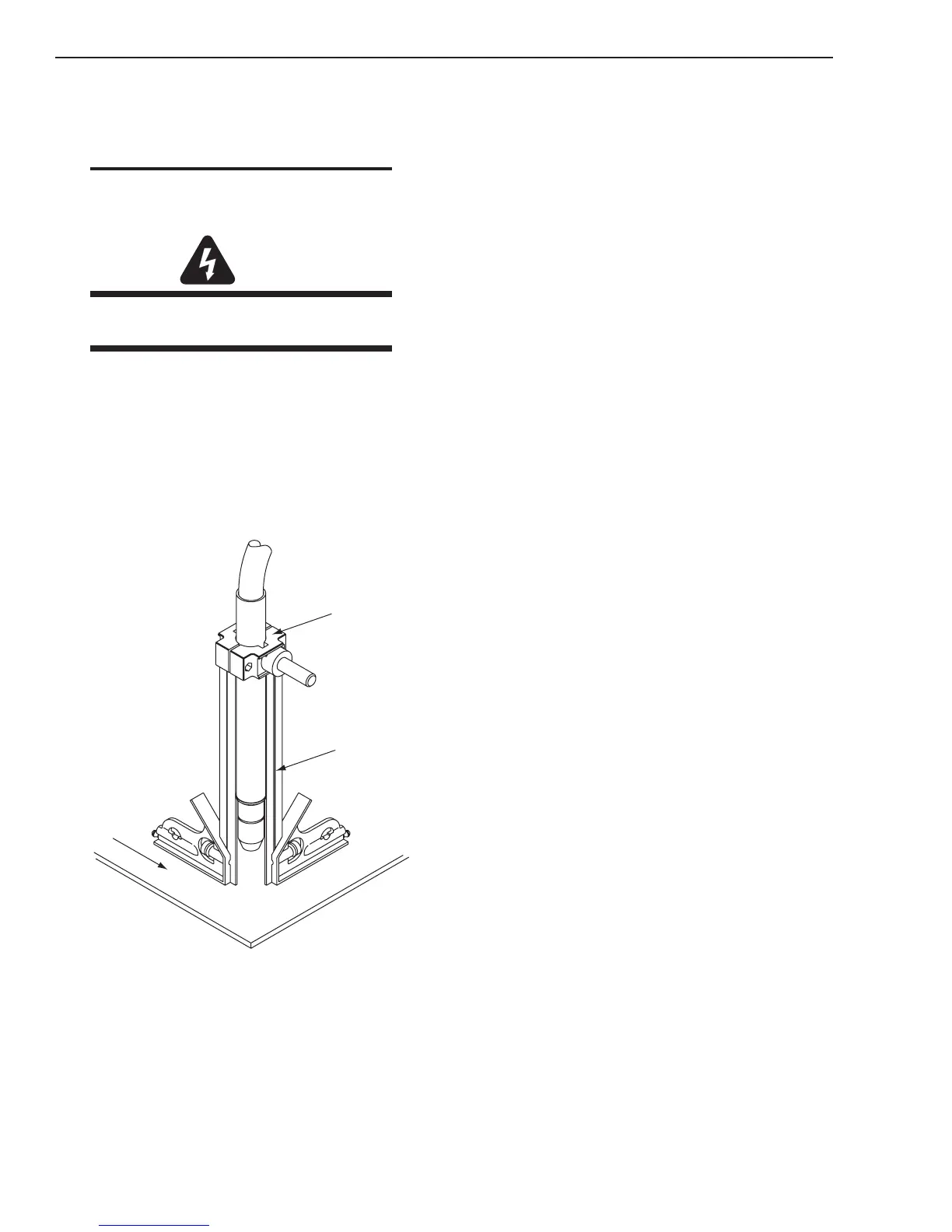

A-02585
Workpiece
Square
Pinch Block
Assembly
Automated and Machine Torch Set - Up
3. The proper torch parts (shield cup, tip, start
cartridge, and electrode) must be installed
for the type of operation. Refer to Section
4T.08, Torch Parts Selection for details.
