APPENDIX A-6 Manual 0-4981

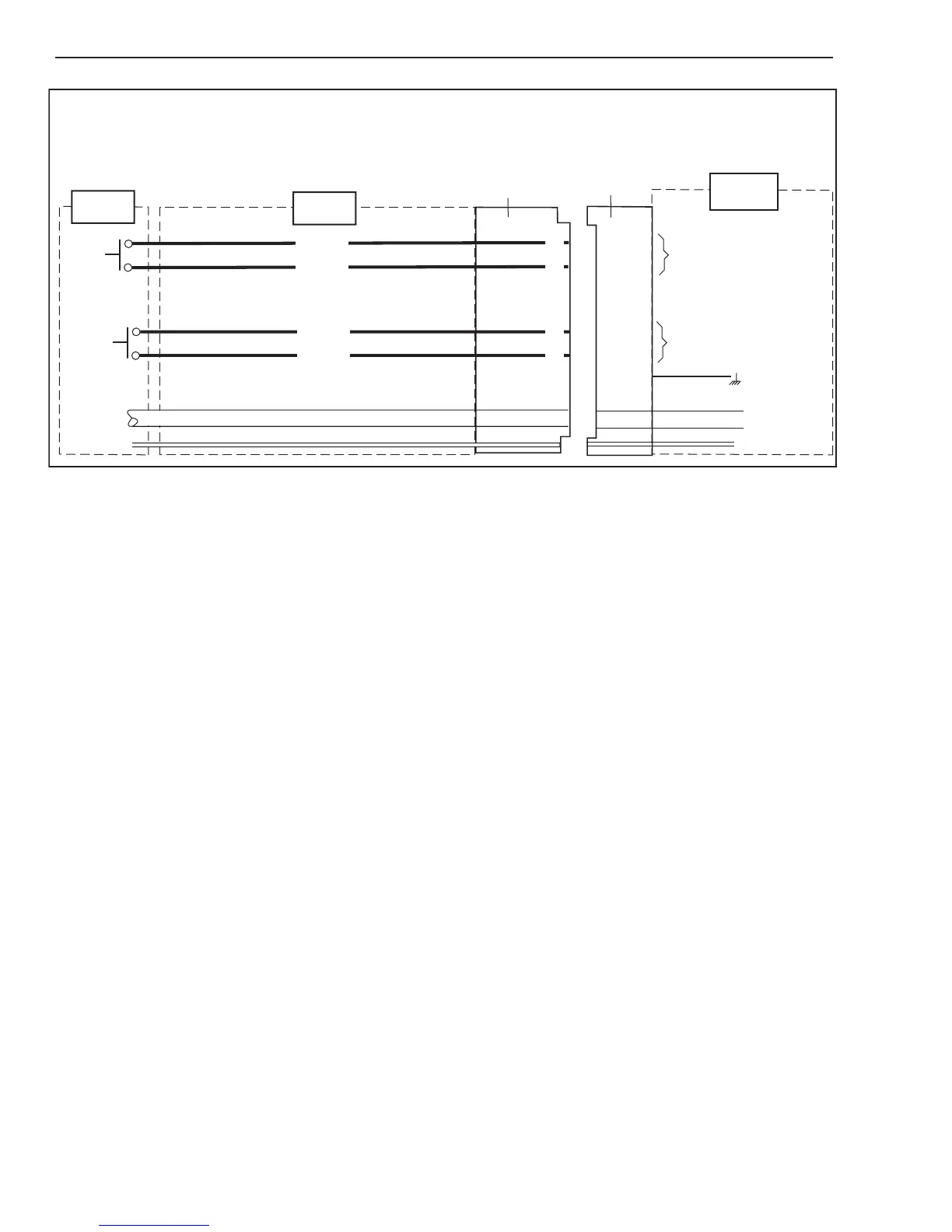

C. Hand Torch Connection Diagram
Torch: SL60 / SL100 Hand Torch
Leads: Torch Leads with ATC Connector
Power Supply: with ATC Receptacle
Pilot
Negative / Plasma
Power
Supply
PIP
Switch
Male
ATC Leads
Connector
ATC Female
Receptacle
Pilot
Negative / Plasma
Black
Orange
Torch
Leads
Torch
Head
To Power Supply
Circuitry
Art # A-03797
1
2
5
6
4
3
8
7
1
2
5
6
4
3
8
7
Torch
Switch
Green
White
To Power Supply
Circuitry
