INTRODUCTION 2-2 Manual 0-4981

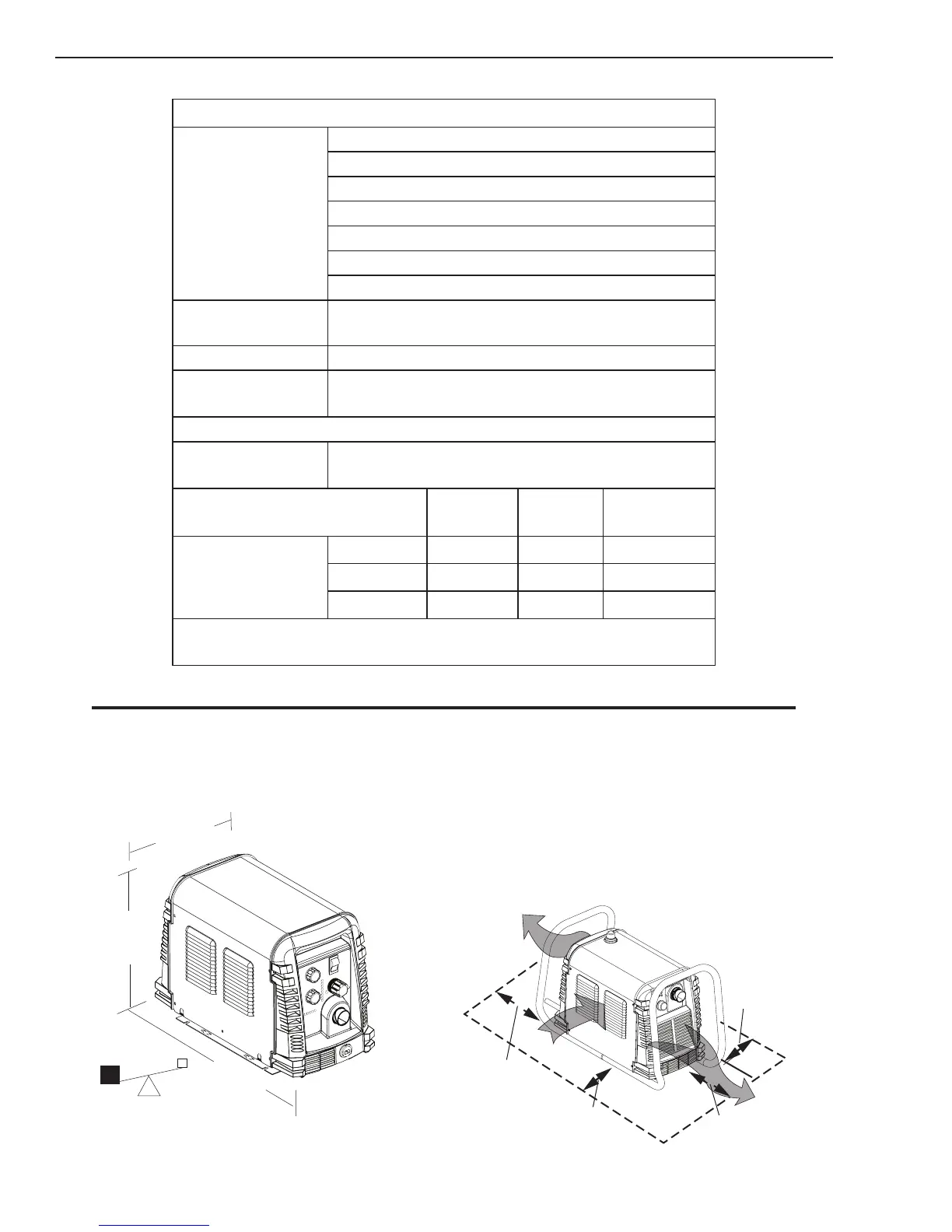

2.04 Power Supply Specifications
CutMaster A60 Power Supply Specifications
Input Power
208 / 230 VAC (187 - 253 VAC), Single Phase, 60 Hz
230 VAC (187 - 253 VAC), Three Phase, 50/60 Hz
380 VAC (360 - 440 VAC), Three Phase, 50/60 Hz
400 VAC (360 - 440 VAC), Three Phase, 50/60 Hz
460 VAC (414 - 506 VAC), Single Phase, 60 Hz
460 VAC (414 - 506 VAC), Three Phase, 60 Hz
600 VAC (540 - 630), Three Phase, 60 Hz
Input Power Cable
Power Supply includes input cable. Cable for 208/230V
input power includes molded plug.
Output Current 20 - 80 Amps, Continuously Adjustable
Power Supply Gas
Filtering Ability
Particulates to 5 Microns
CutMaster A60 Power Supply Duty Cycle *
Ambient Temperature
Duty Cycle Ratings @ 40° C (104° F)
Opperating Range 0° - 50° C
IEC
Rating
IEC
Rating
IEC
Rating
All Units
Duty Cycle 40% 60% 100%
Current
80 Amps 65 Amps 50 Amps
DC Voltage
112 106 100
* NOTE: The duty cycle will be reduced if the primary input power (AC) is low or
the output voltage (DC) is higher than shown in this chart.
NOTE
IEC Rating is determined as specified by the International Electro-Technical Commission. These specifications
include calculating an output voltage based upon power supply rated current. To facilitate comparison between
power supplies, all manufacturers use this output voltage to determine duty cycle.
Power Supply Dimensions & Weight Ventilation Clearance Requirements
20.8"
0.528 m
43 lb / 19.5 kg
10"
254 mm
13.78"
350 mm
Art # A-08305
6"
150 mm
24"
610 mm
6"
150 mm
6"
150 mm
Art # A-07925_AB
