CUTMASTER 40MM
PARTS LIST Manual 0-5084
6-2
6.05 Options and Accessories
Qty Description Catalog #
1 Single - Stage Filter Kit (includes Filter & Hose) 7-7507
1 Replacement Filter Body 9-7740
1 Replacement Filter Hose (not shown) 9-7742
2 Replacement Filter Element 9-7741
1 Two - Stage Filter Kit (includes Hose & Mounting Screws) 9-9387
1 Two - Stage Air Filter Assembly 9-7527
1 First Stage Cartridge 9-1021
1 Second Stage Cartridge 9-1022
1 Extended Work Cable (50 ft / 15.2 m) with Clamp 9-8529
1 Automation Interface Kit
for Start/Stop, OK to move and Divided Arc Voltage) 9-8311
1 Automation Harness for Start/Stop and OK to move 9-9385
1 25' / 7.6 m CNC Cable for Automation Interface Kit 9-1008
1 35' / 10.7 m CNC Cable for Automation Interface Kit 9-1010
1 50' /15.2 m CNC Cable for Automation Interface Kit 9-1011

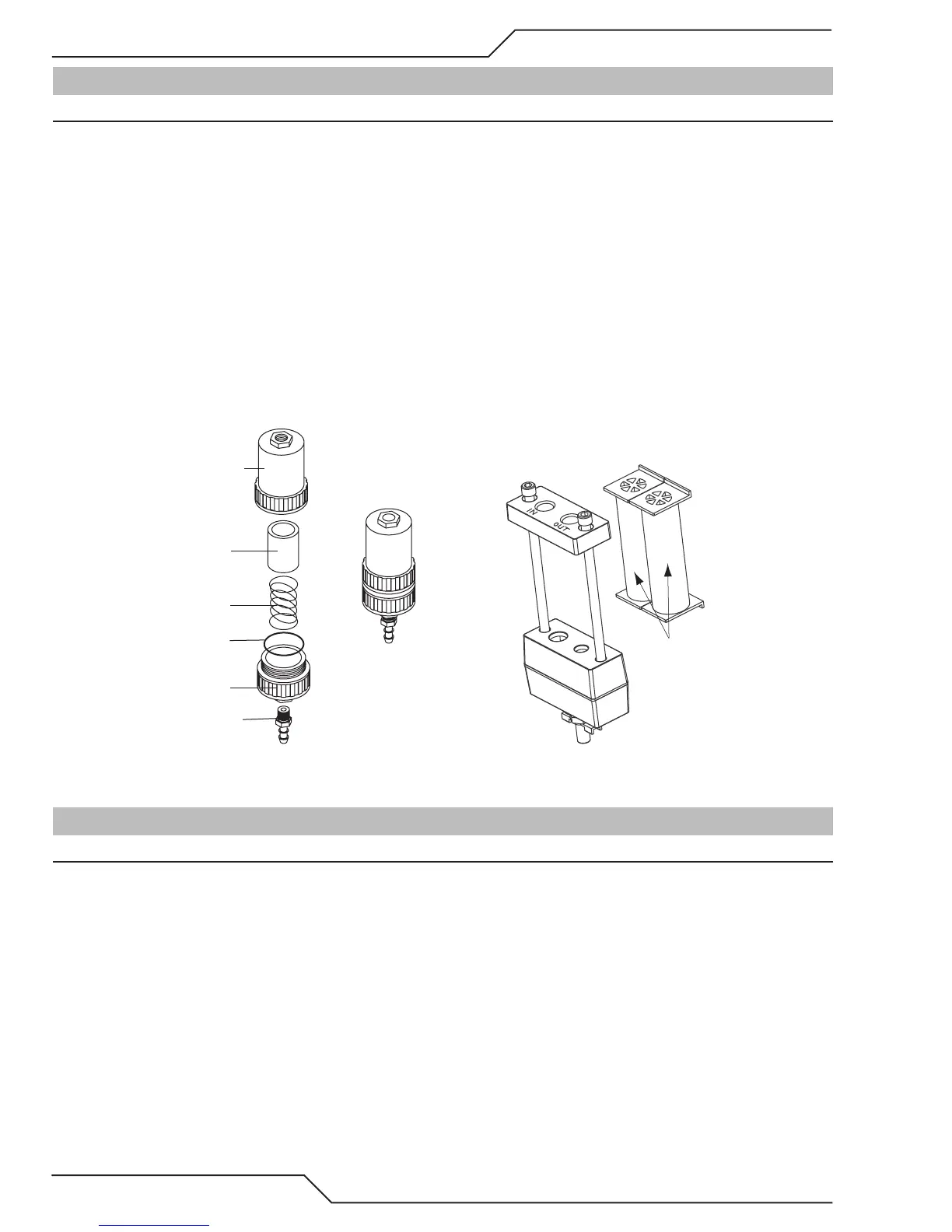

Art # A-02476
Filter
Element
(Cat. No. 9-7741)
Housing
Cover
Barbed
Fitting
Spring
Assembled Filter
O-ring
(Cat. No. 9-7743)
First & Second
Stage
Cartridges
(as marked)
Art # A-02942
Optional Single - Stage Filter Kit Optional Two - Stage Filter Kit
6.06 Replacement Parts for Hand Torch
Item # Qty Description Catalog #
1 1 Torch Handle Replacement Kit (includes items No. 2 & 3) 9-7030
2 1 Trigger Assembly Replacement Kit 9-7034
3 1 Handle Screw Kit (5 each, 6-32 x 1/2” cap screw, and wrench) 9-8062
4 1 Torch Head Assembly Replacement Kit (includes items No. 5 & 6) 9-8219
5 1 Large O-Ring 8-3487
6 1 Small O-Ring 8-3486
7 Leads Assemblies with ATC connectors (includes switch assemblies)
1 SL100, 20 - foot Leads Assembly with ATC connector 4-7836
1 SL100, 50 - foot Leads Assembly with ATC connector 4-7837
8 1 Switch Kit 9-7031
10 1 Torch Control Cable Adapter (includes item # 11) 7-3447
11 1 Through - Hole Protector 9-8103
