Manual 0-5084 PARTS LIST
6-7

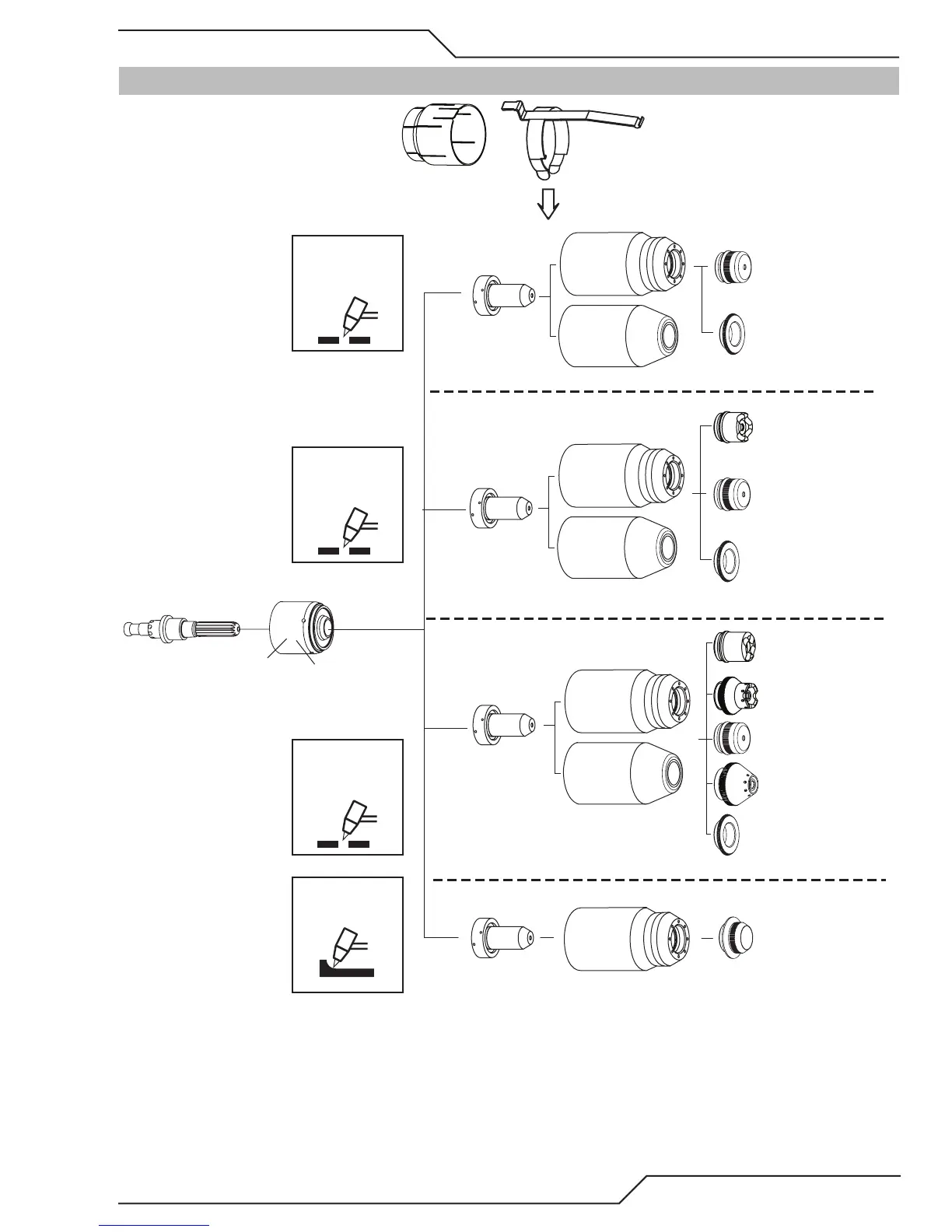

6.09 Torch Consumable Parts (SL100)
Starter
Cartridge
9-8213
Electrode
Auto 9-8232
Manual 9-8215
50-55A 9-8209
60A 9-8210
70A 9-8231
80A 9-8211
90/100A 9-8212
120A Auto 9-8233
120A Manual 9-8253
Tips:
Tips:
Tip A 9-8225 (40 Amps Max.)
Tip B 9-8226 (50 - 120 Amps)
Tip C 9-8227 (60 - 120 Amps)
Tip D 9-8228 (60 - 120 Amps)
Tip E 9-8254 (60 - 120 Amps)
Shield Cup, Gouging
9-8241
Shield
Cup Body,
9-8237
Tips:
40-120A
GOUGING
Shield
Cup Body,
9-8237
Shield Cup
9-8218
Shield Cap, Deflector
9-8243
Shield
Cup Body,
9-8237
Shield Cup
9-8218
Shield Cap, Machine
50-60A 9-8238
Drag Shield Cup
9-8235
Drag Shield Cup
70-100A 9-8236
Drag Shield Cup
120A 9-8258
Shield Cap, Machine
70-100A 9-8239
Shield Cap, Machine
120A 9-8256
Art # A-08066_AG
CUTTING
STANDOFF
70-120A
CUTTING
STANDOFF
20-40A
Shield Cap, Deflector
9-8243
50-60A
CUTTING
STANDOFF
Heavy Duty
Starter Cartridge
Non HF Only 9-8277
Shield Cap, Deflector
9-8243
Shield Cap, Machine
40A 9-8245
20A 9-8205
30A 9-8206
40A 9-8208
Shield
Cup Body,
9-8237
Shield Cup
9-8218
Tip:
Ohmic Clip
Automation Torch
9-8224
Ohmic Clip
Manual To rch
9-8259
