Manual 0-2582 65 APPENDIX

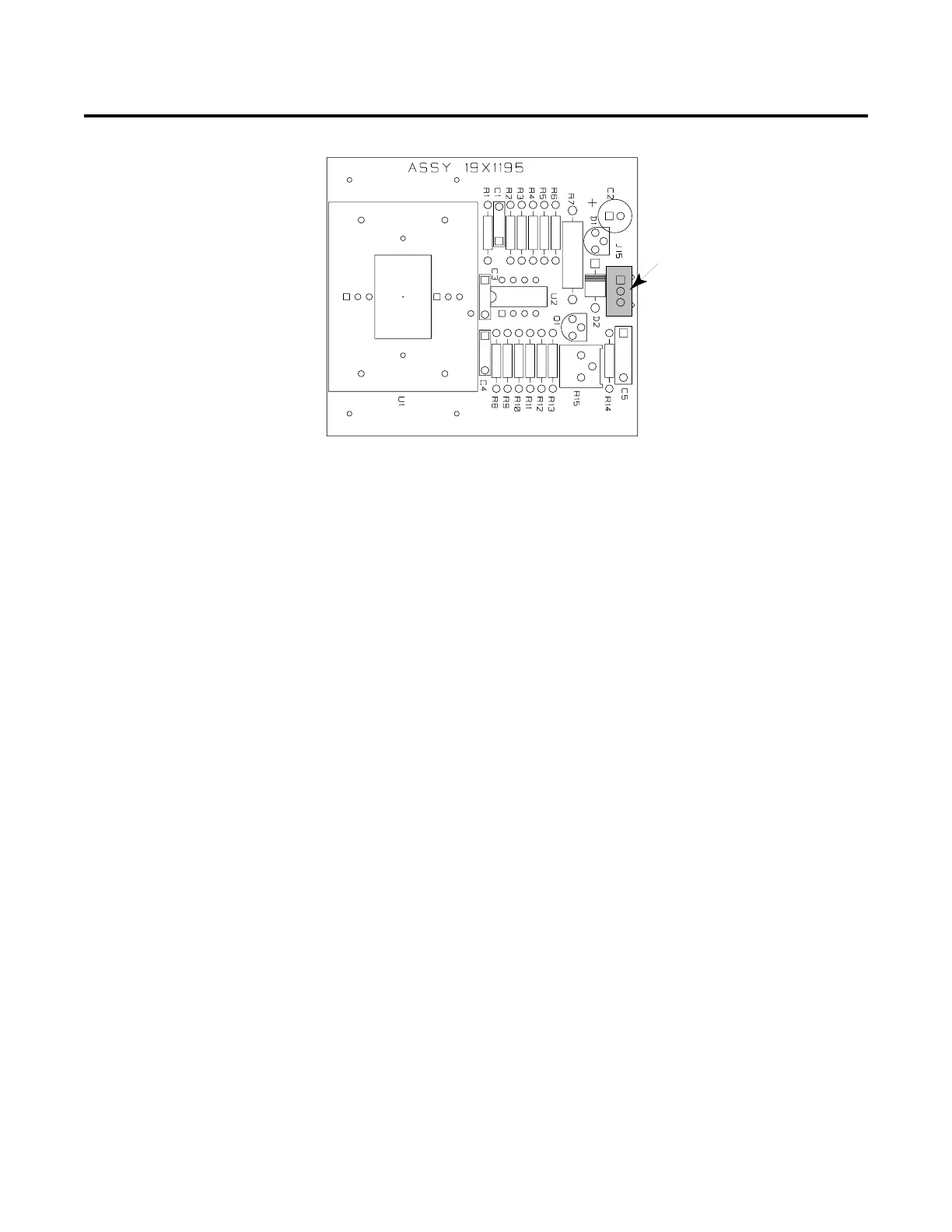

APPENDIX XI: CURRENT SENSOR PC BOARD LAYOUT
Current Sensor PC Board Signals
J15-1 Work Cable Sense
J15-2 Ground
J15-3 +12 VDC
J15
A-01419
