The sample compartment front panel has two slits through which the
tubing can be routed. The slits are located to the left and right of the
center, and open downwards. Foam baffles fit around the tubing to exclude
light from the sample compartment.

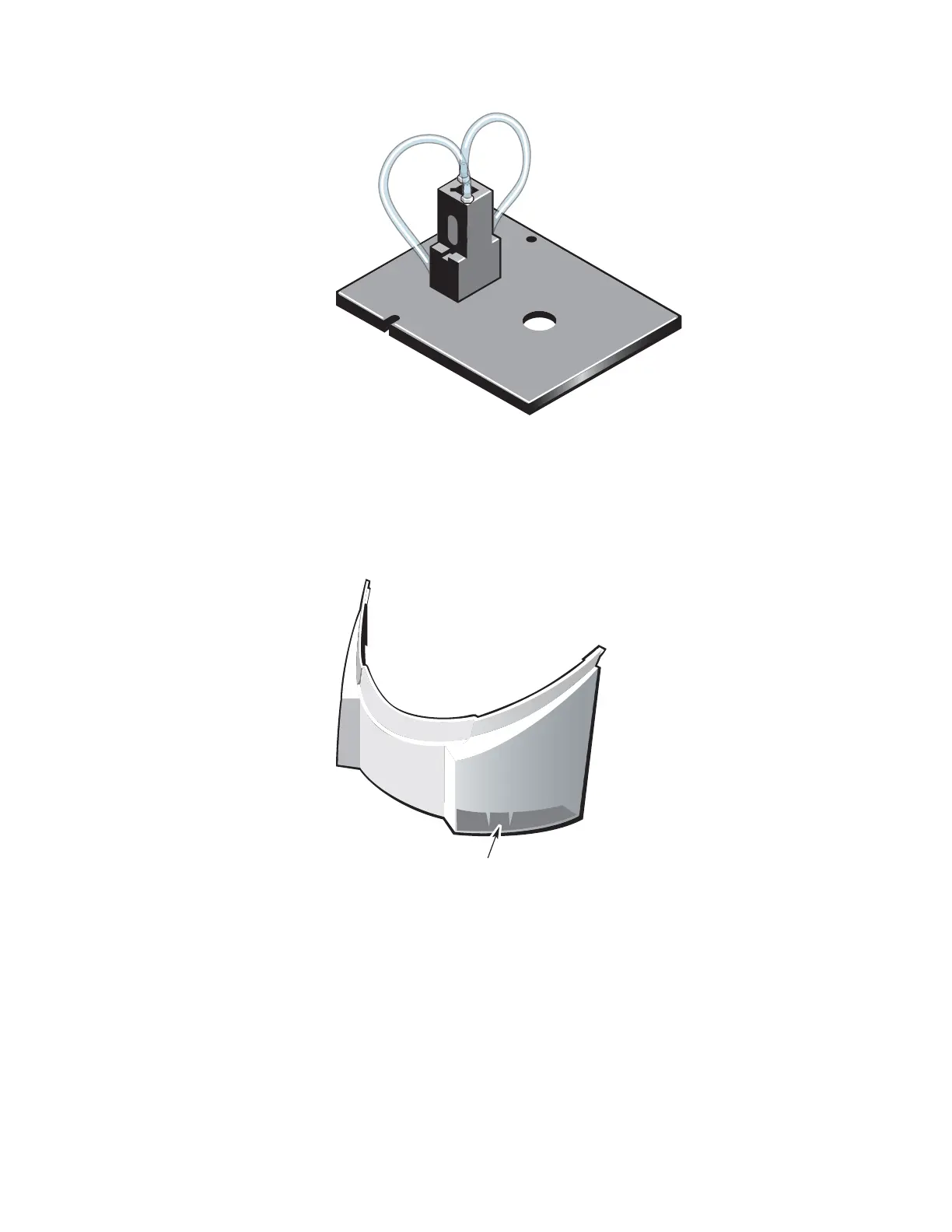

Slits on bottom of panel
Position the in and out tubes either so that they will both pass through one
port, or so that they pass on either side. Replace the sample compartment
front panel, ensuring that the tubes are correctly located in the slit(s) and
are not being pinched between the front panel and the body of the
instrument. Ensure that the tubes do not obstruct the light beam. If
necessary, secure the tubes using the self adhesive tubing clips supplied.
