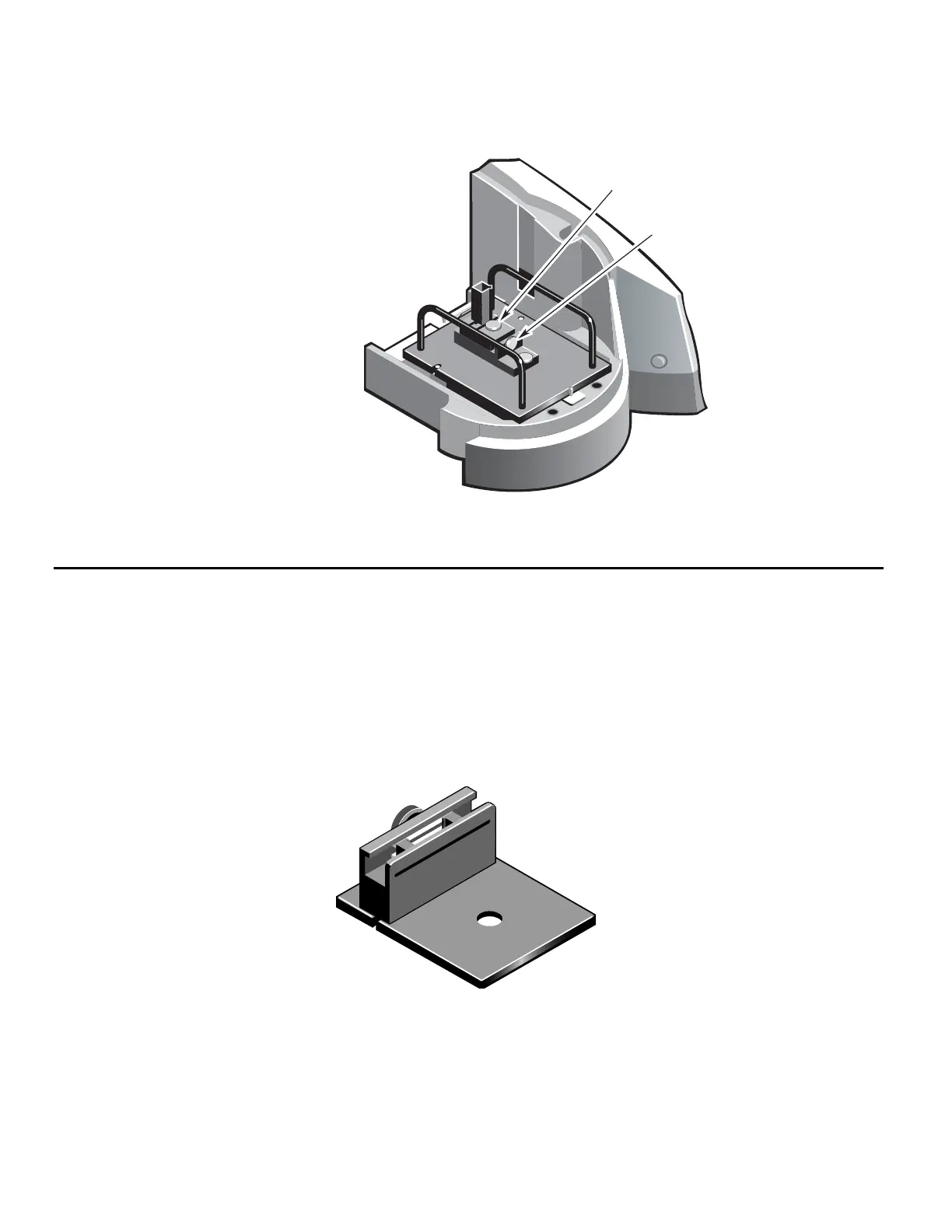

Securing screw A
Adjustme
screw B
Long pathlength rectangular cell holder
This accessory is designed to accommodate rectangular cells with
pathlengths ranging from 1 to 100 mm.
The capacity of the cell holder is adjusted by turning the knob on the
front, which alters the space between the gripping blocks.
Turn the knob until the space is longer than the pathlength required, insert
the cell and reduce the space until the cell is held securely.
Notice Do not overtighten.
12 Evolution 300 and Evolution 600 User Guide Thermo Fisher Scientific
