Thermo Scientific TSX Series User Manual

34 | Undercarriage Lighting (Optional) Ultra Low Temperature Freezers
Undercarriage Lighting (Optional)

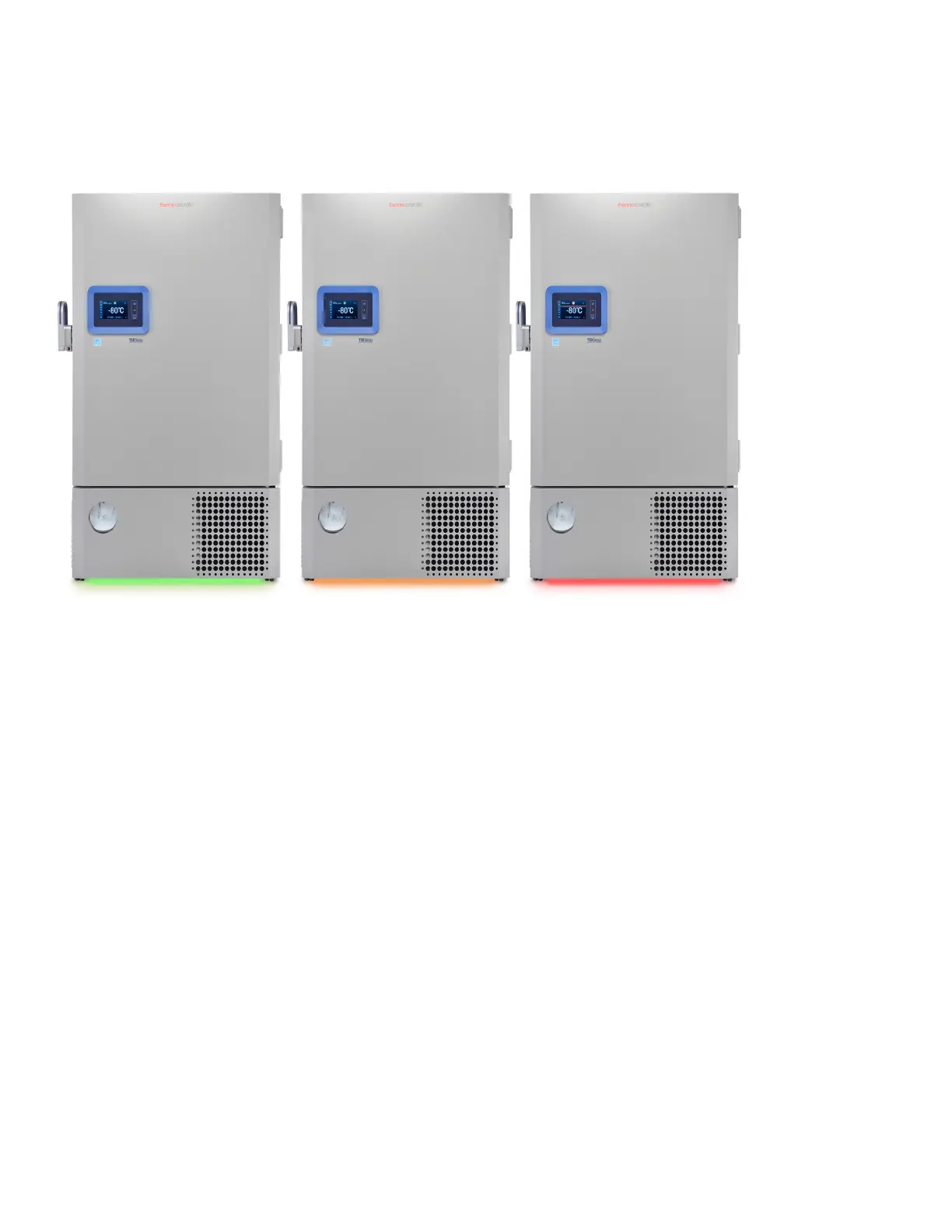

Figure 75. Undercarriage Lighting
Undercarriage lighting is intended to provide additional visual
indication of the freezer health status. The lighting displayed is
synchronized with the health status indication displayed on
the freezer's user interface.
There are three colors that may be displayed in the
undercarriage system:
• Green (healthy),
• Orange (warning)
• Red (alarm).
For a list of all alarms and warnings, refer Appendix A: Alarm
Summary.
Additionally, when the freezer door is opened (prior to a door
ajar alarm), the undercarriage lighting system will slowly flash
Orange to indicate the door is open.
In the event of a Power Failure, the undercarriage lighting
system will automatically turn off to conserve main battery life
maintaining user interface temperature display.
Modification of
Undercarriage Lights
Settings
Turning undercarriage lights on and off:
1. Go To Settings > Display Settings.
2. Enable or Disable LED Lights.
Turning green lights (healthy status) lights on and off:
1. Go To Settings > Display Settings.
2. Enable or Disable Green Light Indication.
Running green health lights can reduce the life expectancy of
the LED light system.

Thermo Scientific TSX Series Specifications

General

Type	Laboratory Refrigerator
Cooling Type	Forced air cooling
Defrost Type	Automatic
Door Type	Solid or glass door options
Controller Type	Microprocessor
Certifications/Compliance	UL, CE
Energy Consumption	Varies by model; refer to product specification sheet
Voltage	115V
Exterior Dimensions (H x W x D)	Varies by model; refer to product specification sheet
Interior Dimensions (H x W x D)	Varies by model; refer to product specification sheet
Weight	Varies by model; refer to product specification sheet
Shelves	Adjustable shelves
Energy Efficiency	Energy Star certified models available
