Ultra Low Temperature Freezers Start Up | 11
Initial Start Up
To start up the freezer, complete the following steps:
1. Plug the freezer into the power outlet.
2. Turn the power switch behind the freezer, on the bottom
right, to the ON position.
3. Once the freezer is powered on, the Thermo Scientific
logo is displayed on the front screen. If this is the first time
the unit is being turned on, an initial setup must be
completed. Press the Start Setup button to initiate the
setup.

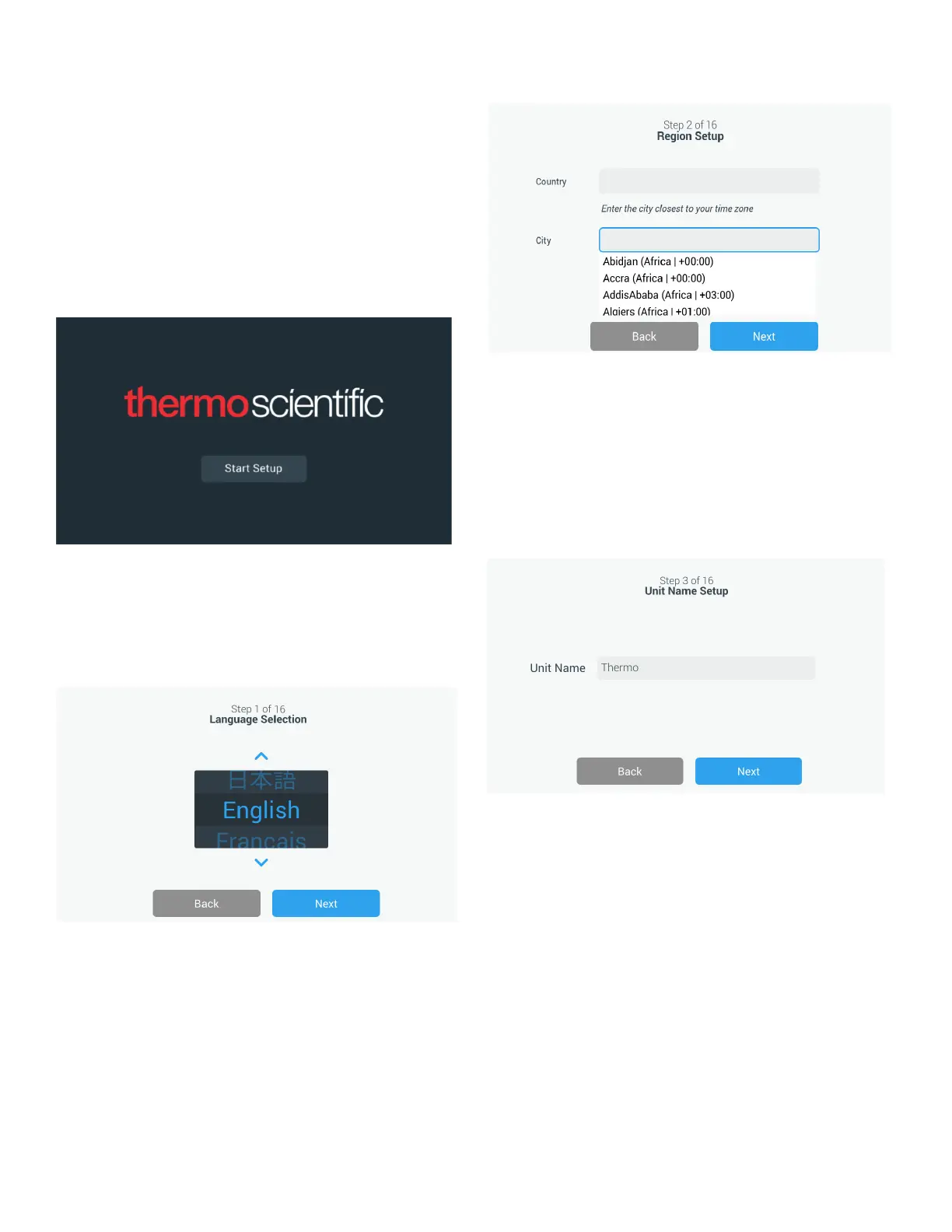

Figure 3. Main Screen
The first step of the setup is to select the language. This
screen allows you to specify the preferred display language.
Once the language is selected, press the Next button.
Figure 4. Language Selection Screen
The next screen allows you to select your location. Enter the
name of the city and select from the list of suggestions
displayed.
After selecting the region, press the Next button.
Figure 5. Region Setup Screen
When entering your “City” into Region Setup screen, refer
Appendix C: City Time Zone. Follow the table to select the
city closest to your time zone.
The next screen allows you to identify an individual freezer by
specifying a Unit Name. After entering a name, press the Next
button.
Figure 6. Unit Name Setup Screen
The next few screens allow you to setup a wireless
connection to store information on InstrumentConnect.
To fully connect your new unit, you will need to:
1. Connect the unit to a wireless network allowing data to
be sent to Thermo Fisher Connect.
2. Log in to Thermo Fisher Connect (web or app) and link
the unit to your account via InstrumentConnect.
Note: Before you begin, establish a Thermo Fisher Connect
account and have your network login information available.
Refer Connectivity Requirements for details.
