GENERAL INFORMATION 15

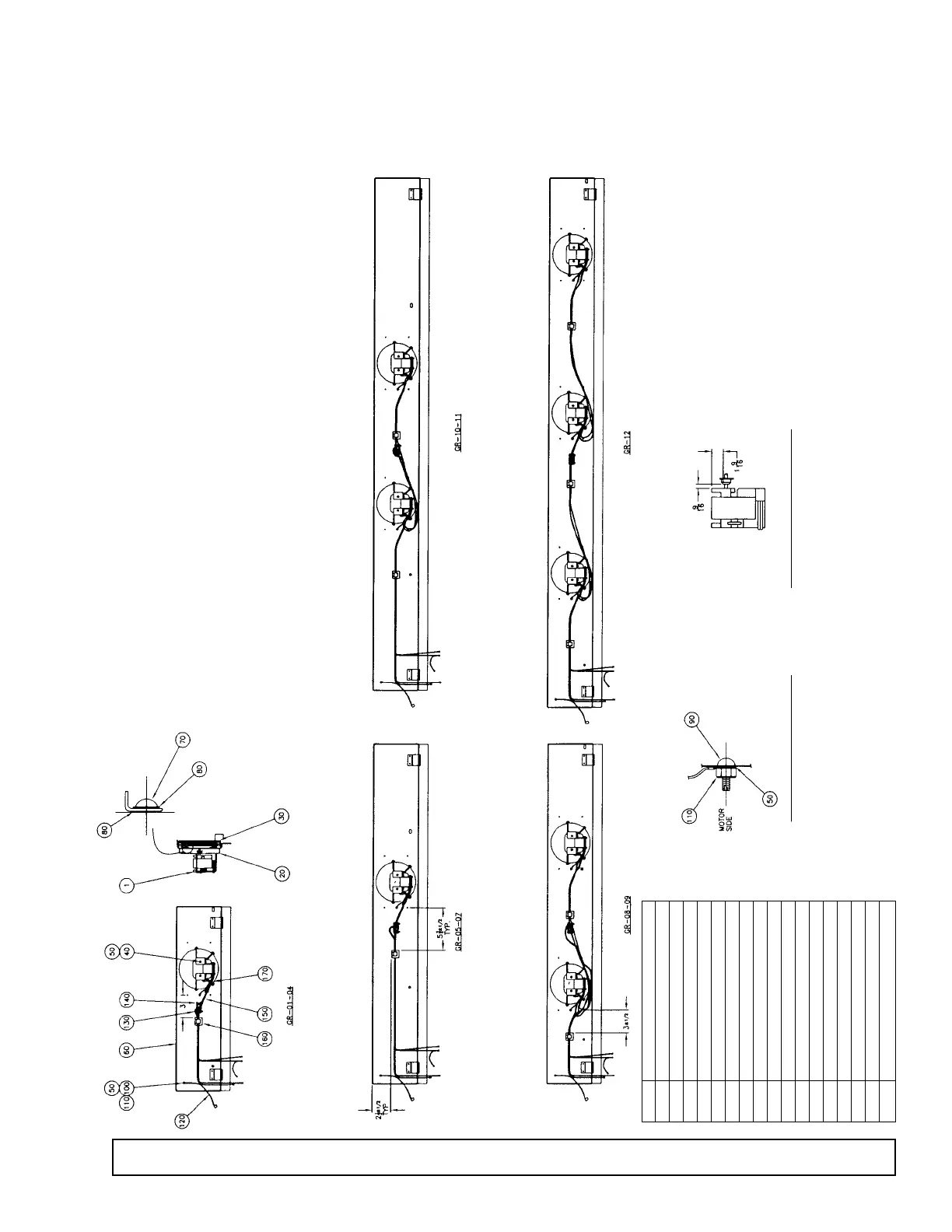

EVAPORATOR FAN SHROUD ASSEMBLY Component Identification
Models: 3771 / 3773 / 3775 / 3777 / 3779 / 3785 / 3787
Export Models: 3772 / 3774 / 3776 / 3778 / 3780 / 3786 / 3788
SEQ DESCRIPTION
10 MOTOR
20 FAN BLADE
30 FAN GUARD
40 SCREW
50 STAR WASHER
60 SHROUD, FAN
70 SCREW
80 WASHER
90 SCREW
100 HEX NUT
110 GROUND LEAD
120 HARNESS, DRAIN HEATER
130 STRAIN RELIEF
140 FAN HARNESS
150 CORD CLIP
160 WIRE TIE
170 BRACKET, HANGER DRAIN PAN
GROUND LEAD DETAIL
TYPICAL 2 PLACES
FAN MOUNTING DETAIL
INSTALL FAN BLADE WITH HUB
TOWARD MOTOR LOCATED TO
DIMENSION SHOWN.
