METERING DEVICE REPLACEMENT

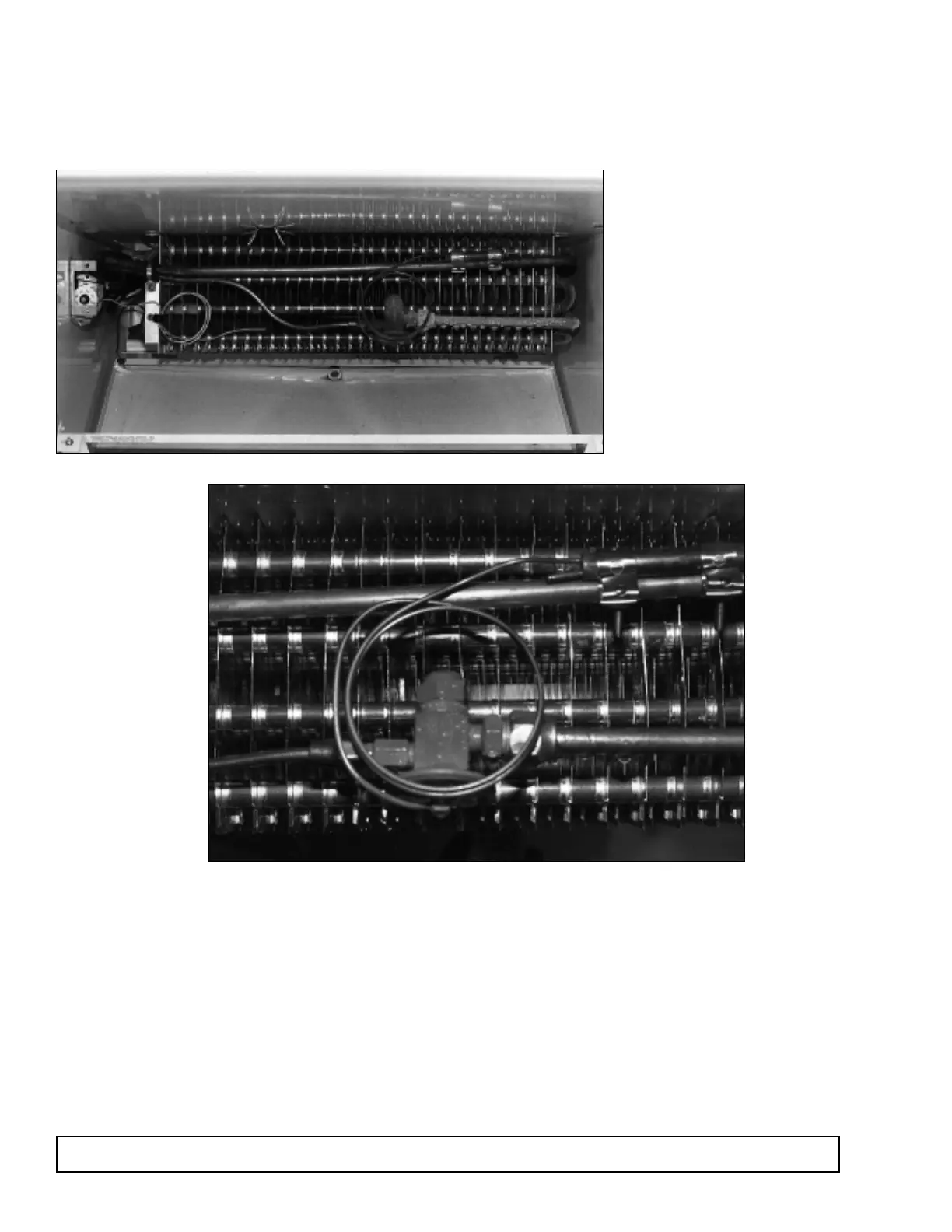

The refrigerant metering device in this cabinet is expan-
sion valve. It is a Sporlan BIF 1/4-C. It is located on the
face of the evaporator coil behind the drain pan.
1. Disconnect power to the cabinet.
2. Remove the evaporator drain pan.
3. Isolate the valve from the remainder of the system.
4. Remove the valve and replace with exact part num-
ber new valve.
5. Reposition the sensing bulb in original location.
6. Replace the drain pan.
7. Reconnect power to the cabinet.
48 MAINTENANCE & REPAIR
