CONDENSER FAN MOTOR REPLACEMENT

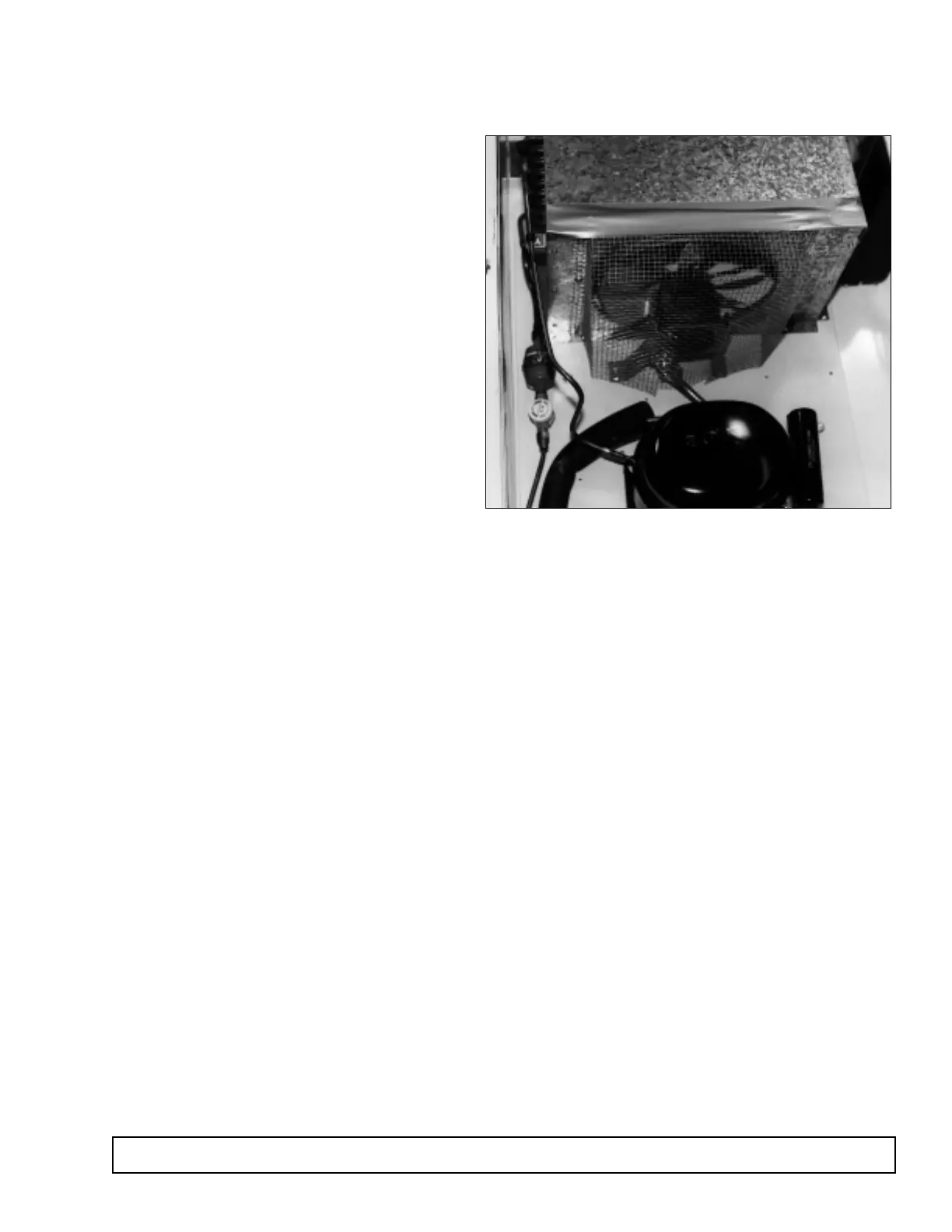

The condenser fan motor is located directly behind the
condenser coil in the machinery compartment.
1. Disconnect the power to the cabinet.
2. Remove the front top panel.
3. Remove the metal screen fan guard.
4. Disconnect the wire at the junction box.
5. Remove the motor from the fan motor
mounting bracket.
6. Replace with correct motor.
7. Reconnect the wires at the junction box.
8. Replace the fan guard screen.
9. Replace the front top panel.
10. Reconnect the power to the cabinet.
MAINTENANCE & REPAIR 49
