TORSION ROD HINGED DOORS - Maintenance & Removal
GLASS DOOR CABINETS ONLY
MAINTENANCE - ALIGNING DOORS
Proper alignment of the cabinet doors will eliminate
hinge binding and provide correct gasket seal.
1. Check the cabinet level and door alignment by
firmly closing each door. Observe the movement of
the other doors. They should open slightly, then
close and seal.
2. The hinge wings fastened to the cabinet door have
slotted mounting holes for adjustment.
3. Additional adjustment can be made by adding
shims between the hinge wing and either the door
or the cabinet face.
REMOVING DOORS:

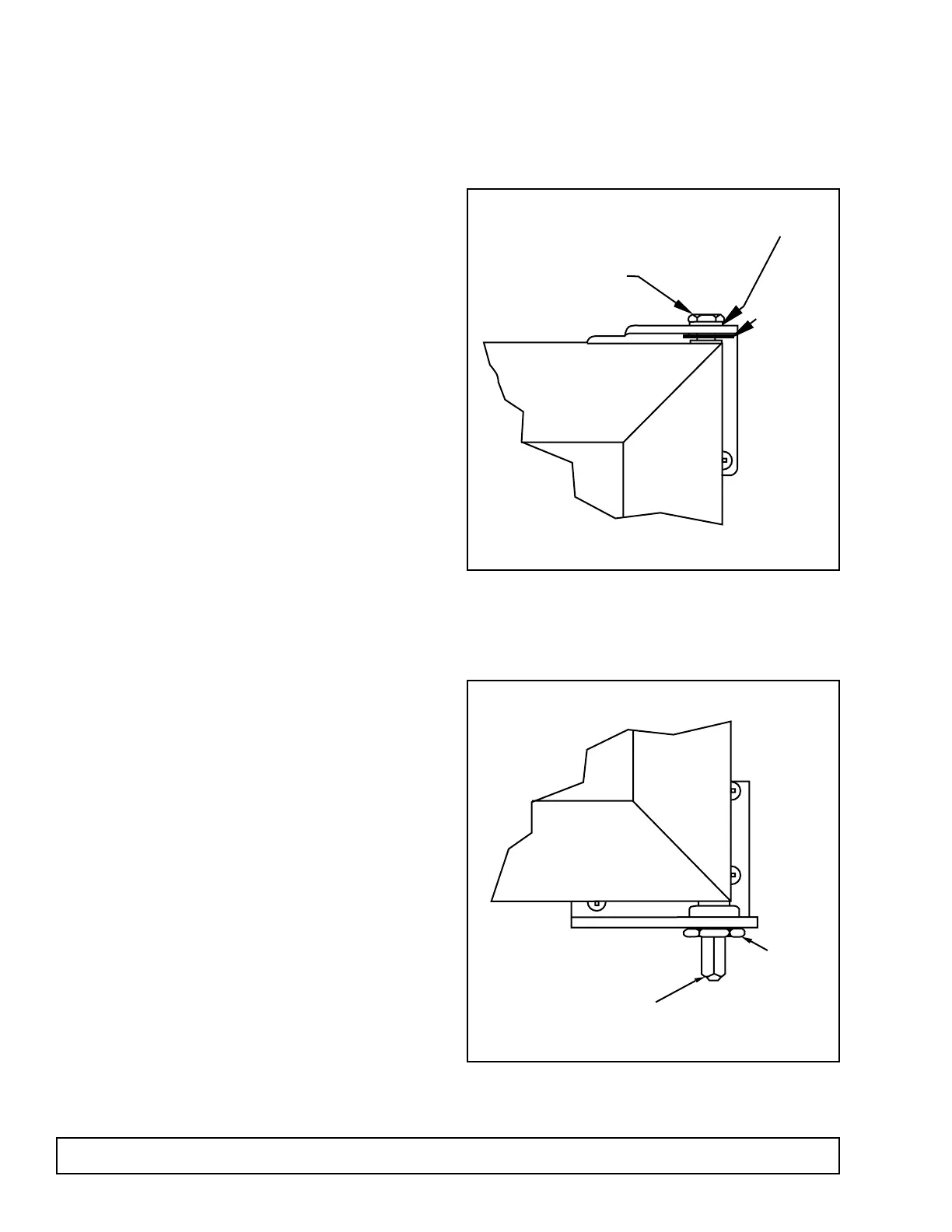

1. Loosen lower hex nut (Nut “A”) and release tension
on the torsion rod.
2. Remove the hitch pin from the upper hinge pin.
3. Hold the door steady and unscrew the pin at top of
the door.The door can now be lifted out of the lower
hinge- bracket
REINSTALLING DOORS:
1. Set lower square shaft on door in lower hinge brack-
et
2. Insert top hinge pin and tighten to 12 ft./lbs. torque.
NOTE: Washer must be in place so top pin will not loosen
and disconnect from door hinge.
3. Insert hitch pin through hole in upper hinge pin.
4. Run Nut “A” up snug. (You may have to loosen Nut
“A” as you tighten tension as noted in Step 5 )
5. Set tension on door by turning square shaft in the
direction the door closes. Set tension so that the
door will self close when opened approximately 1”
(Do not overtighten so door will slam.) Tighten Nut
“A” so tension can be maintained.
TORQUE ROD REMOVAL
1. Loosen Nut “A” and remove door.
2. Attach vice grip to shaft and drive rod form door.
3. Insert new rod assembly into aluminum from slot
provided.
4. Reattach Nut “A”.
46 MAINTENANCE & REPAIR
