ELECTRICAL & REFRIGERATION INFORMATION 31

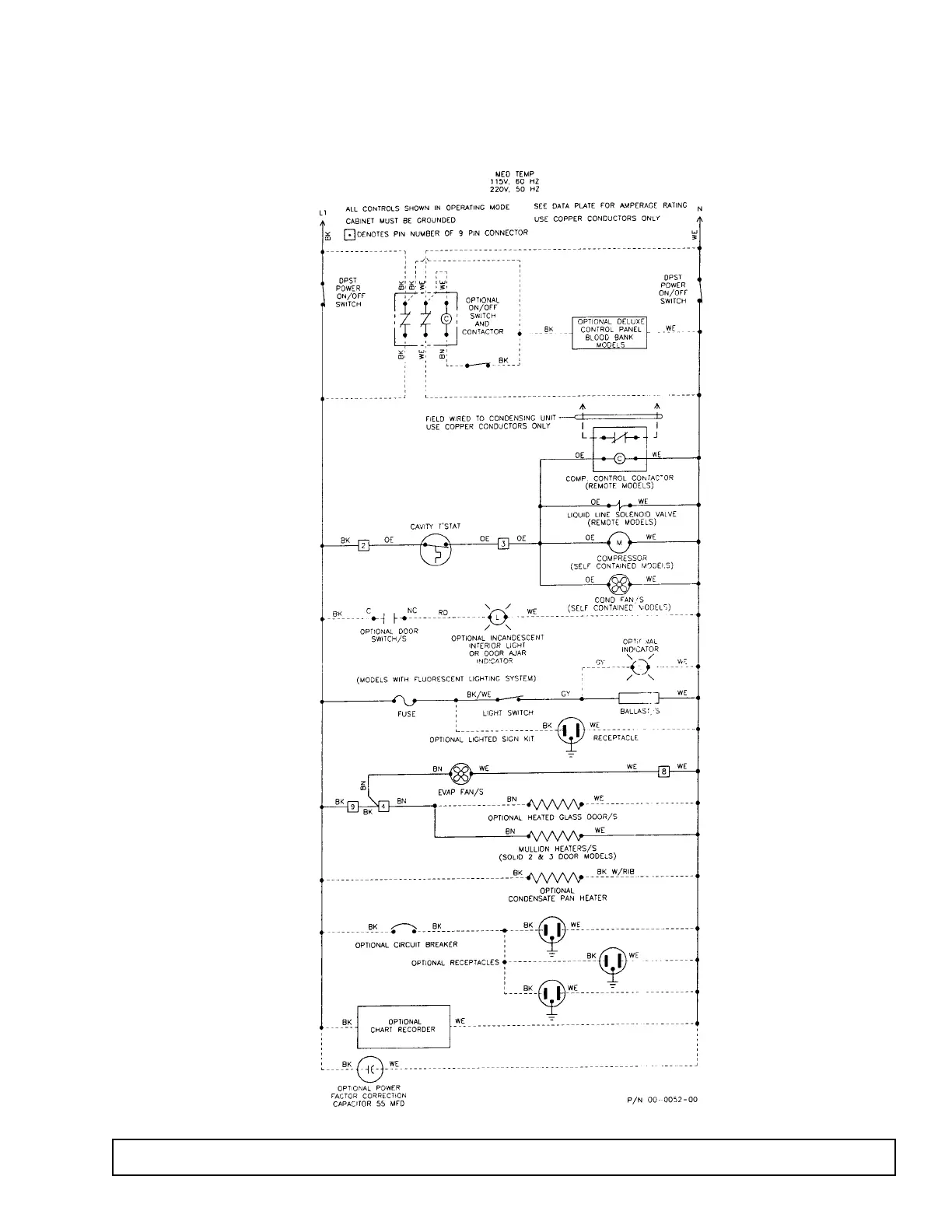

LADDER WIRING DIAGRAM
Models: 3771 / 3773 / 3775 / 3777 / 3779 / 3785 / 3787
Export Models: 3772 / 3774 / 3776 / 3778 / 3780 / 3786 / 3788
*See page 33 for information
on transformer.
