ThinkPad R500 - 1060 Keyboard

1060 Keyboard

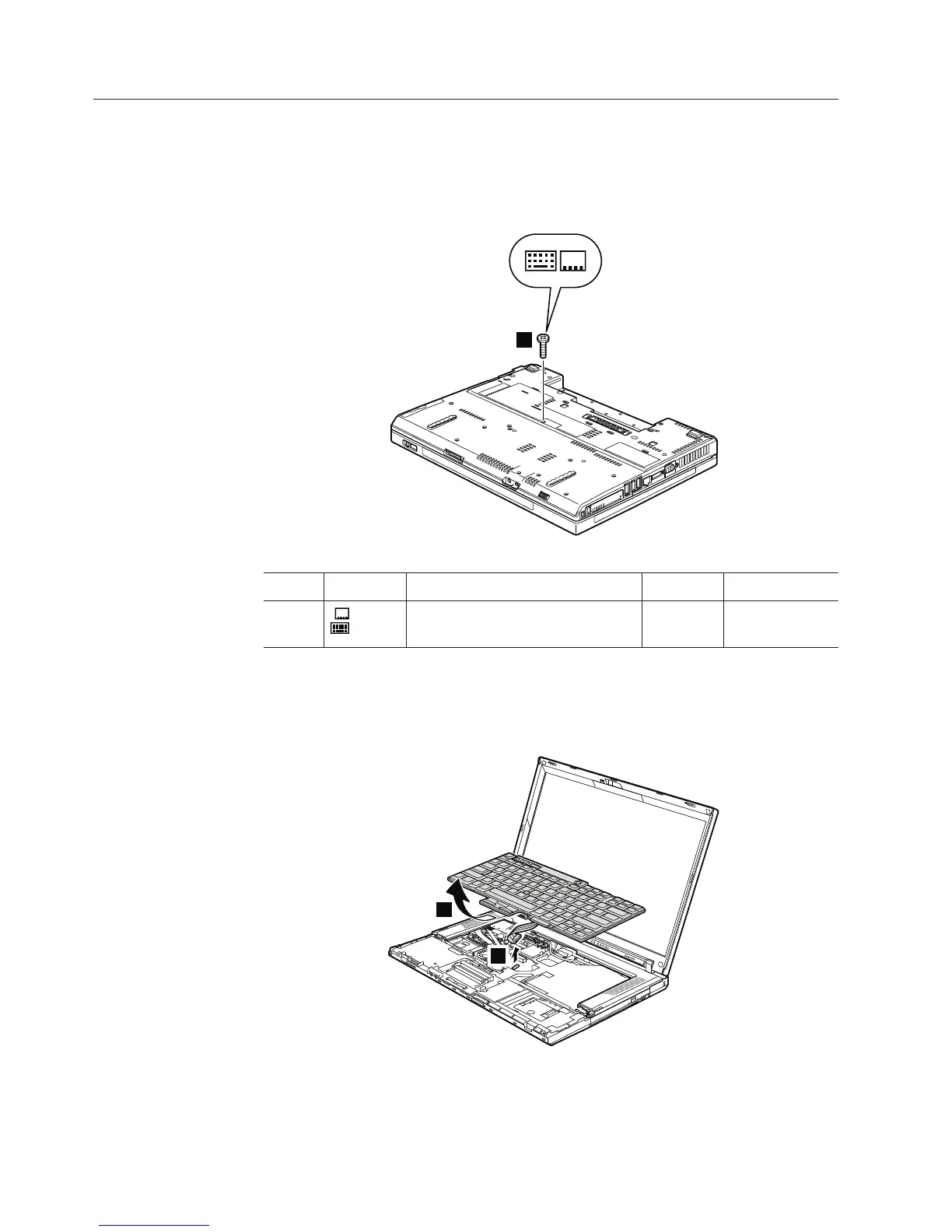

For access, remove these FRUs, in order:
v “1010 Battery pack” on page 84
v “1040 Palm rest or palm rest with fingerprint reader” on page 88
Table 14. Removal steps of keyboard
1
Step Icon Screw (quantity) Color Torque
1
M2 × 17 mm, flat-head,
nylon-coated (1)
Black 0.167 Nm
(1.7 kgfcm)
Lift the keyboard a little in the direction shown by arrow 2, and then detach
the connector 3.
3
2
92 ThinkPad R500 Hardware Maintenance Manual
