1050 DIMM
For access, remove these FRUs, in order:
v “1010 Battery pack” on page 84
v “1040 Palm rest or palm rest with fingerprint reader” on page 88

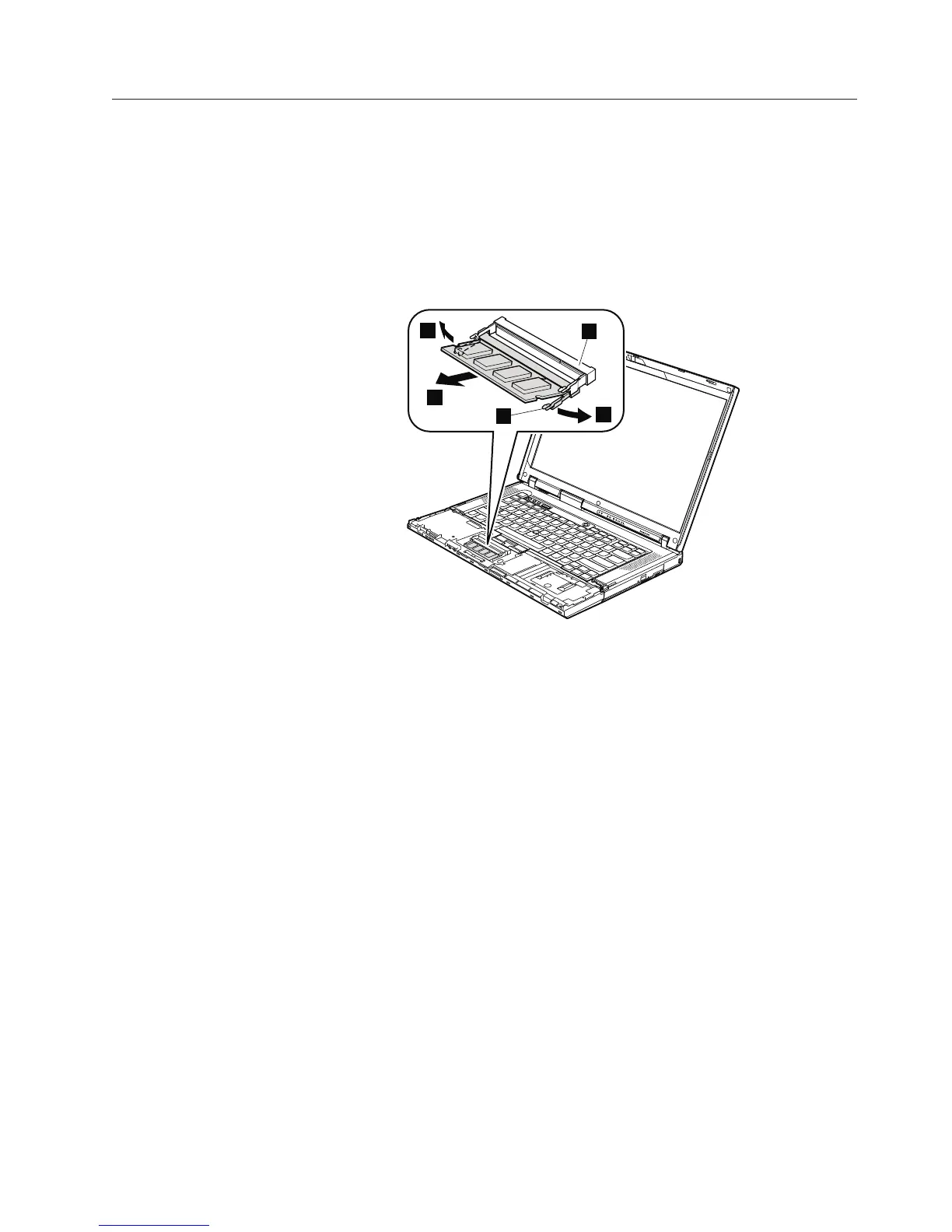

Table 13. Removal steps of dimm
Note: If only one DIMM is used on the computer you are servicing, the card
must be installed in SLOT-0 (a), but not in SLOT-1 (b).
1
2
a
1
b
When installing: Insert the notched end of the DIMM into the socket. Press the
DIMM firmly, and pivot it until it snaps into the place. Make sure that it is
firmly fixed in the slot and does not move easily.
Removing and replacing a FRU 91
