Table 12. Removal steps of palm rest (continued)

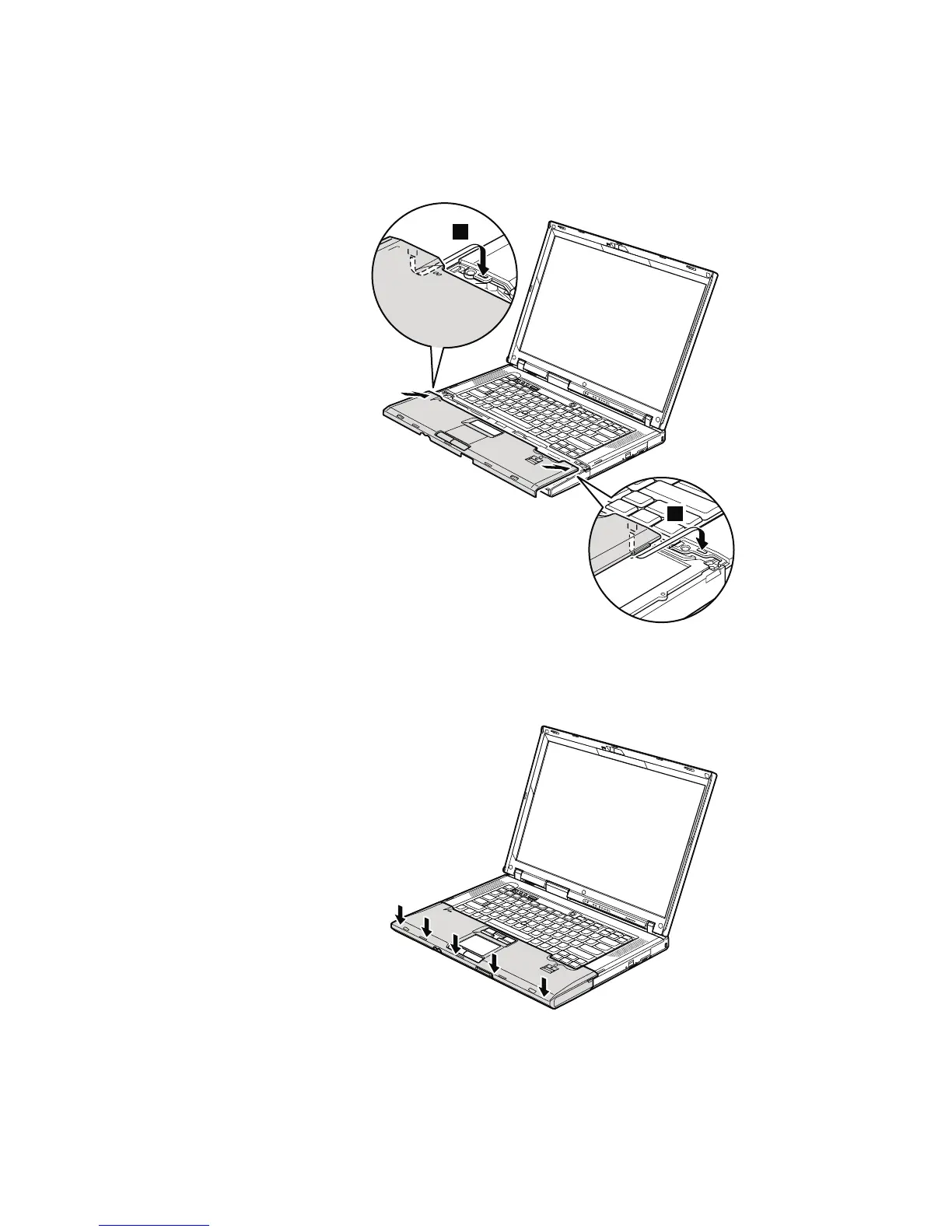

2. Attach the palm rest so that the two projections of the palm rest (a) firmly
fit into the guide holes of the keyboard bezel as shown in this figure.
a
a
3. Push the front side of the palm rest until it clicks into place.
4. Close the LCD cover and turn the computer over. Then fasten the four screws
to secure the palm rest.
90 ThinkPad R500 Hardware Maintenance Manual
