ThinkPad R500 - 1130 LCD Assembly

1130 LCD assembly
For access, remove these FRUs, in order:
v “1010 Battery pack” on page 84
v “1040 Palm rest or palm rest with fingerprint reader” on page 88
v “1060 Keyboard” on page 92
v “1070 PCI Express Mini Card for wireless LAN” on page 94
v “1100 Keyboard bezel and speakers” on page 100

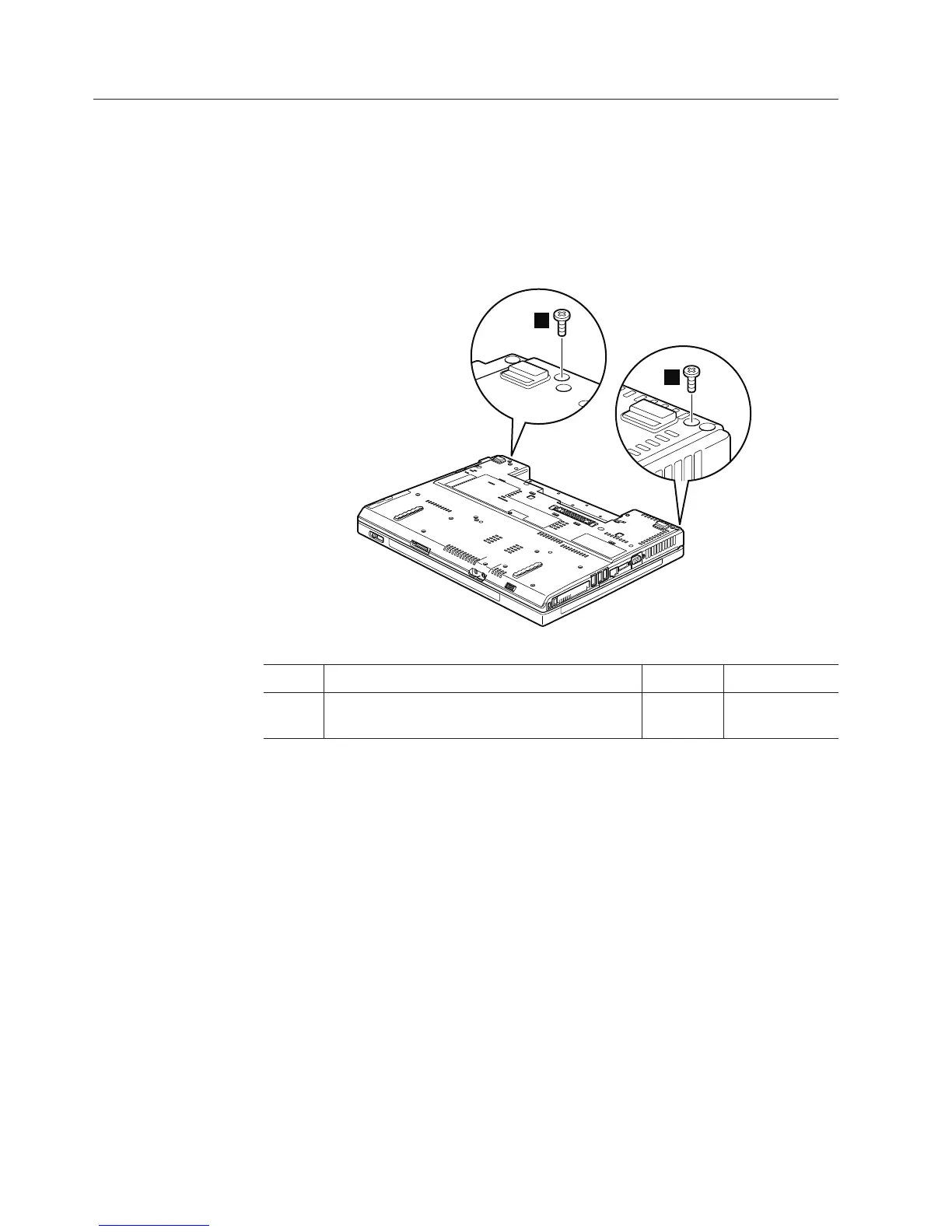

Table 21. Removal steps of LCD assembly
1
1
Step Screw (quantity) Color Torque
1 M2 × 9.5 mm, flat-head, nylon-coated (2) Black 0.167 Nm
(1.7 kgfcm)
108 ThinkPad R500 Hardware Maintenance Manual
