ThinkPad R500 - Rear View

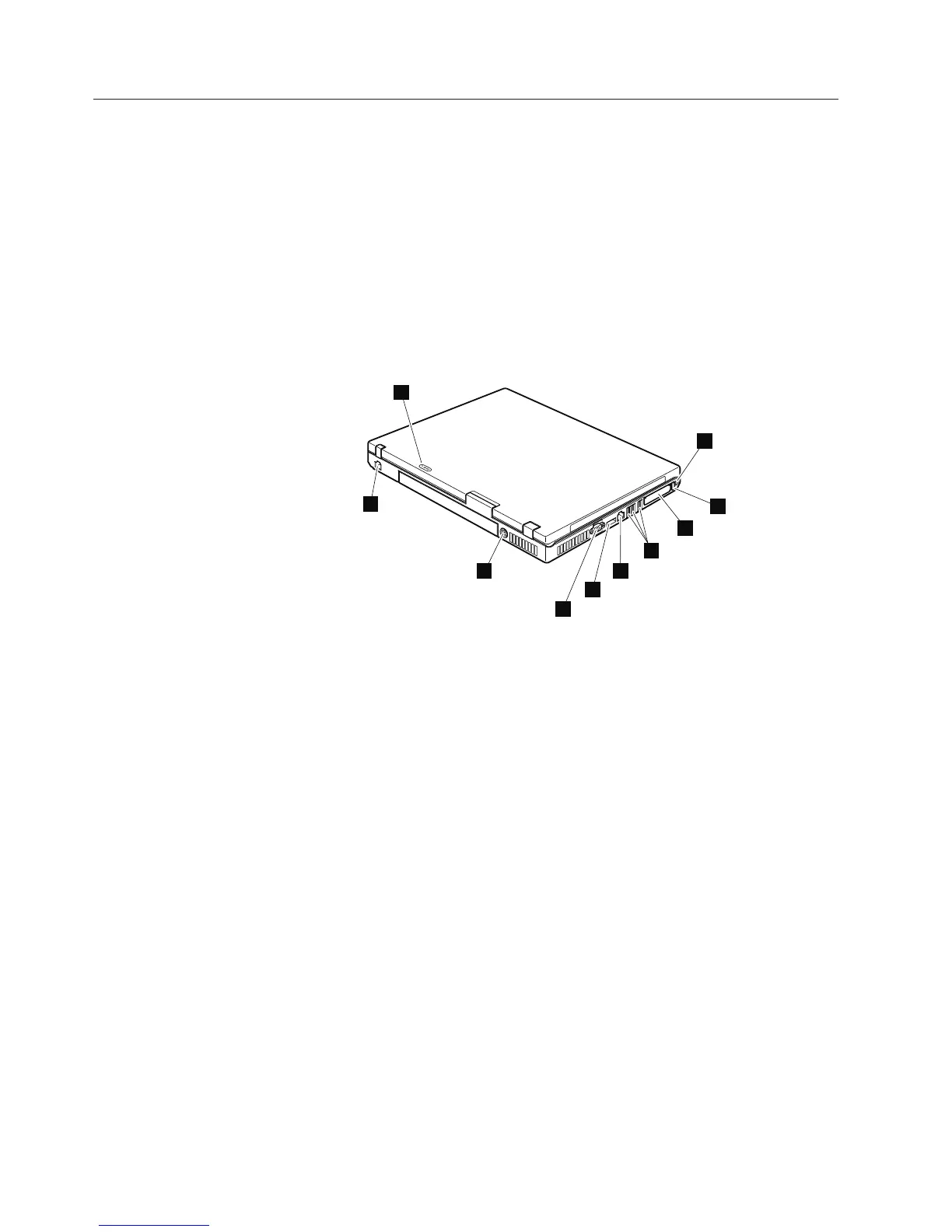

Rear view
1 Status indicators
Note: For the description of each indicator, see “Status indicators” on page
71.
2 IEEE 1394 connector
3 PC Card/ExpressCard/Smart Card slots eject buttons
4 PC Card/ExpressCard/Smart Card slots
5 USB connector
6 RJ-45 (Ethernet) connector
7 Display Port
8 External monitor connector
9 AC power connector
10 RJ-11 (modem) connector
1
2
6
7
8
4
5
3
9
10
138 ThinkPad R500 Hardware Maintenance Manual
