1110 Fan assembly
For access, remove these FRUs, in order:
v “1010 Battery pack” on page 84
v “1040 Palm rest or palm rest with fingerprint reader” on page 88
v “1060 Keyboard” on page 92
v “1100 Keyboard bezel and speakers” on page 100

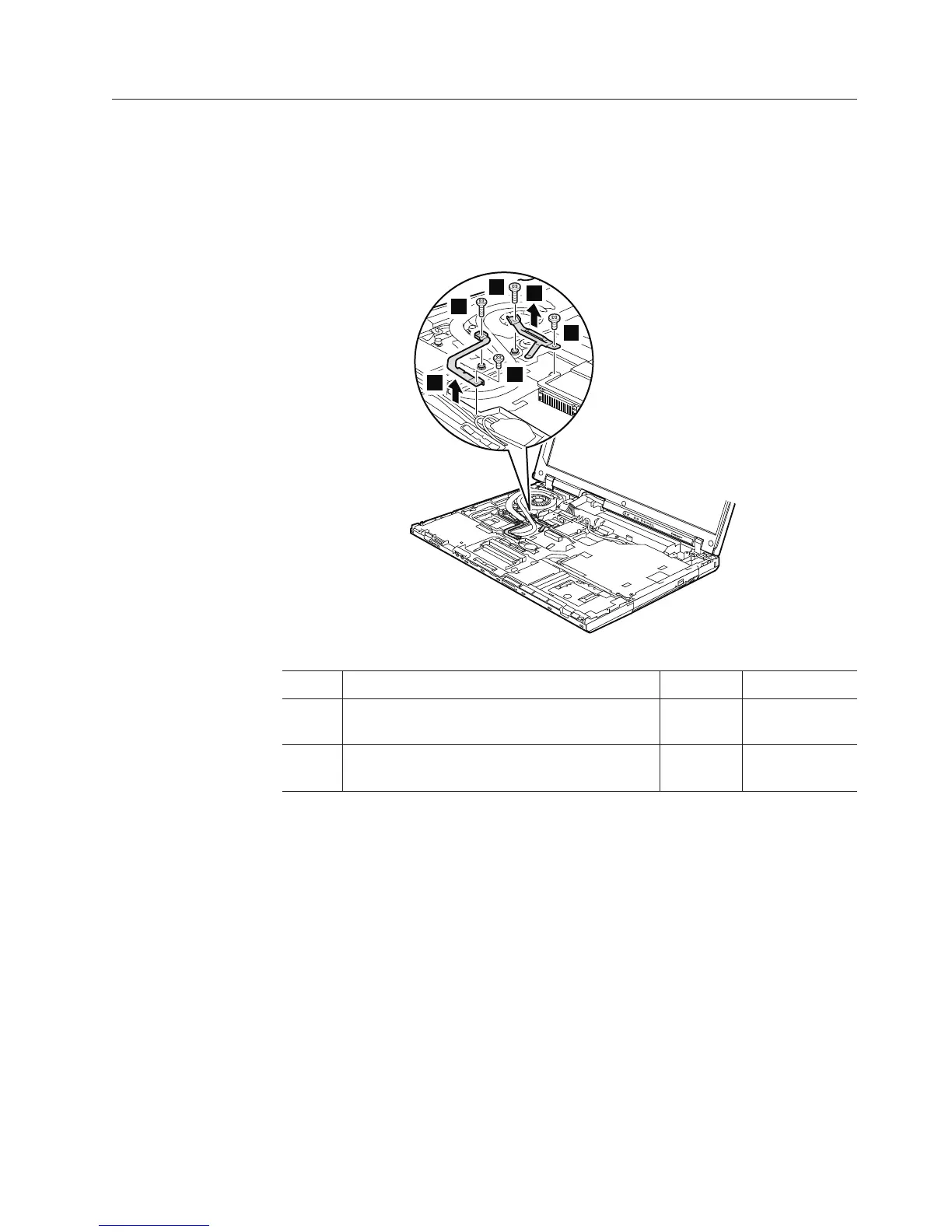

Table 19. Removal steps of fan assembly
3
2
1
3
1
2
Step Screw (quantity) Color Torque
1 M2 × 3 mm, flat-head, nylon-coated (2) Silver 0.167 Nm
(1.7 kgfcm)
2 M2 × 9.5 mm, flat-head, nylon-coated (2) Black 0.167 Nm
(1.7 kgfcm)
Removing and replacing a FRU 103
