ThinkPad R500 - 1070 PCI Express Mini Card for Wireless LAN

1070 PCI Express Mini Card for wireless LAN
For access, remove these FRUs, in order:
v “1010 Battery pack” on page 84
v “1040 Palm rest or palm rest with fingerprint reader” on page 88
v “1060 Keyboard” on page 92

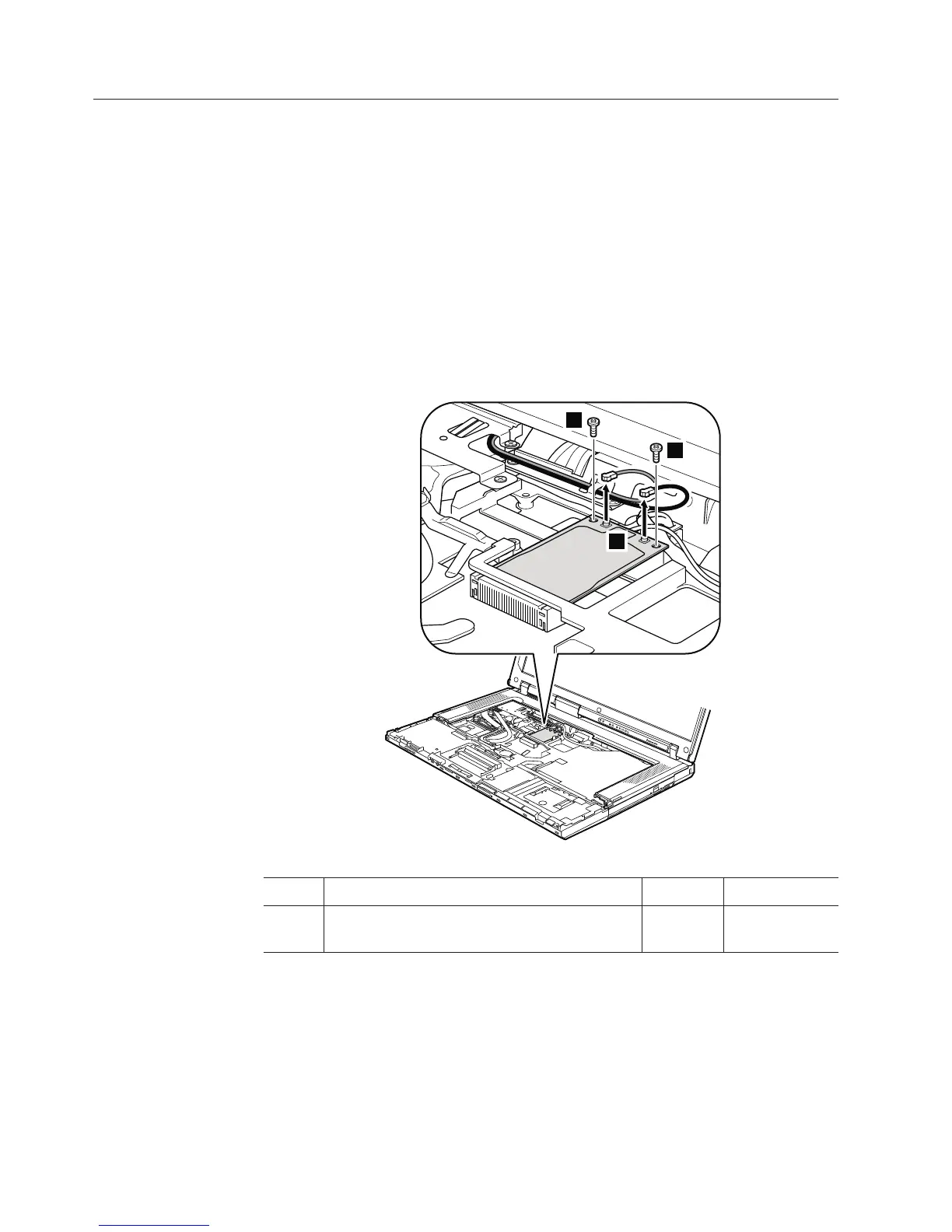

Table 15. Removal steps of PCI Express Mini Card for wireless LAN
Full size PCI Express Mini card: .
In step 1, unplug the jacks by using the removal tool antenna RF connector
(P/N: 08K7159) or pick the connectors with your fingers and gently unplug
them in direction of the arrow.
Note: Some models might have three antenna cables in step 1.
1
2
2
Step Screw (quantity) Color Torque
2 M2 × 9.5 mm, flat-head, nylon-coated (2) Black 0.167 Nm
(1.7 kgfcm)
94 ThinkPad R500 Hardware Maintenance Manual
