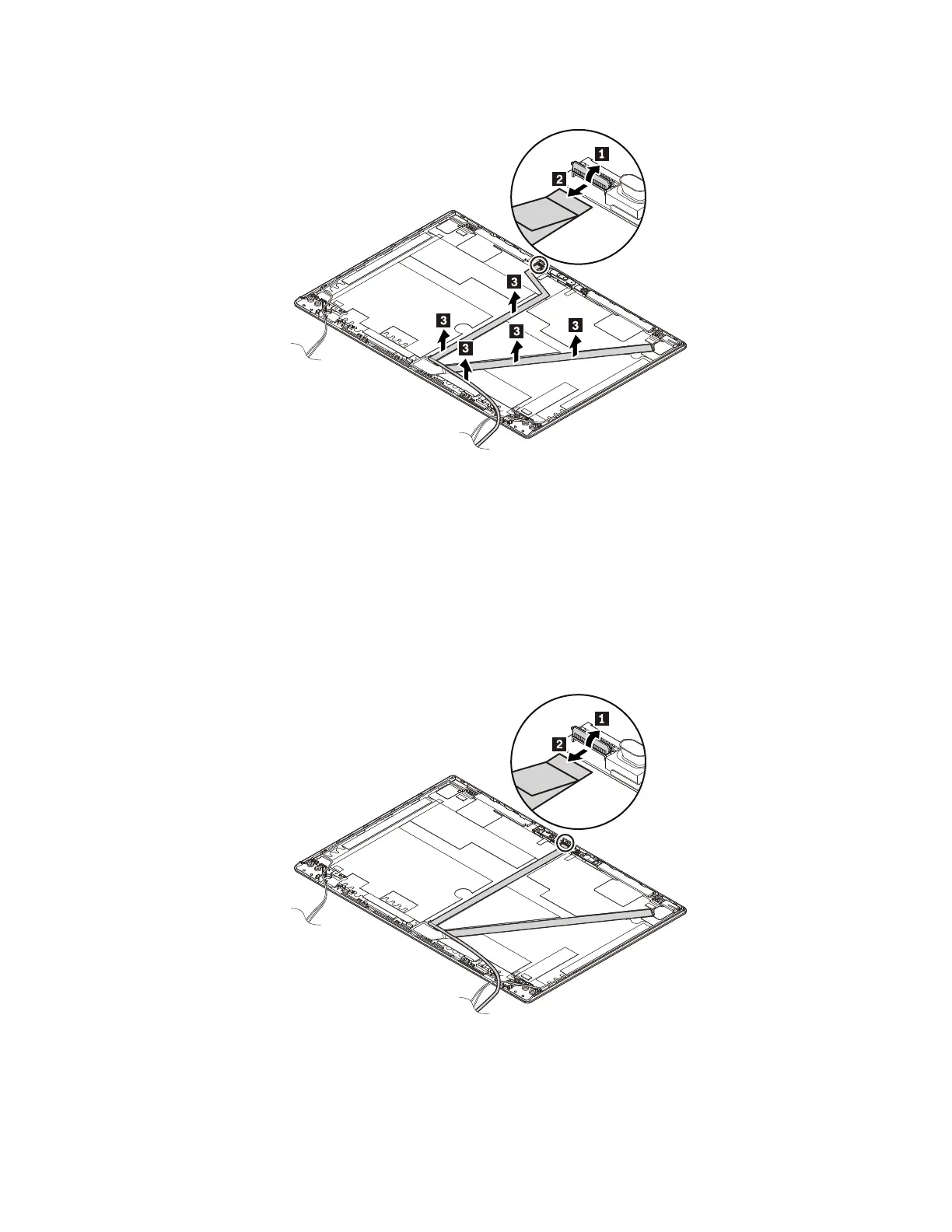

Removal step of the LED/camera cable
2050 Camera card and LED/camera cable (for models with infrared
camera)
For access, remove these FRUs:
“1020 Base cover assembly” on page 67
“1210 LCD unit” on page 89
“2010 LCD bezel cover and LCD bezel” on page 93
“2020 LCD panel and LCD cable assembly” on page 93
“2030 Hinge kit” on page 94
Removal step of the camera card
Chapter 8. Removing or replacing a FRU 97
