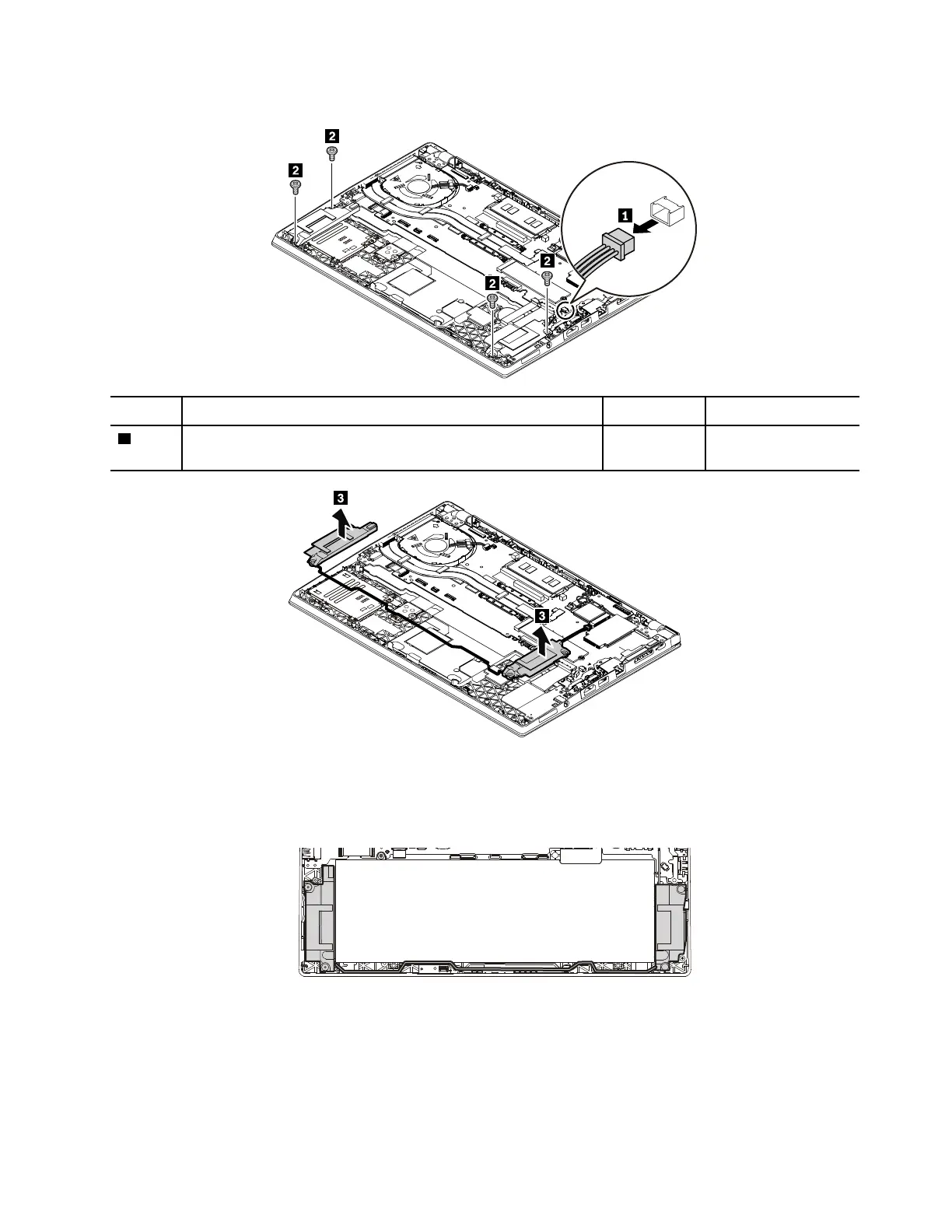

Removal steps of the speaker assembly
Step Screw (quantity) Color
Torque
2
M2 × 2.3 mm, flat-head, nylon-coated (4)
Black 0.181 Nm
(1.85 kgf-cm)
When installing:
• Ensure that the connector is attached firmly.
• Ensure that the cables are routed as shown.
1130 Smart card reader assembly or dummy smart card reader
For access, remove these FRUs in order:
• “1020 Base cover assembly” on page 67
• “1100 Built-in battery” on page 74
• “1120 Speaker assembly” on page 76
Chapter 8. Removing or replacing a FRU 77
