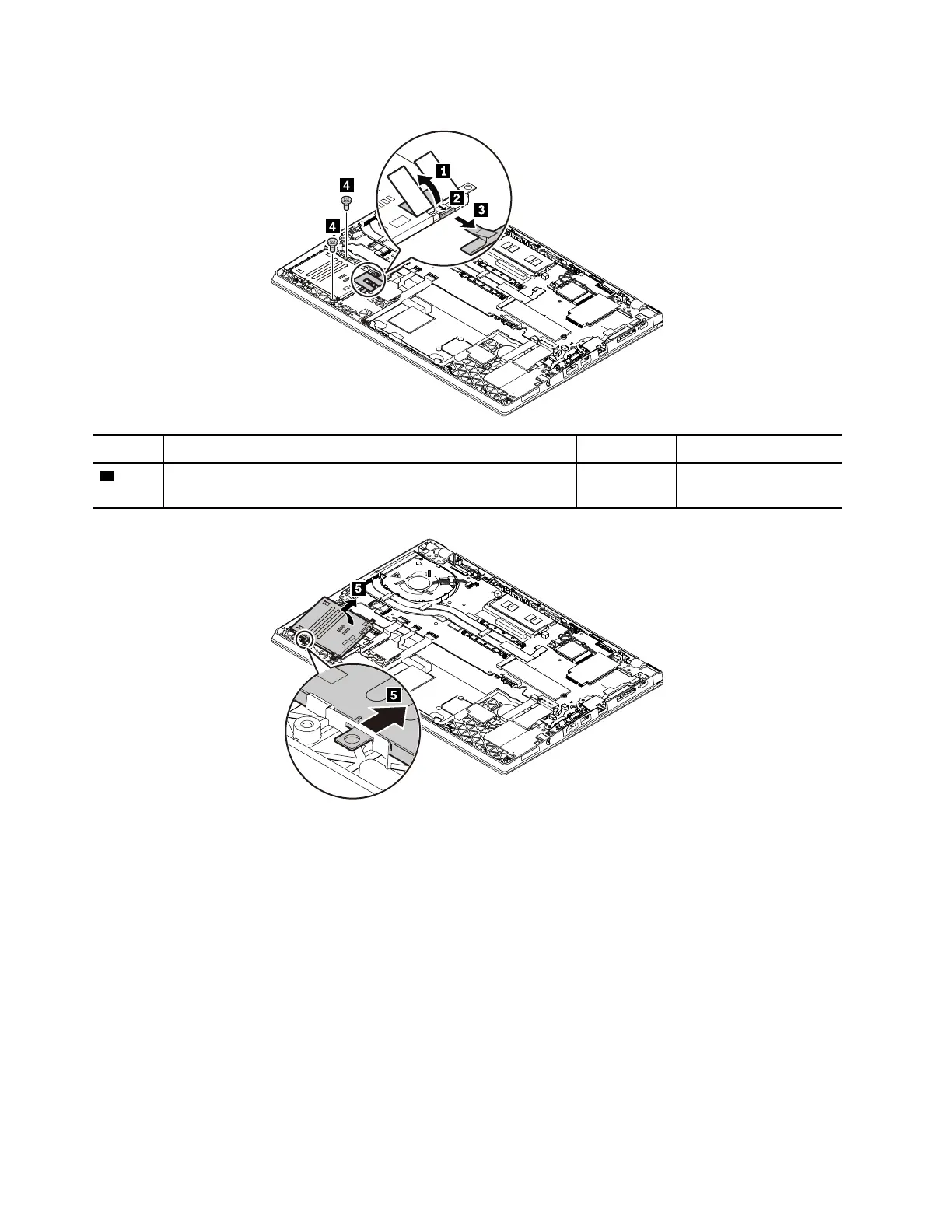

Removal steps of the smart card reader assembly
Step Screw (quantity) Color
Torque
4
M2 × 2.2 mm, flat-head, nylon-coated (2)
Black 0.181 Nm
(1.85 kgf-cm)
When installing:
Ensure that the connector is attached firmly.
