THOMSON 510059 - General Connection; 12 V Connection

7
EN
EN
www.mythomson.com
12-24V UNIVERSAL SOLAR KIT
D - GENERAL CONNECTION
Depending on how long the batteries have been stored in the warehouse, it may be necessary to leave the
system to charge for several days (preferably sunny days) before being able to use the gate motor drive.
The solar power kit allows you to complete an average of 10 open/close cycles a day.
!!! NOTE!!!
MAKE SURE YOU MAINTAIN THE CORRECT CONNECTION POLARITY AT ALL TIMES

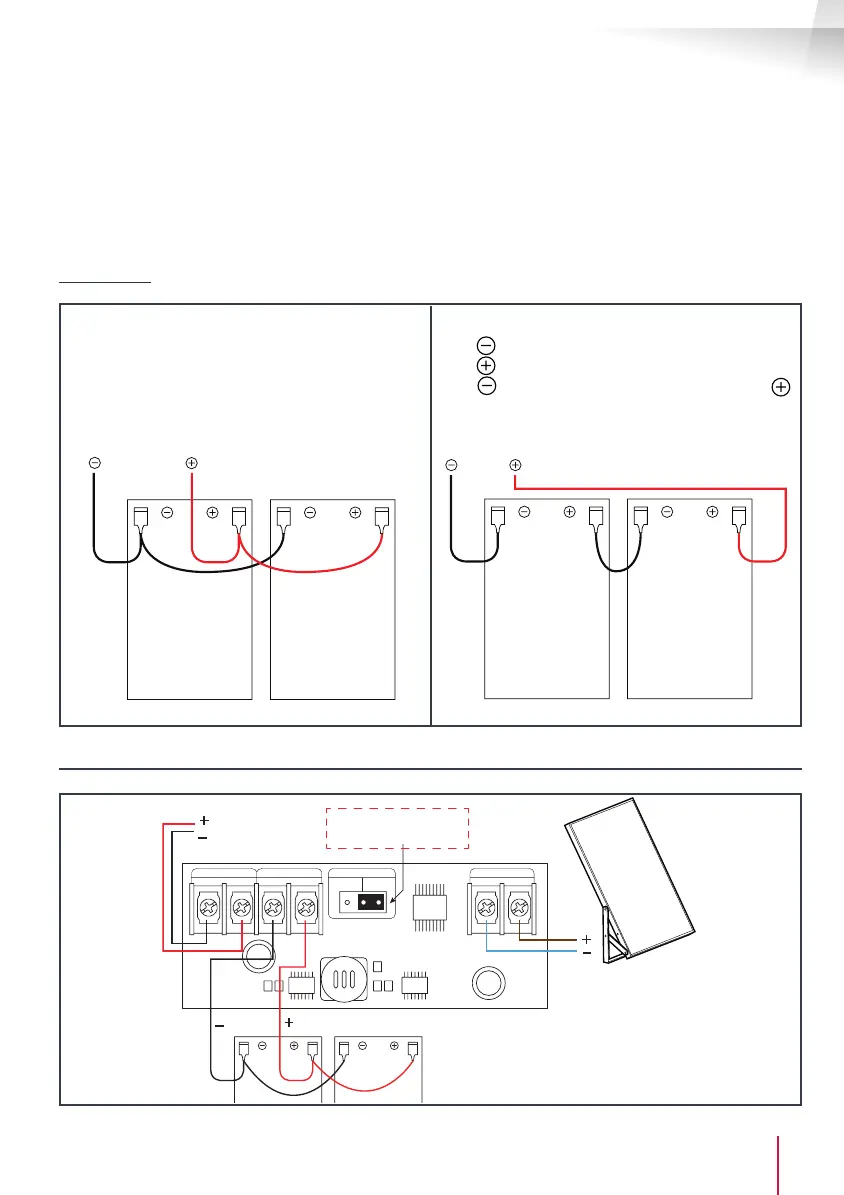

REMINDER:
Batteries
To the regulator
To the regulator
Batteries
1 2
12V parallel connection
The red terminals connect together.
The black terminals connect together.
24V serial connection
The terminals of battery 1 to the regulator.
The terminals of battery 2 to the regulator.
The terminals of battery 2 connect to the
terminal of battery 1.
1 - 12V CONNECTION
MOTORISATION BATTERYVOLTA GE
24V 12V
SOLAR IN
MOTORISATION BATTERYVOLTA GE
24V 12V
SOLAR IN
2 x 1.5mm2 (1.5m max.)
to automatic
opener
battery power
SET THE SWITCH
TO 12V
2 x 0.75mm2 (5m max.)
batteries
