THOMSON 510059 - 24 V Connection; Connection with Avidsen Circuit Board

12-24V UNIVERSAL SOLAR KIT
EN
8
www.mythomson.com
D - GENERAL CONNECTION

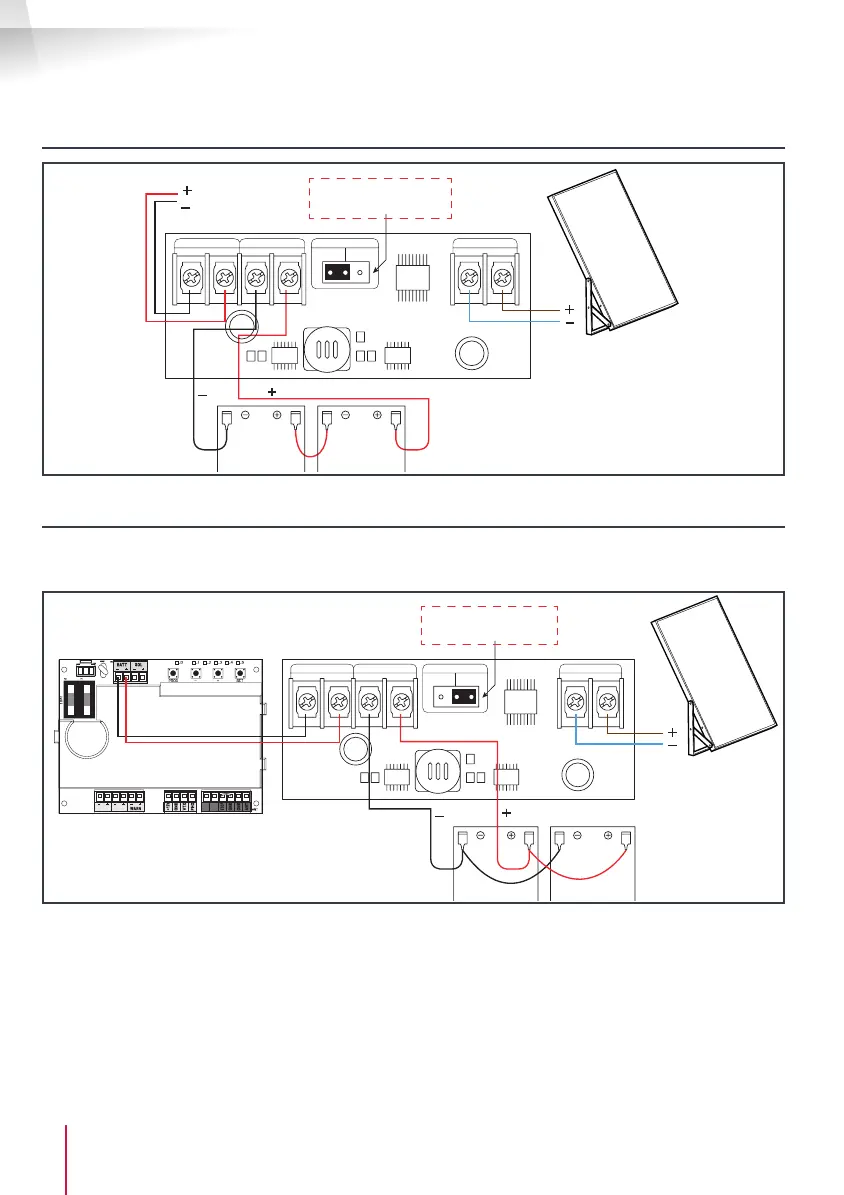

2 - 24V CONNECTION
MOTORISATION BATTERYVOLTA GE
24V 12V
SOLAR IN
MOTORISATION BATTERYVOLTA GE
24V 12V
SOLAR IN
2 x 1.5mm2 (1.5m max.)
to automatic
opener
battery power
SET THE SWITCH
TO 24V
2 x 0.75mm2 (5m max.)
batteries
3 - CONNECTION WITH AVIDSEN CIRCUIT BOARD
12V CA2B9TRAC/TRAR/SLDTR Parallel battery connection
Do not connect anything to card’s GROUND - /+
MOTORISATION BATTERYVOLTA GE
24V 12V
SOLAR IN
M1 M2
2B 1B
SET THE SWITCH
TO 12V
batteries
