12-24V UNIVERSAL SOLAR KIT
D - GENERAL CONNECTION

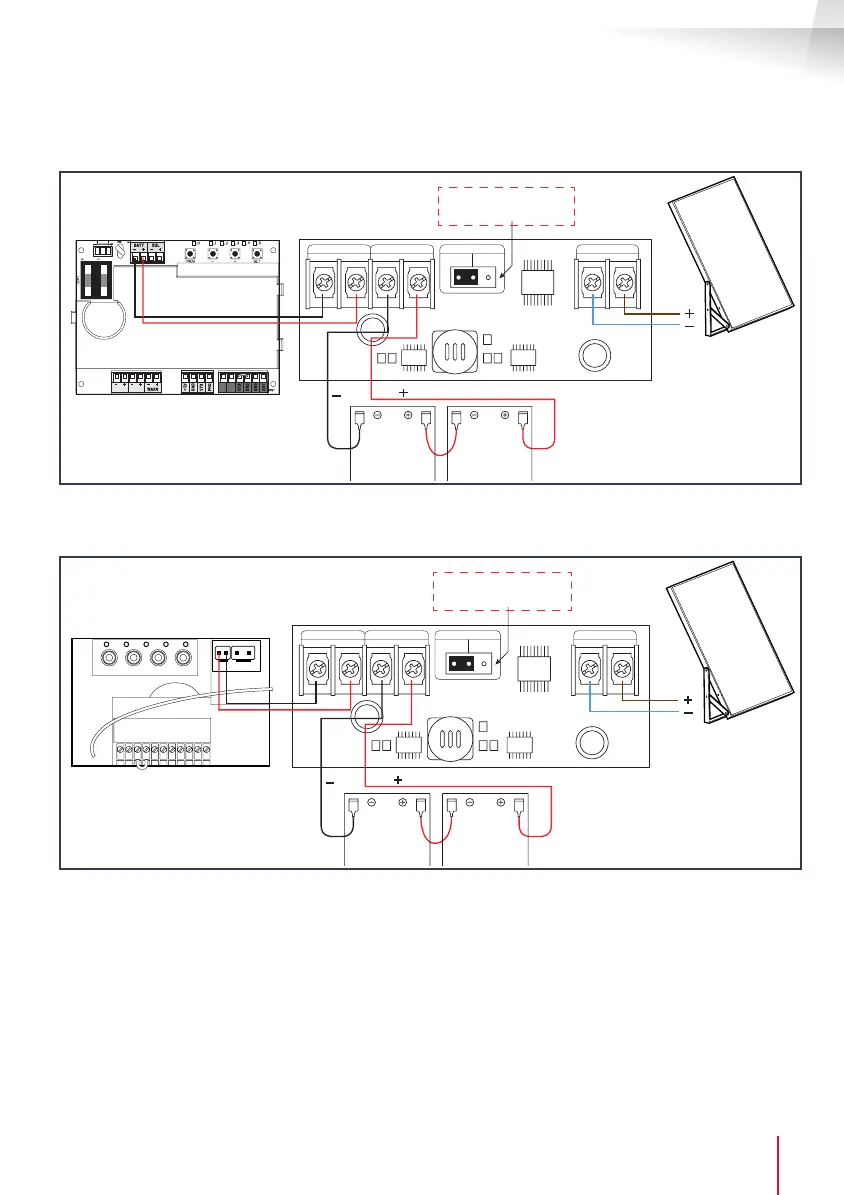

24v CA2B9SLDR Serial battery connection
Do not connect anything to card’s GROUND - /+
MOTORISATION BAT TERYVOLTA GE
24V 12V
SOLAR IN
M1 M2
2B 1B
SET THE SWITCH
TO 24V
batteries
24vAVLO Serial battery connection
L0
PROG
OK
+
-
L1 L2 L3 L4
+
-
BATTRANS
GND GND PHO +24V M1- M2- M1+ M2+ warn- warn+ 2B
MOTORISATION BATTERYVOLTA GE
24V 12V
SOLAR IN
SET THE SWITCH
TO 24V
batteries
