18.6.1. PRINTED CIRCUIT BOARD USER INTERFACES
The TSC 9 has the following user interface items located on the printed circuit
board.
18.6.1.1. Customer Interface Control Terminal Block
All control wiring connections are made directly on the TSC 9 Transfer
controller. A removable plug-in clamp screw terminal block is provided at the

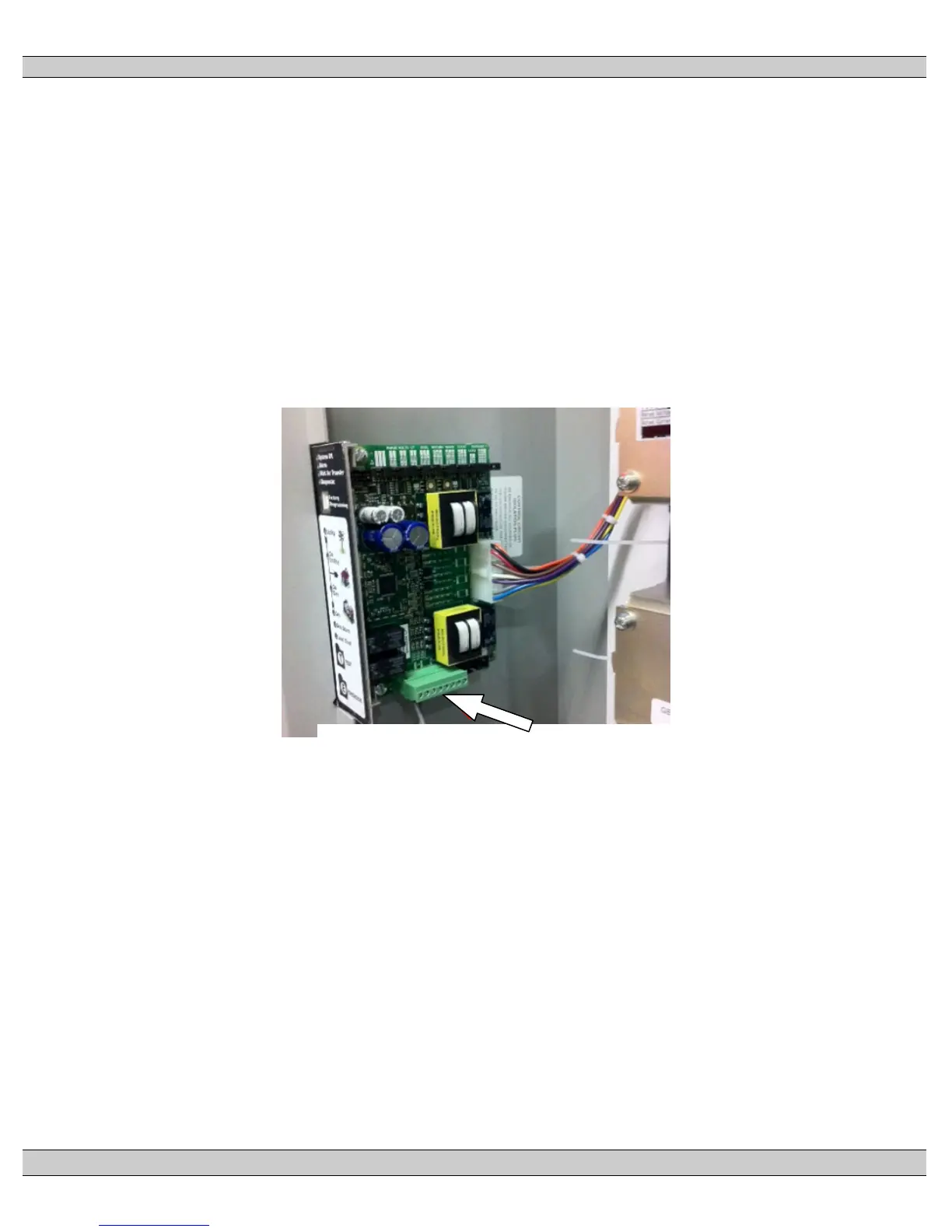

bottom end of the controller (see photo below)
Terminals are provided for the following control features: Refer to wiring
diagram shown below for connection numbers.
• Engine Start Stop (dry contact output)
• Load Shed (dry contact output)
• Alarm Output (solid state output)
• Remote Test Input (dry contact input)
CONTROL TERMINAL BLOCK
