© 2013 Thorlabs GmbH102
DCx Cameras
3.4.2.7.5 Color

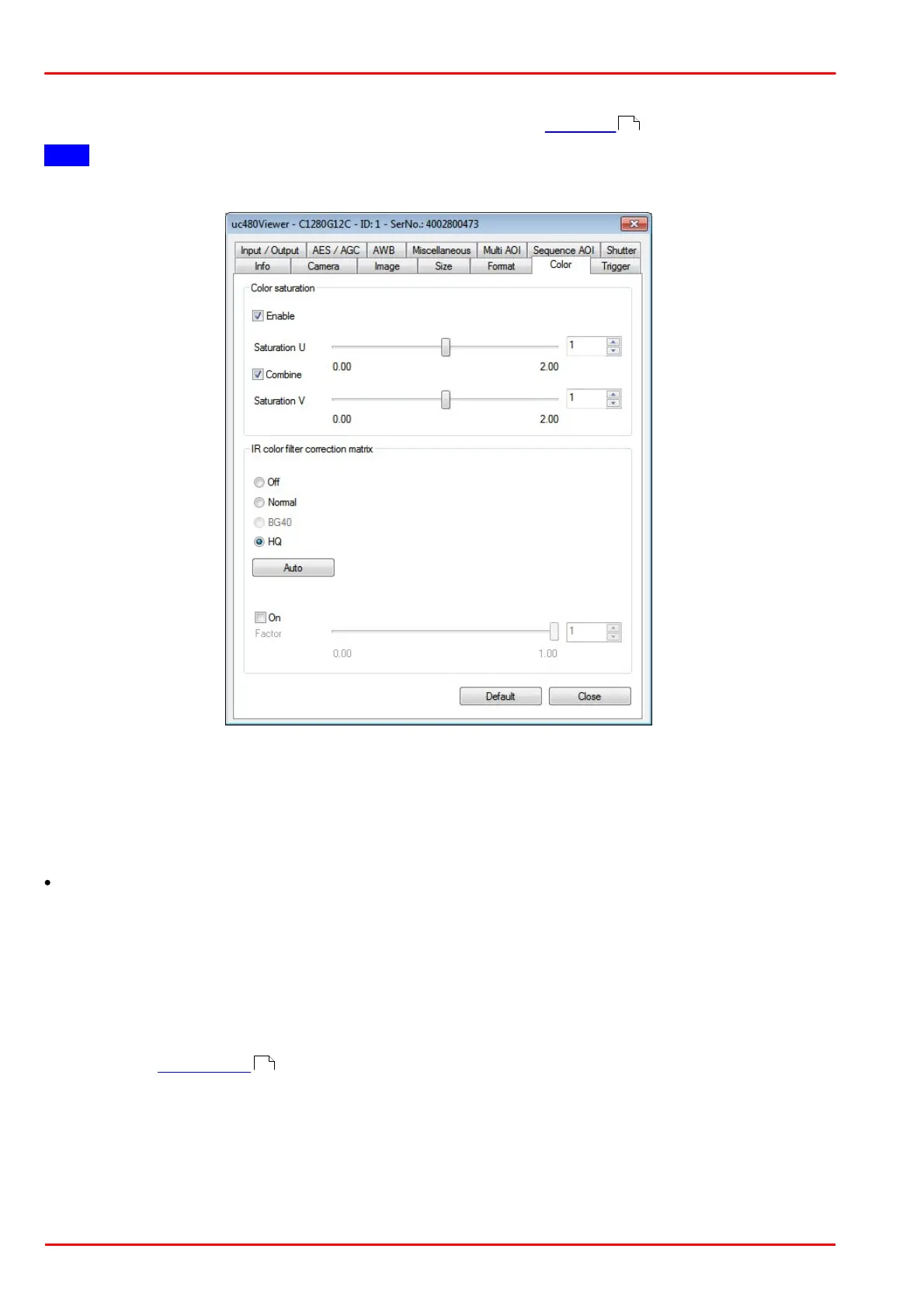

This tab provides color rendering settings for your DCx camera (see also Color filter ).
Note
This tab is only available if a color camera is opened in the uc480 Viewer.
Color saturation
This function enables and configures color saturation control.
In the YUV format, color information (i.e. the color difference signals) is provided by the U and V channels. In the U
channel they result from the difference between the proportion of blue and Y (luminance), in the V channel from the
difference between the proportion of red and Y. For the use in other color formats than YUV, U and V are converted
using a driver matrix.
Combine
Selecting this check box synchronizes the two "Saturation U" and "Saturation V" sliders.
IR color filter correction matrix
When using color cameras with IR filter glass, you need to set the appropriate color correction matrix to ensure
correct color rendering. The driver detects the IR filter type and sets this value automatically ("Auto" button). You
can also select the correction matrix manually.
Sensor color correction
This function corrects the color values of a pixel. The colors are rendered more accurately after the color crosstalk
of the individual Bayer pattern filters has been eliminated by the color correction. The color correction factor is
stepless adjustable between 0 (no correction) and 1 (full correction).
Activating the sensor color correction may increase CPU load.
Default
Click this button to reset all parameters to the model-specific defaults.
26
26
