© 2013 Thorlabs GmbH32
DCx Cameras

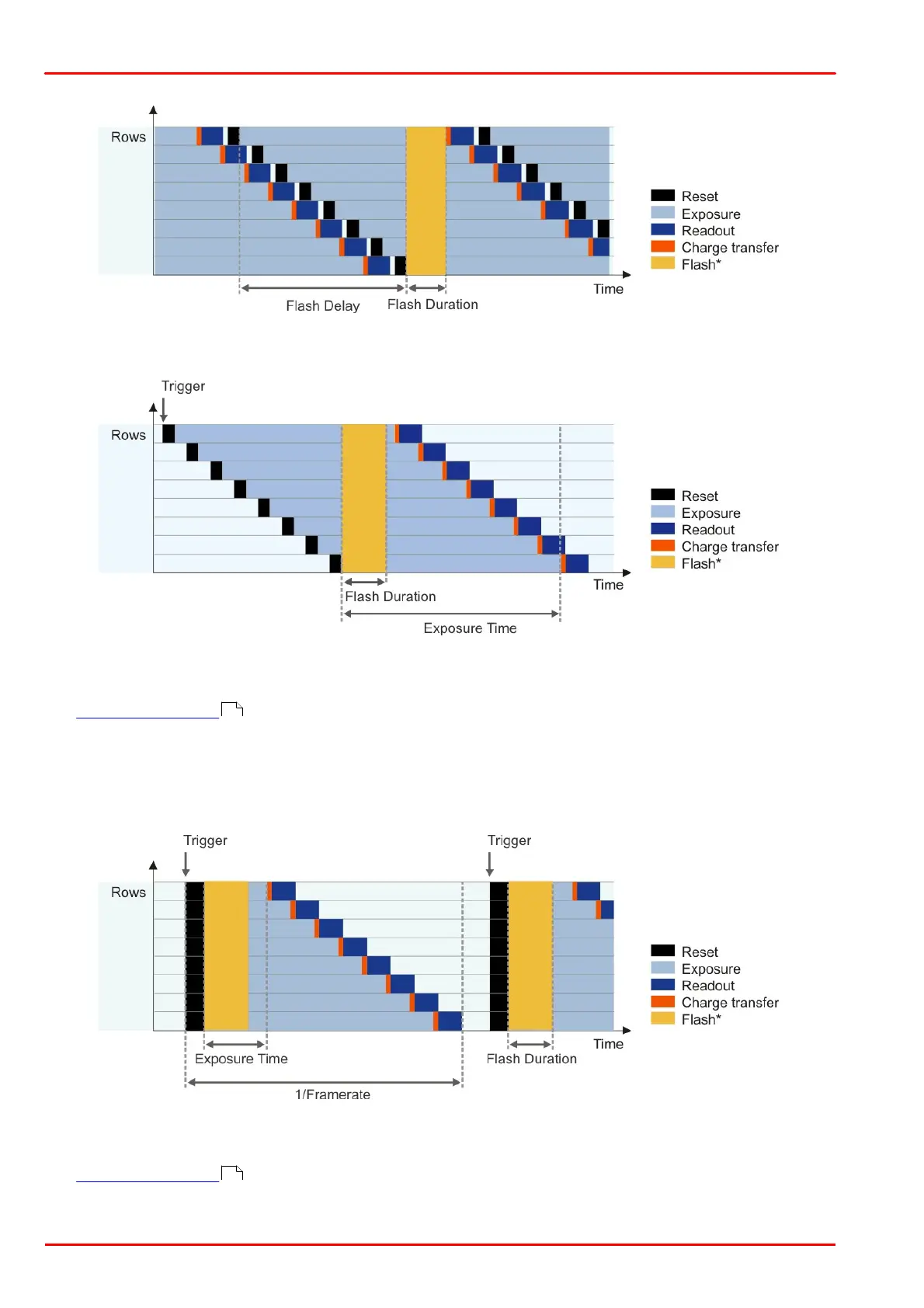

Rolling shutter sensor in live mode with global flash window
Rolling shutter sensor in triggered mode with global flash window
* Optional flash function. The start time and duration are defined by the flash delay and duration parameters (see
also Camera settings: I/O ).
Rolling shutter with global start
Some rolling shutter sensors also provide a global start mode, which starts exposure of all rows simultaneously
(see illustration). For best results, use a flash for this mode. No light is allowed to fall on the sensor outside the
flash period because otherwise the image brightness will be distributed unevenly.
Rolling shutter sensor in trigger mode with global start function
* Optional flash function. The start time and duration are defined by the flash delay and duration parameters (see
also Camera settings: I/O ).
