11
K10CR1 Cage Rotation Stage
The casing of the K10CR1 is fitted with a series of holes for mounting the unit in a
30 mm cage system (see Fig. 3.1 and Fig. 3.3).
The K10CR1A3 adapter plate allows the stage to be fitted within a 60 mm cage
system. Using this adapter, the stage can be moved into and out of the cage system
quickly and easily, allowing optics to be changed without disassembly of the cage
structure.
The stage can also be used with our K6A1 platform mount (see
Fig. 3.3
) which allows
a prism or other optical device to be mounted to the rotating platform..

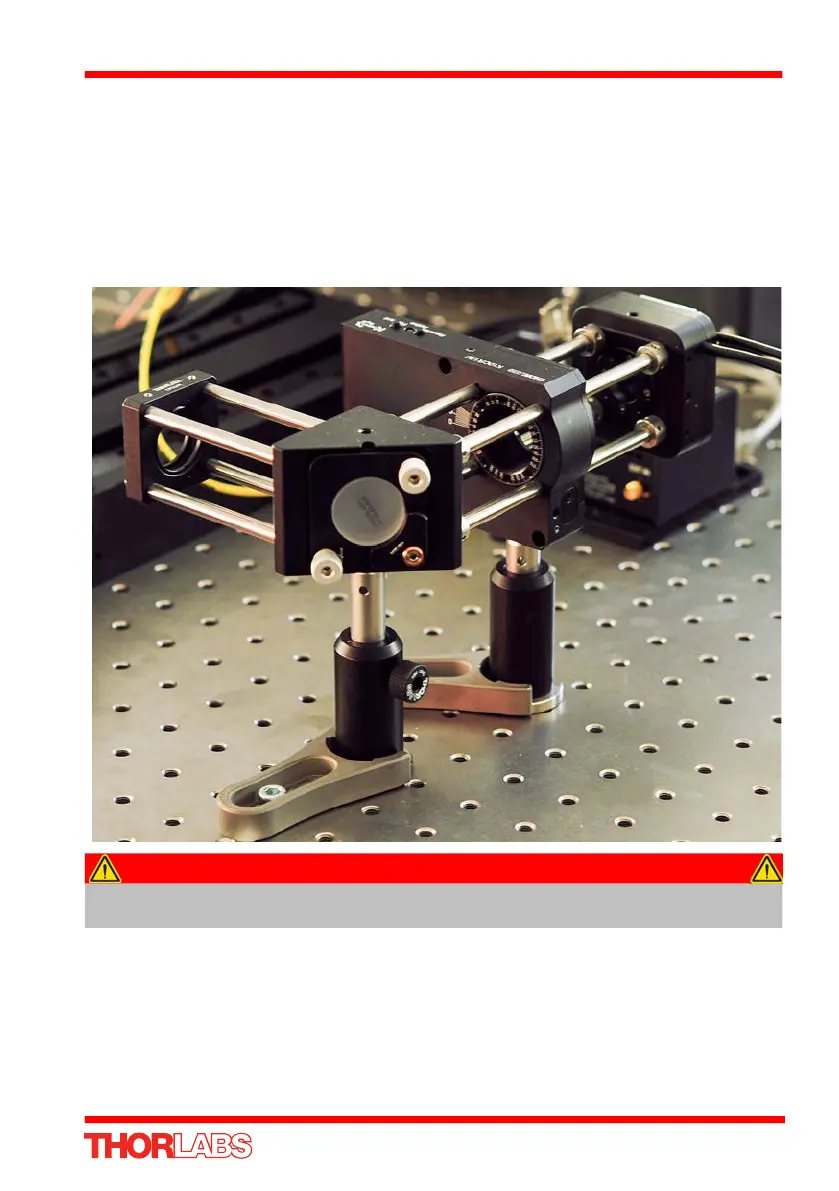

Fig. 3.1 K10CR1 Mounted in a 30 mm Cage System
Caution
When mounting components, or fitting the stage within an application, do not
apply excessive pressure to the moving platform.
