THORLABS PCS-6000 Series User Manual

Rev B, January 10, 2020 Page 7
PCS-6300
This configuration has three axes:
● Axis 1: Front to back
● Axis 3: Vertical
● Axis 4: Approach
All three axes have motorized linear stages. Axis 1 and Axis 3 have 150 μm
piezo elements while Axis 4 has 300 μm piezo elements. In addition, there are
two rotary stages- one that rotates in the horizontal plane and on in the vertical
plane.

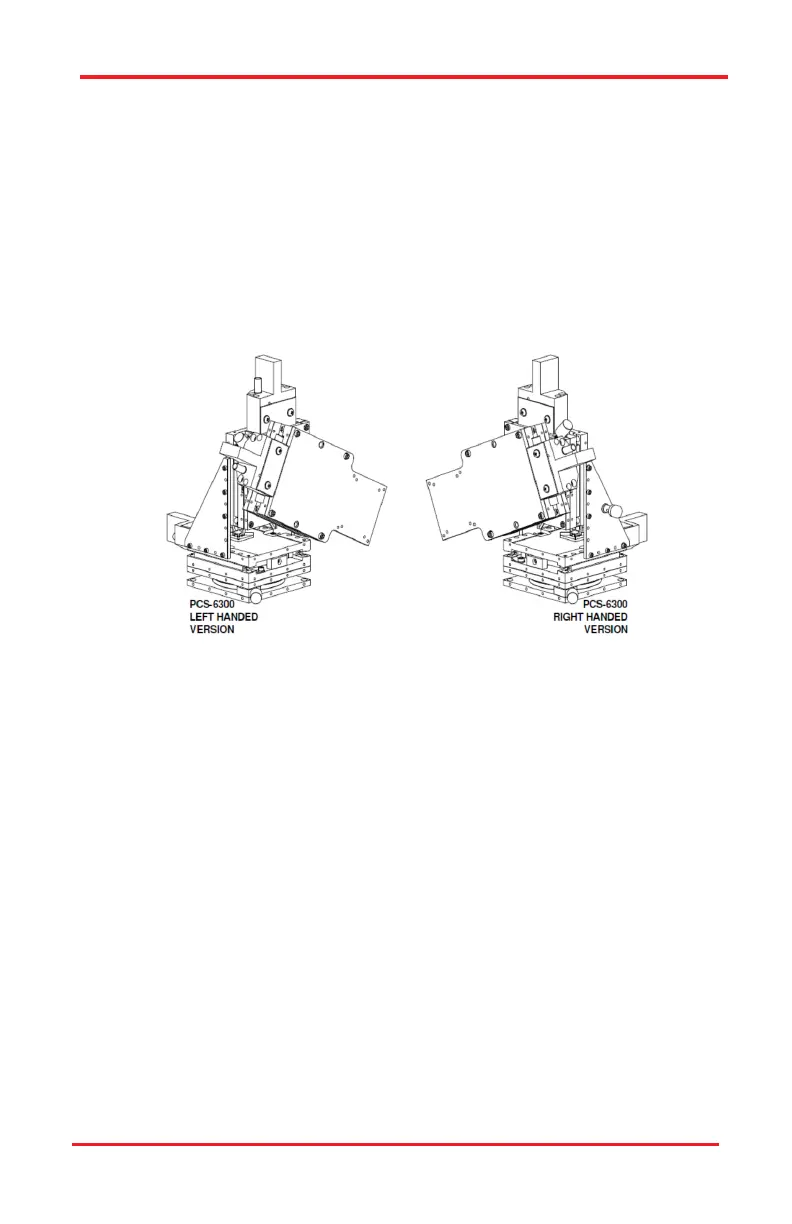

Figure 3–5 PCS-6300
PCS-6400
This configuration has three axes:
● Axis 1: Front to back
● Axis 3: Vertical
● Axis 4: Approach
All three axes have motorized linear stages with 300 μm piezo elements. In addi-
tion, there are two rotary stages- one that rotates in the horizontal plane and one
in the vertical plane.
PCS-6000 Series Motorized Patch-Clamp Micromanipulator Chapter 3: Description
