THORLABS PCS-6000 Series User Manual

Page 24 TTN200645-D02
PCS-6000 Series Motorized Patch-Clamp Micromanipulator Chapter 7: Maintenance

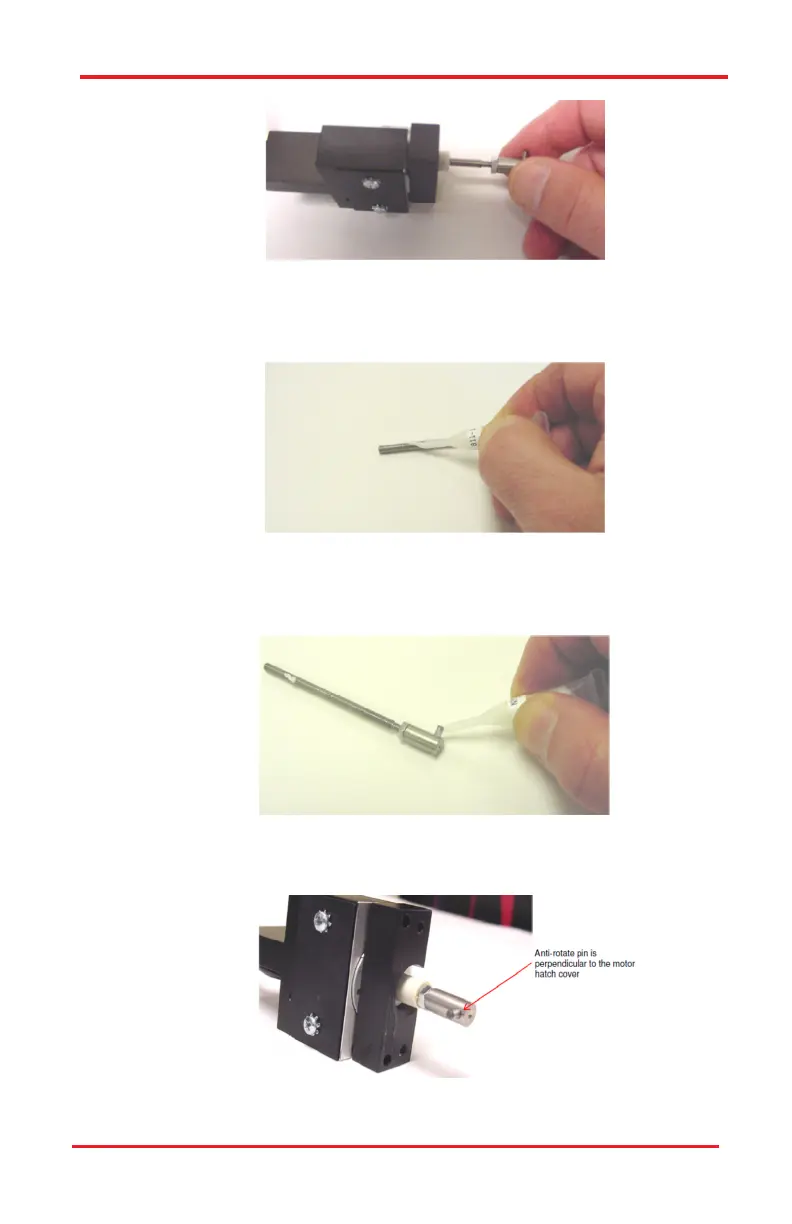

Figure 7–3 Remove the Screw by Turning Counterclockwise
7. Apply lubricant to the screw. Only a small bead of lubricant is needed
along the central 1" of the shaft.
Figure 7–4 Apply Lubricant Along Central 1" Length of Motor Shaft
8. Apply a small amount of lubricant to the sides of the anti-rotate dowel
pin.
Figure 7–5 Apply Lubricant to Anti-rotate Dowel Pin
9. Screw shift into motor. Note that the shaft is screwed in all the way.
Figure 7–6 Anti-rotate Until Fully Retracted and Angled for Assembly
